Air Power Gear Motor GAST 4 AM Air Gear (Air-Powered Gearmotors) high quality products imported from the United States. For applications that do not need Sparks from electricity Or working to prevent an explosion. Continuing to work longer Hours of work over the electric motor. Eliminates motor burns You can adjust the duty cycle of the motor by increasing or decreasing the air pressure. Because of the wind-powered motor, the motor can operate in areas where air temperatures have. Resistant temperature was as high as 250 ° F (120 ° C) does not require power to adjust the speed of the motor, the wind does not worry about the ignition of electric inadvertently used tasks such as feeding, stirring colors. , stirring thinner And much more

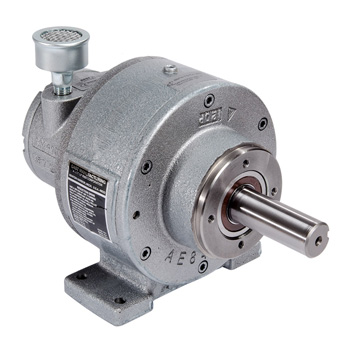

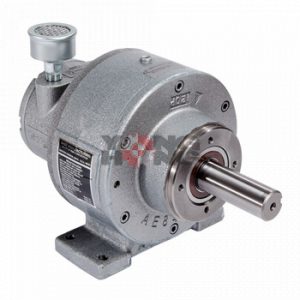

Air Power Gear Motor GAST 4AM
GAST 4AM Series GAST 4AM-GR20 (GM),GAST 4AM-GR25 (GM),GAST 4AM-CB25 (GM)
GAST 4AM-GR20 (GM)
GAST 4AM-GR25 (GM)
GAST 4AM-CB25 (GM)
GAST 4AM Series GAST 4AM-GR20 (GM),GAST 4AM-GR25 (GM),GAST 4AM-CB25 (GM)
| MODEL | GAST 4AM-RV-75-GR20 (10:1) | GAST 4AM-RV-75-GR25(15:1) | GAST 4 AM-70C-CB20 (20:1) | |
| Mount | FACE/FOOT Mounting | FACE/FOOT Mounting | BaseMounting | |
| Rotation | REVERSIBLE | REVERSIBLE | REVERSIBLE | |
| Vane | 4 | 4 | 8 | |
| Fitting | in | 1/4 NPT | 1/4 NPT | 1/4 NPT |
| Motor | HP | 1.26 hp | 1.25 | 1.17 |
| Max Speed | RPM | 300 | 200 | 150 |
| Torque@Max Speed | Nm | 31 | 45.2 | 55 |
| Speed@Max Torque | RPM | 20 | 20 | 15 |
| Max Torque | Nm | 72 | 72 | 83.6 |
| WxLxH | mm | 156x294x169 | 156x294x169 | 226x358x165 |
