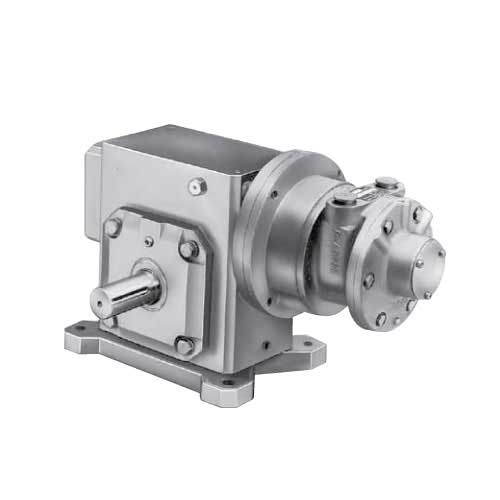

Air Power Gear Motor GAST 6AM
GAST Air Gear Motor, Model 6 AM series, imported from America, small size, compact, can adjust the speed. Which can test around Causes to reduce the speed but increase the torque In addition, it does not cause sparks. Can work in flammable areas where the rotation direction is bi-directional[:]
Air Power Gear Motor GAST 6AM
GAST 6AM Series GAST 6 AM-CB10(GM),GAST 6 AM-DB20(GM),GAST 6AM-GB40 (GM)
GAST 6 AM-CB10(GM)
- Can test up to 10: 1
- The characteristics of the wind gear motor are base mounting.
- Can be equipped with an additional shaft
- Comes with muffler
- Does not cause sparks
- Easy to move and install
GAST 6 AM-DB20(GM)
- Can test up to 20: 1
- The characteristics of the wind gear motor are base mounting.
- Can be equipped with an additional shaft
- Comes with muffler
- Does not cause sparks
- Easy to move and install
GAST 6AM-GB40 (GM)
- Can test up to 40: 1
- Gear motor characteristics: Base mounting
- Can be equipped with an additional shaft
- Comes with muffler
- Does not cause sparks
- Easy to move and install
GAST 6AM Series Air Power Gear Motor Specifications
GAST 6AM Series GAST 6 AM-CB10(GM),GAST 6 AM-DB20(GM),GAST 6AM-GB40 (GM)
| MODEL | GAST 6AM-22A-CB10 (10:1) | GAST 6AM-22A-DB10 (20:1) | GAST 6AM-22A-GB40 (40:1) | |
| Mounting | BaseMounting | BaseMounting | BaseMounting | |
| Rotation | REVERSIBLE | REVERSIBLE | REVERSIBLE | |
| Vane | 8 | 8 | 8 | |
| Fitting | in | 1/2 NPT | 1/2 NPT | 1/2 NPT |
| Motor | HP | 3.5 | 2.8 | 2.1 |
| Max Speed | RPM | 300 | 150 | 75 |
| Max Torque | Nm | 110 | 180 | 275 |
| WxLxH | mm | 226x397x220 | 269x442x254 | 276x491x277 |
