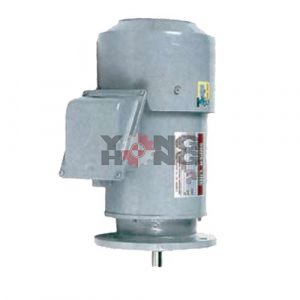

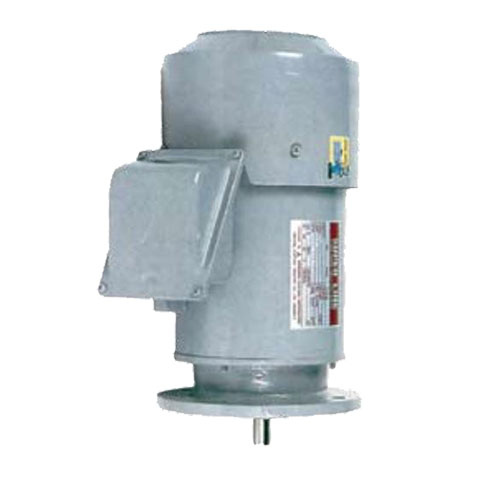

MITSUBISHI Electric Motor SF-JRVB Series Vertical Type, 3 PHASE flange type, covering 380V, size from 1 / 4 HP – 10 HP, speed 1450 RPM (4P), 2820 RPM (2P) and slow cycle type 950 RPM (6P) Totally Enclosed Fan Cooled. Type, IP 55 Degrees of Protection (Class F). The motor is IP 55 (Ingress Protection) for both indoor and outdoor applications.
MITSUBISHI Electric Motor SF-JRVB Series Vertical Type Clamped flange 380V. 3 PHASE Size 1/4 to 10 horsepower, encased in accordance with JIS (Japan Industrial Standard), high quality According to the IEC (Internationa Electrotechical Commission) type, quality induction motors With the technology of the Mitsubishi motor, it has high torque. Also has a smooth speed (Smooth Speed) working at full power For maximum efficiency With a balanced design Brake Motor therefore operate quieter than conventional motors while working. Suitable for mixers, assembling, driving machines Flange installation, convenient, secure, alignment, not shaking, reduce wear The motor frame is designed to prevent foreign objects entering the motor with the standard Totally Enclosed Fan Cooled Type.
| MODEL | Frame No. | Output (kW) | Brake Type | Approximate Weight (kg) | Approximate packing dimensions | Packing Weight | |||
| 4-Pole | 6-Pole | 4 pole | 6 Pole | LxWxH | 4-Pole | 6-pole | |||
| SF-JRVB | 63M | 1/4 (0.2) | TB-2 | 9 | 368x280x226 | 10 | |||
| 71M | 1/2 (0.4) | 1/4 (0.2) | TB-4 | 12 | 12 | 368x280x226 | 13 | 13 | |
| 80M | 1 (0.75) | 1/2 (0.4) | TB-7.5 | 18 | 18 | 425x280x226 | 19 | 19 | |
| 90L | 2 (1.5) | 1 (0.75) | TB-15 | 27 | 26 | 507x401x357 | 34 | 33 | |
| 100L | 3 (2.2) | 2 (1.5) | TB-22 | 35 | 37 | 650x450x370 | 44 | 46 | |
| 112 M | 5 (3.7) | 3 (2.2) | TB-37 | 47 | 49 | 650x450x370 | 56 | 58 | |
