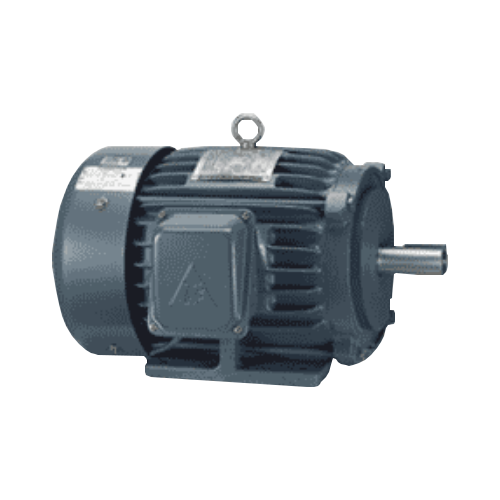

Brake Motors TECO
Features:
– Compact design: less space and weight, easy to install and maintain.
– Simplified brake construction:less parts, high reliability, easy to adjust the gap to control braking force.
– DC brake, which is normally spring applied, electrically released, provides safely brake.
– Low noise.
– Low wear rate of braking lining.
| Standard | Mounting | Voltage | Enclosure | Motor type | Description |
| IEC,BS, AS,JIS, JEC,CNS | Horizontal | LV | TEFC | AEALZB | Aluminum Frame |
| Vertical | AEAUZE | ||||
| AEAUZF | |||||
| Horizontal | ETEFDA | Cast Iron Frame |
Type Code: AEALZB / AEAUZE / AEAUZF
Aluminum Frame Induction Brake Motors
Low Voltage, TEFC, AS, BS Design B
Output 0.12 ~ 18.5 KW
Pole (Speed) 2 ~ 6
Voltage 380V, 400V, 415V
Frequency (Hz) 50
Frame Size 63 ~ 132M
Protection Enclosure IP 55
Design Standards: BS, AS
Environment: non-hazardous
Stator Insulation: Class F Insulation, SF 1.0
Type Code: ETEFDA / ETEFDD / ETTFDA / ETVFDA / ETVFDD TOP
Low Voltage Squirrel Cage Brake Motors
Output 1/4 ~ 30 HP
Pole (Speed) 4, 6
Voltage below 600V
Frequency (Hz) 50, 60
Frame Size 63 ~ 180M
Protection Enclosure IP 44 (main motor), IP 22 or IP 44 (Brake Set)
