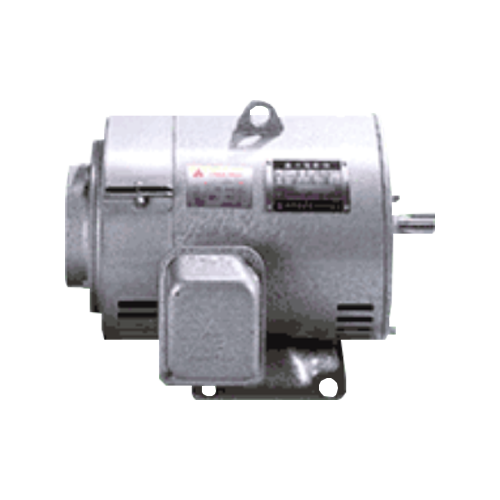

DC Motors TECO

DC Motors TECO

Features:

– Direct Current motors are ideally suited to a multitude of industrial applications in which high torque and variable speed are required.



Market Served

1. Metals (Steel Rolling Mills, Aluminum Rolling Mills)
2. Chemicals (Polyester Film, Extruder, Agitators)
3. Mining (Hoists, Draglines, Sag Mills)
4. Paper Machinery, Sugar Industry
5. Special Applications



Type of DC Motors

1. Series
2. Shunt
3. Compound



Standards:

BS5000, IEC, NEMA



Supply Scope

1/2 ~ 3,000 HP (0.4 ~ 2,200 KW)
500 ~ 1,800 RPM (Base Speed)



Enclosure

IP 23, IP 44, IP 54, IP 55



Cooling

IC06, IC37, IC0666, ICW37A86



DC Controllers / Control Panels

Digital or Analogs, 2Q or 4Q,
Armature Current Ratings (Adc): 3A ~ 2700A,
Armature Voltage: 150 ~ 750 Vdc[:en]

DC Motors TECO

Features:

– Direct Current motors are ideally suited to a multitude of industrial applications in which high torque and variable speed are required.



Market Served

1. Metals (Steel Rolling Mills, Aluminum Rolling Mills)
2. Chemicals (Polyester Film, Extruder, Agitators)
3. Mining (Hoists, Draglines, Sag Mills)
4. Paper Machinery, Sugar Industry
5. Special Applications



Type of DC Motors

1. Series
2. Shunt
3. Compound



Standards:

BS5000, IEC, NEMA



Supply Scope

1/2 ~ 3,000 HP (0.4 ~ 2,200 KW)
500 ~ 1,800 RPM (Base Speed)



Enclosure

IP 23, IP 44, IP 54, IP 55



Cooling

IC06, IC37, IC0666, ICW37A86



DC Controllers / Control Panels

Digital or Analogs, 2Q or 4Q,
Armature Current Ratings (Adc): 3A ~ 2700A,
Armature Voltage: 150 ~ 750 Vdc
