Electric Motor ABB M2BAX Series
Electric Motor ABB M2BAX Series is designed with wound rotor construction, enhancing its capabilities when used in conjunction with ABB inverters. It is an energy-efficient motor with low power consumption, making it cost-effective. Suitable for general industrial applications.
Facebook
Twitter
Email
Print
Electric Motor ABB M2BAX Series
- Motor manufactured according to IEC standard in accordance with European standards.
- IP55 protection level, waterproof and dustproof very well
- insulation class F, inside the motor can withstand temperatures up to 155 degrees
- insulation class H, inside the motor can withstand temperatures up to 180 degrees
- Electric motor using electricity 380-440V 50Hz, 440-480V 60Hz
- cast iron frame motor
- Electric motor can be used continuously for 24 hours (S1 duty)
- Frame size IEC 71-355 standard, available for both flange motor (B5) and stand motor (B3)

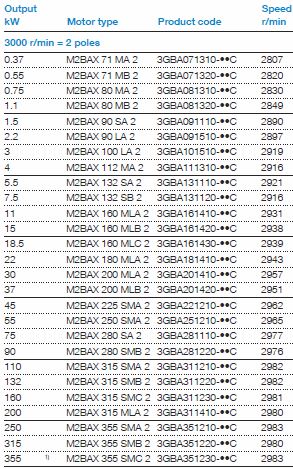

Technical data IE2 cast iron motors, 3000 r/min
IP 55 – IC 411 – Insulation class F, temperature rise class B IE2
efficiency class according to IEC 60034-30-1; 2014

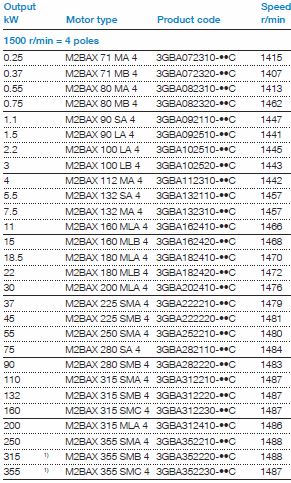

Technical data IE2 cast iron motors, 1500 r/min
IP 55 – IC 411 – Insulation class F, temperature rise class B IE2
efficiency class according to IEC 60034-30-1; 2014

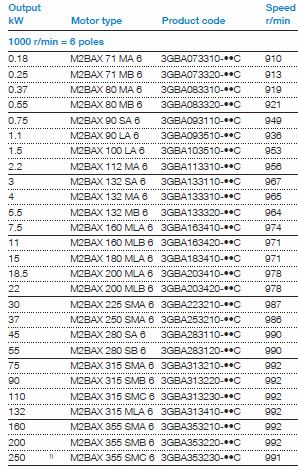

Technical data IE2 cast iron motors, 1000 r/min
IP 55 – IC 411 – Insulation class F, temperature rise class B IE2
efficiency class according to IEC 60034-30-1, 2014
