Gear Motor MITSUBISHI MET-TGD Series
MITSUBISHI Gear Motor MET-TGD Series Horizontal Type, 3 PHASE Tripod, Voltage 380 V. Size 1 / 2HP – 3HP, Ratio 1: 3 – 1:60, 1 / 2HP – 3HP (L) 220
[vc_row][vc_column][vc_column_text]

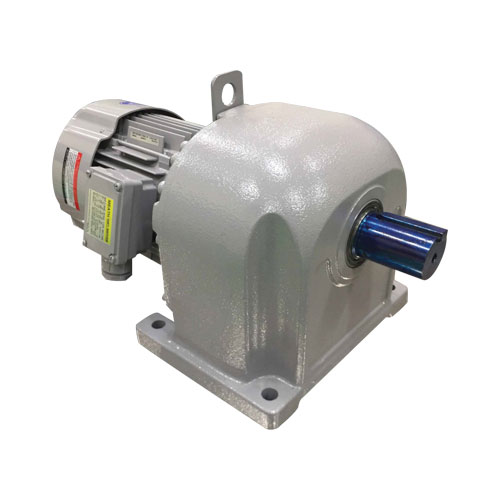

Gear Motor MITSUBISHI MET-TGD Series
[/vc_column_text][vc_column_text]Gear Motor MITSUBISHI MET-TGD Series is a high efficiency gear motor for Working in a variety of industries, from conveyor equipment Transportation to food processing equipment Mitsubishi’s MEAT gear motor is highly regarded for its capability, low operating noise and low noise. And compact and durable Production controlled by European production standards do not contain 6 hazardous substances specified in the regulation of RoHS.[/vc_column_text][vc_column_text]QUALIFICATION
- Hydrodynamic systems allow the seal to withstand the rotation cycle of high-frequency cycles by 100 times better than previous models.
- The frame of the motor has high efficiency cooling. With a metal motor frame With RGC technology, allowing heat dissipation more conveniently
- Technology and precision cutting (Round Bar Gear Cutting: Gear Cutting after Heat Treatment) makes the motor and gears compact and lightweight, suitable for installation with limited space.
- With RGC technology and precision in cutting gears (1st gear) and 2nd gear, the operation of the sound is lower.
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
SPECIFICATIONS DATA MITSUBISHI MET-TGD
[/vc_column_text][vc_column_text]
| ITEM | SPECIFICATIONS | |
| Phase | Three phase | |
| Voltage & Frequency | 220/380 ̴ 415V 50Hz, 220/440V 60Hz | |
| Enclosure Construction | Totally enclosed fan-cooled | |
| Degrees of Protection | IP55 | |
| Mounting | Horizontal | |
| Frame Material | Aluminium | |
| Power Transmission System | Direct-couple or belt driven | |
| Direction of Rotation | Counterclockwise (CCW). Viewed from shaft end side | |
| Thermal Class | Class F (155˚C) | |
| Temperature Rise | Class B (80K) | |
| Rating | S1 (continuous) | |
| Circumstance Conditions | Ambient Temperature | -20 ̴ +40˚C |
| Ambient Humidity | 95% relative humidity or less | |
| Operating Altitude | Up to 1,00m above sea level | |
| Environment | No bursting, erosive gas or vapor | |
| Connection Type | Terminal block | |
| Coating | Polyurethane | |
| Color | N-7 (light gray) | |
| Conformed Standard | IEC 60034-1, JEC-2137-2000 | |
