Electric Motor MITSUBISHI SB-JR IP22 Series
Electric Motor MITSUBISHI SB-JR IP 22 Series imported from foreign countries. Motors are not covered in 1450 with voltage 220 / 380 V. power supply three kinds of lines (2 Pole, 4 Pole and 6 Pole) with sizes ranging from 1/2 HP – 10 HP.
Electric Motor MITSUBISHI SB-JR IP22 Series

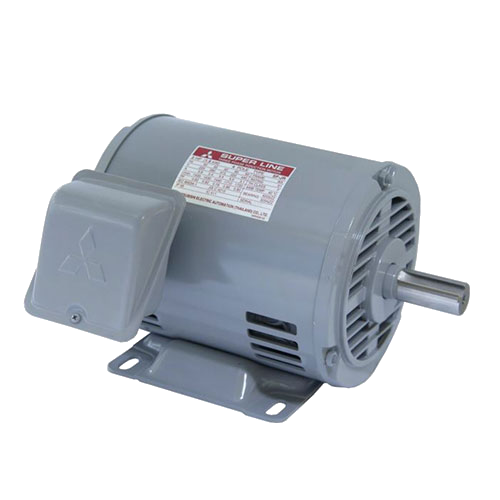

MITSUBISHI Super Series Case Electric Motor (SB-JR IP22 Series)
Is a high quality 1 phase 1 horsepower stepper Electric motor with JIS (Japane Industrial Standard) and IEC (Internationa Electrotechnical Commission). Lightweight when compared with other models High torque and also full power. And has a smooth speed (Smooth Speed), low noise while the motor is running Due to the balanced design Has a long service life And durable, suitable for use with Electric motor ventilation systems such as Installed to drive the ventilation fan Indoor or animal husbandry, in an open and closed house, using a fan system Ventilate the pump assembly including the conveyor system And connect with all this compressor equipment from Mitsubishi Designed to be easy and convenient to use in all forms.
SPECIFICATIONS DATA MITSUBISHI SB-JR IP22
| Model | Frame No. | Output HP (kW) | Fig. | Bearing No. | Approximate Weight (kg) | Packing Weight (kg) | |||||||
| 2-pole | 4-pole | 6-pole | Drive End | Opposite | 2-pole | 4-pole | 6-pole | 2-pole | 4-pole | 6-pole | |||
| MITSUBISHI SB-JR | 80M | 1 (0.75) | 1 (0.75) | 1/2 (0.4) | 1 | 6204ZZ | 6203ZZ | 9 | 11 | 11 | 10 | 10.8 | 12 |
| 90L | 2 (1.5), 3 (2.2) | 2 (1.5) | 1 (0.75) | 6205ZZ | 6204ZZ | 16, 16 | 16 | 16 | 17, 16 | 17 | 17 | ||
| 100L | – | 3 (2.2) | 2 (1.5) | 2 | 6206ZZ | 6205ZZ | – | 22 | 24 | – | 21.2 | 27 | |
| 112M | 5 (3.7) | 5 (3.7) | 3 (2.2) | 3 | 6207ZZ | 6206ZZ | 27 | 30 | 31 | 31 | 34 | 35 | |
| 132S | 7.5 (5.5), 10 (7.5) | 7.5 (5.5) | 5 (3.7) | 6308ZZ | 6207ZZ | 38, 42 | 40 | 41 | 42, 46 | 44 | 45 | ||
| 132M | – | 10 (7.5 | 7.5 (5.5) | 6308ZZ | 6207ZZ | – | 51 | 52 | – | 55 | 56 | ||

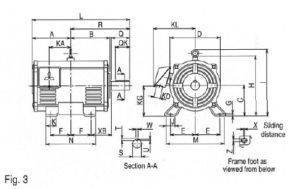

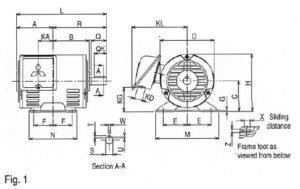

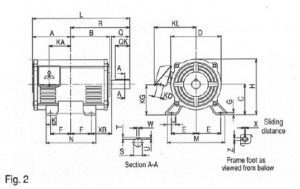

DIMENSIONS DATA MITSUBISHI SB-JR IP22
| Model | Frame No. | Fig. | Terminal Box | Shaft End | Approzimate Packing Dimension | |||||||||
| KA | KG | KD | KL | Q | QK | R | S | T | U | W | (LxWxH) | |||
| MITSUBISHI SB-JR | 80M | 1 | 39.5 | 63 | 27 | 144 | 40 | 32 | 140 | 19 j6 | 6 | 3.5 | 6 | 295x270x206 |
| 90L | 53 | 76 | 27 | 157 | 50 | 40 | 168.5 | 24 j6 | 7 | 4 | 8 | 350x280x350 | ||
| 100L | 2 | 65 | 86 | 27 | 157 | 60 | 45 | 193 | 28 j6 | 7 | 4 | 8 | 409x355x300 | |
| 112M | 3 | 69 | 101 | 27 | 168 | 60 | 45 | 200 | 28 j6 | 7 | 4 | 8 | 477x399x315 | |
| 132S | 75 | 118 | 27 | 185 | 80 | 63 | 239 | 38 k6 | 8 | 5 | 10 | 526x403x347 | ||
| 132M | 94 | 118 | 27 | 185 | 80 | 63 | 258 | 38 k6 | 8 | 5 | 10 | 526x403x347 | ||
| Model | Frame No. | Fig. | Motor | Terminal Box | ||||||||||||||||||||
| A | B | C | D | E | F | G | H | I | J | K | L | M | ML | N | X | XB | Z | KA | KG | KD | KL | |||
| MITSUBISHI SB-JR | 80M | 1 | 95 | 95 | 80 | 141 | 62.5 | 50 | 3.2 | 150.5 | – | – | – | 235 | 160 | – | 125 | 15 | 50 | 9 | 39.5 | 63 | 27 | 144 |
| 90L | 112.5 | 112.5 | 90 | 168 | 70 | 62.5 | 4 | 174 | – | – | – | 281 | 175 | – | 150 | 15 | 56 | 9 | 53 | 76 | 27 | 157 | ||
| 100L | 2 | 130 | 128 | 100 | 168 | 80 | 70 | 6.5 | 184 | – | 40 | 45 | 323 | 200 | 212 | 180 | 4 | 63 | 12 | 65 | 86 | 27 | 157 | |
| 112M | 3 | 136 | 135 | 112 | 190 | 95 | 70 | 6.5 | 220 | 254 | 40 | 45 | 336 | 230 | 242 | 180 | 4 | 70 | 12 | 69 | 101 | 27 | 168 | |
| 132S | 153 | 152 | 132 | 220 | 108 | 70 | 6.5 | 255 | 289 | 40 | 45 | 392 | 256 | 268 | 180 | 4 | 89 | 12 | 75 | 118 | 27 | 185 | ||
| 132M | 172 | 171 | 132 | 220 | 108 | 89 | 6.5 | 255 | 289 | 40 | 45 | 430 | 256 | 268 | 218 | 4 | 89 | 12 | 94 | 118 | 27 | 185 | ||
