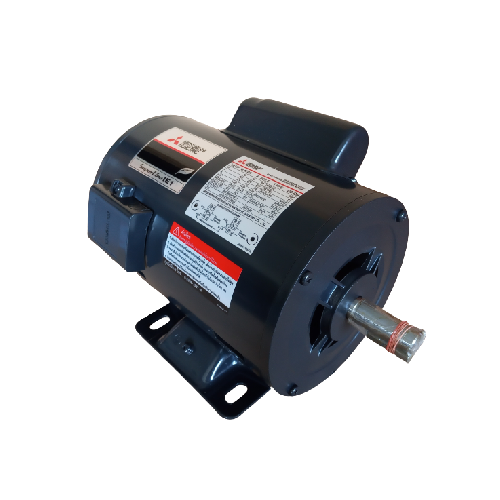

Electric Motor MITSUBISHI SC-QR Series
MITSUBISHI Electric Motor SC-QR Series Horizontal Type, 1PHASE Bracket, Cover type, Voltage 220V. Motor is CAPACITOR START, size from 1 / 4HP – 1 / 2HP, speed 1450 RPM (4P), IP 20 standard.
Electric Motor MITSUBISHI SC-QR Series
Electric Motor MITSUBISHI SC-QR 1/4 ,SC-QR 1/3,SC-QR 1/2
Mitsubishi, SC-QR Series electric power 220 Volts (1 phase), speed 1,450 rpm, shaft size 16 mm, Japanese JIS (JAPANESE INDUSTRIAL STANDARD) quality and IEC (INTERNATIONAL ELECTROTECHNICAL COMMISSION) is an induction motor. High power, high efficiency SMOOTH SPEED The motor operates quietly and is not disturbed due to the balanced design, durable and has a long life. Suitable for use in various industries.
Features
- High power, working at full efficiency
- Has a consistent speed (SMOOTH SPEED).
- Noiseless, noisy sound
MITSUBISHI SC-QR Series SPECIFICATIONS
MITSUBISHI SC-QR 1/4 ,SC-QR 1/3,SC-QR 1/2
| Model | MITSUBISHI SC-QR | ||
| Output HP (kW) | 1/4 | 1/3 | 1/2 |
| Frame No. | A71 | B71 | 80M |
| No. of poles | 4 | 4 | 4 |
| Thermal class | E | ||
| Power supply | 1 Phase 220/230V 50Hz. | ||
| Full load current (A) | 2.6 | 3.1 | 4.3 |
| Full load speed (min¯¹) | 1450 | 1450 | 1430 |
| Starting current (A) | 11 | 13.5 | 18.5 |
| Starting torque (%) | 351 | 315 | 253 |
| Break down torque (%) | 273 | 292 | 248 |
| Effciency (%) | 65.5 | 64.9 | 70 |
MITSUBISHI SC-QR Series DIMENSIONS
MITSUBISHI SC-QR 1/4 ,SC-QR 1/3,SC-QR 1/2
Dimensions Table A1
| Model | Frame | Fig. | Motor | |||||||||
| No. | A | B | C* | D | E | F | G | H | KA | KD1 | ||
| SC-QR | A71 | 3 | 92 | 87 | 71 | 131.2 | 56 | 45 | 3.2 | 136.6 | 21.3 | 12 |
| B71 | 101 | 87 | 71 | 131.2 | 56 | 45 | 3.2 | 136.6 | 30.3 | 12 | ||
| 80M | 4 | 125 | 97 | 80 | 146.6 | 62.5 | 50 | 3.2 | 153.3 | 44.5 | 12 | |
Dimensions Table A2
| Model | Frame | Fig. | Motor | ||||||||
| No. | KD2 | KL | L | M | N | X | XB | TH | Z | ||
| SC-QR | A71 | 3 | 12 | 82 | 212 | 148 | 110 | 15 | 45 | 170 | 9 |
| B71 | 12 | 82 | 221 | 148 | 110 | 15 | 45 | 167 | 9 | ||
| 80M | 4 | 12 | 92 | 265 | 165 | 130 | 10 | 50 | 173 | 10 | |
Dimensions Table A3
| Model | Frame | Fig. | Shaft End | ||||||
| No. | Q | QK | R | S | T | U | W | ||
| SC-QR | A71 | 3 | 30 | 27 | 120 | 14 h6 | – | 1 | – |
| B71 | 30 | 27 | 120 | 14 h6 | – | 1 | – | ||
| 80M | 4 | 40 | 28 | 140 | 16 j6 | 5 | 3 | 5 | |
*The perpendicular Variation of tolerance for the shaft center is 0 – 0.5
