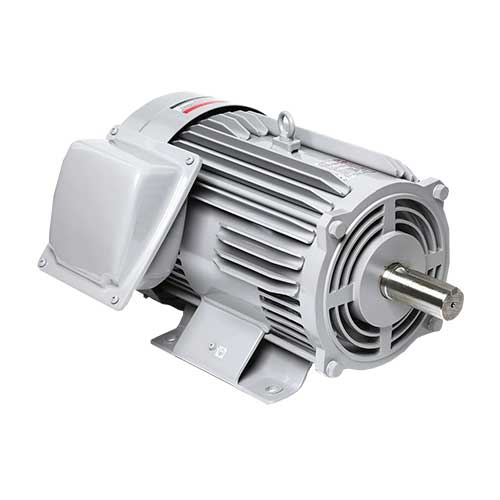

Electric Motor MITSUBISHI SCL-KR Series
SPECIFICATIONS DATA MITSUBISHI SCL-KR Series
| MODEL | SCL-KR |
| ขนาดแรงม้า | 1-10 HP |
| ระบบการสตาร์ท | CAPACITOR START |
| รูปแบบมอเตอร์ | ยึดด้วยขาตั้งพื้น |
| ความเร็วรอบ | 1450 RPM |
| แรงดันไฟฟ้า | 220 V.A.C. |
| มาตรฐานการป้องกันฝุ่น | IP 55 CLASS F |
DIMENSIONS DATA MITSUBISHI SCL-KR Series
| MODEL | FRAME NO | Output | Pole |
| kW | |||
| SCL-KR | 90S | 0.75 | 4 |
| 90L | 1.1 | ||
| 100L | 1.5 | ||
| 112M | 2.2 | ||
| 132S | 3.7 | ||
| 132M | 5.5 | ||
| 132ML | 7.5 |
| Fig | Motor | ||||||||||||||||||||||
| A | B | C | D | E | F | G | H | I | J | K | KA | KD | KL | L | M | N | XB | TH | Y | YH | X | Z | |
| 5 | 132 | 103 | 90 | 165.7 | 70 | 50 | 3.2 | 173 | 220 | 68 | 27 | 157 | 278 | 175 | 125 | 56 | 81 | 10 | 10 | ||||
| 120 | 115 | 90 | 165.7 | 70 | 62.5 | 4 | 173 | 220 | 55 | 27 | 157 | 313 | 175 | 150 | 56 | 81 | 15 | 9 | |||||
| 6 | 118 | 128 | 100 | 168 | 80 | 70 | 6.5 | 184 | 40 | 45 | 65 | 35 | 201 | 400 | 200 | 180 | 63 | 64 | 89 | 118 | 4 | 12 | |
| 125 | 135 | 112 | 190 | 95 | 70 | 6.5 | 207 | 254 | 40 | 45 | 69 | 35 | 211 | 414 | 230 | 180 | 70 | 79 | 89 | 118 | 4 | 12 | |
| 7 | 223 | 152 | 132 | 266 | 108 | 70 | 6.5 | 242 | 289 | 40 | 45 | 75 | 27 | 215 | 462 | 256 | 180 | 89 | 117 | 4 | 12 | ||
| 242 | 171 | 132 | 266 | 108 | 89 | 6.5 | 242 | 289 | 40 | 45 | 94 | 35 | 240 | 500 | 256 | 218 | 89 | 106 | 4 | 12 | |||
| 270 | 171 | 132 | 266 | 108 | 89 | 6.5 | 242 | 289 | 40 | 45 | 122 | 35 | 240 | 528 | 256 | 218 | 89 | 106 | 4 | 12 | |||
