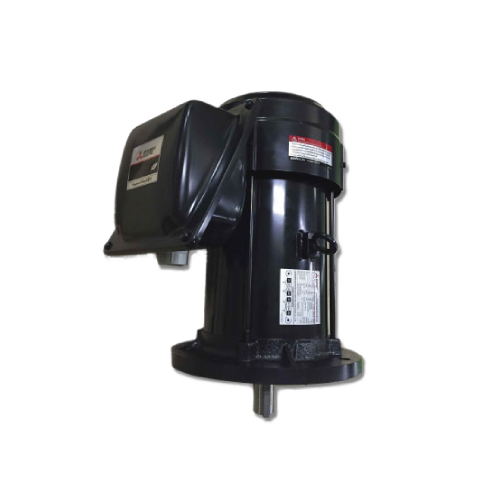

Mitsubishi Motor SCLF-QRV Series Single Phase Motor, Closed Structure Prevent dust and foreign objects Cooling by circulating air in the motor. IP55 protection against water and dust, IE1 class motor efficiency.
MITSUBISHI Super Series Case Motor (SCLF-QRV Series) , 1 horsepower
Is a high quality 1 phase stepper motor with JIS (Japanese Industrial Standard) And IEC (International Electrotechnical Commission)
Lightweight when compared with other models High torque and also full power. And has a smooth speed (Smooth Speed), low noise while the motor is running Due to the balanced design Has a long service life And durable, suitable for use with ventilation systems such as Installed to drive the ventilation fan Indoor or animal husbandry, in an open and closed house, using a fan system Ventilate the pump assembly including the conveyor system
And connect with all this compressor equipment from Mitsubishi Designed to be easy and convenient to use in all forms.
| MODEL | Flange No. | Frame No. | Pole | Bearing No. | Approximate Weight | Approximate Packing dimensions | Packing Weight | |
| Drive end | Oppersite | kg | (LxWxH) | kg | ||||
| SCLF-QRV | FF165 | 90S | 4 | 6204ZZ | 6202ZZ | 18 | 374x337x278 | 19 |
| FF165 | 90L | 4 | 6205ZZ | 6203ZZ | 21 | 398x311x253 | 22.5 | |
| FF215 | 100L | 4 | 6206ZZ | 6205ZZ | 28 | 454x366x317 | 34.6 | |
| FF215 | 112M | 4 | 6207ZZ | 6206ZZ | 39 | 454x366x317 | 47.2 | |
