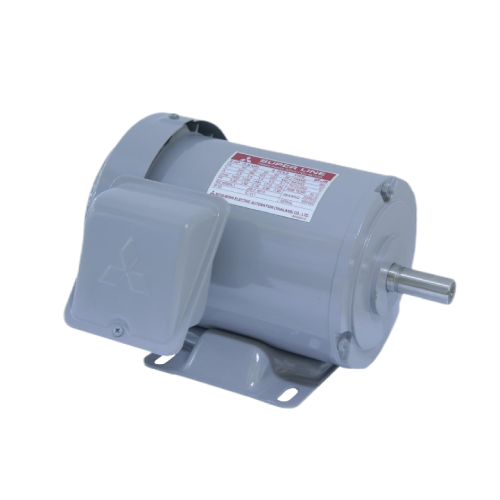

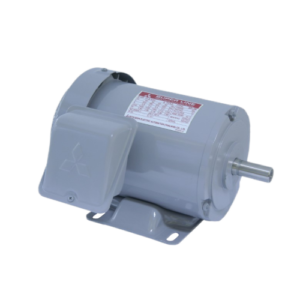

Electric Motor MITSUBISHI SF-JR IP44 Series is a type of single-phase motors, electrical switches are covered voltage is 220 V. 4P available in four different sizes ranging from size, horsepower. 1/4 HP, 1/2 HP, 1 HP and 2HP. Electric motor SF-JR Series IP44 operates equivalently to SF-QR Series IP44.
Motor MITSUBISHI SF-JR Series IP44 3 phase stepper type High quality electric motor according to JIS (Japanese Industrial Standard)And the IEC (International Electrotechnical Commission), a 3-phase induction motor consisting of a cooling fan on the back of the motor. With cooling fins on the case (For some models) helps reduce the deterioration of internal materials From the arbitrary heat that is generated during operation Make the motor have Long service life With a durable structure All Mitsubishi Motors are efficient High operation, high torque And give full power The noise caused by the operation of the motor is very light. Has a balanced design effect The closed structure prevents foreign objects entering the motor very well. Suitable for ventilation, including conveyor systems (Conveyer), connect with compressor equipment, Industrial work And various production line factories Due to the motor There are different rpm speeds for each model, so you can choose to use as per the rpm motor requirements. Electric motor SF-JR Series IP44 operates equivalently to SF-QR Series IP44.
| Model | Power (HP) |
Pole | IP | Voltage |
|---|---|---|---|---|
| SF-JR | 1/4HP | 2P | IP.44 | 220/380V |
| SF-JR | 1/2HP | 2P | IP.44 | 220/380V |
| SF-JR | 1HP | 2P | IP.44 | 220/380V |
| SF-JR | 2HP | 2P | IP.44 | 220/380V |
| SF-JR | 3HP | 2P | IP.44 | 220/380V |
| SF-JR | 5HP | 2P | IP.44 | 220/380V |
| SF-JR | 1/4HP | 4P | IP.44 | 220/380V |
| SF-JR | 1/2HP | 4P | IP.44 | 220/380V |
| SF-JR | 1HP | 4P | IP.44 | 220/380V |
| SF-JR | 2HP | 4P | IP.44 | 220/380V |
| SF-JR | 3HP | 4P | IP.44 | 220/380V |
| SF-JR | 5HP | 4P | IP.44 | 220/380V |

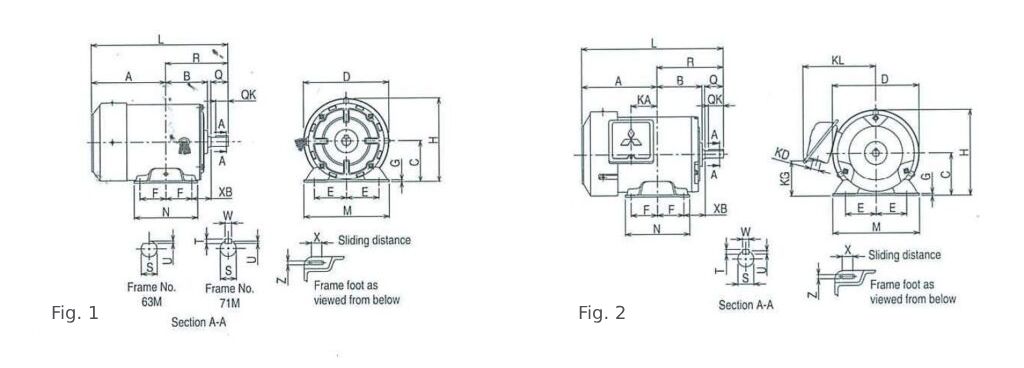

| Model | Frame No. |
Fig. | Motor | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C* | D | E | F | G | H | L | |||
| SF-JR | 63M | 1 | 113 | 77 | 63 | 127 | 50 | 40 | 2.3 | 127 | 216 |
| SF-JR | 71M | 1 | 118 | 87 | 71 | 148 | 56 | 45 | 3.2 | 145 | 238 |
| SF-JR | 80M | 2 | 122 | 95 | 80 | 166 | 62.5 | 50 | 3.2 | 166 | 262 |
| SF-JR | 90L | 2 | 143 | 114 | 90 | 188 | 70 | 62.5 | 4 | 187 | 311.5 |
| Model | Frame No. |
Fig. | Motor | Terminal Box | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | N | X | XB | Z | KA | KG | KD | KL | |||
| SF-JR | 63M | 1 | 135 | 100 | 12 | 40 | 7 | – | – | – | – |
| SF-JR | 71M | 1 | 148 | 110 | 18 | 45 | 7 | – | – | – | – |
| SF-JR | 80M | 2 | 160 | 125 | 15 | 50 | 9 | 39.5 | 63 | 27 | 145 |
| SF-JR | 90L | 2 | 175 | 150 | 15 | 56 | 9 | 53 | 76 | 27 | 158 |
| Model | Frame No. |
Fig. | Motor | Shaft End | |||||
|---|---|---|---|---|---|---|---|---|---|
| Q | OK | R | S | T | U | W | |||
| SF-JR | 63M | 1 | 23 | – | 103 | 11 h6 | 1 | – | |
| SF-JR | 71M | 1 | 30 | 25 | 120 | 14 j6 | 5 | 3 | 5 |
| SF-JR | 80M | 2 | 40 | 32 | 140 | 19 j6 | 6 | 3.5 | 6 |
| SF-JR | 90L | 2 | 50 | 40 | 168.5 | 24 j6 | 7 | 4 | 8 |
