BRAKE MOTOR Mitsubishi Motors Model SF-JR Series (63M ~ 132M Horizontal Type) is a three-phase electric motor, alternator voltage are covered 380 V. Available in sizes starting from 10 hp 1 /. 4 HP – 10 HP electric motor SF-JR series model is ideal for use in industrial machinery, and power. Electric motor SF-JR Series IP55 operates equivalently to SF-QR Series IP55.

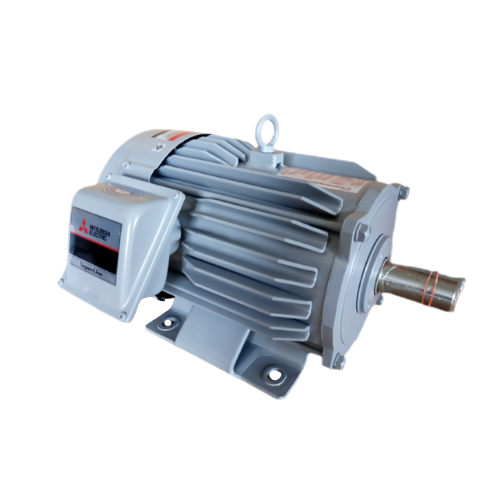

Electric Motor Mitsubishi SF-JR Series IP55 (Horizontal Type) is a three-phase electric motor with a 1450 rpm (4P) and 2890 rpm (2P) 380 volts. Induction (3 Phase Induction Motor) has a distinctive feature is a constant speed. Which depends on the frequency (Frequency) of alternating current sources and is cheap, the structure is not complicated Convenient for maintenance Suitable for use as a power source in industrial machinery. Mitsubishi Electric Motors SF-JR Series (63M ~ 132M Horizontal Type) is available in up to 10 models, the minimum horsepower from 1/4 HP to the maximum of 10 HP. Electric motor SF-JR Series IP55 operates equivalently to SF-QR Series IP55.
| Model | Power (HP) |
Pole | IP | Voltage |
|---|---|---|---|---|
| SF-JR | 1/4HP | 2P | IP.55 | 220/380V |
| SF-JR | 1/2HP | 2P | IP.55 | 220/380V |
| SF-JR | 1HP | 2P | IP.55 | 220/380V |
| SF-JR | 2HP | 2P | IP.55 | 220/380V |
| SF-JR | 3HP | 2P | IP.55 | 220/380V |
| SF-JR | 5HP | 2P | IP.55 | 220/380V |
| SF-JR | 1/4HP | 4P | IP.55 | 220/380V |
| SF-JR | 1/2HP | 4P | IP.55 | 220/380V |
| SF-JR | 1HP | 4P | IP.55 | 220/380V |
| SF-JR | 2HP | 4P | IP.55 | 220/380V |
| SF-JR | 3HP | 4P | IP.55 | 220/380V |
| SF-JR | 5HP | 4P | IP.55 | 220/380V |
| SF-JR | 1/4HP | 6P | IP.55 | 220/380V |
| SF-JR | 1/2HP | 6P | IP.55 | 220/380V |
| SF-JR | 1HP | 6P | IP.55 | 220/380V |
| SF-JR | 2HP | 6P | IP.55 | 220/380V |
| SF-JR | 3HP | 6P | IP.55 | 220/380V |
| SF-JR | 5HP | 6P | IP.55 | 220/380V |
| SF-JR | 5HP | 6P | IP.55 | 220/380V |
| SF-JR | 7.5HP | 6P | IP.55 | 220/380V |
| SF-JR | 7.5HP | 6P | IP.55 | 380-440V |
| Model | Frame No. |
Fig. | Motor | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C* | D | E | F | G | H | I | |||
| SF-JR | 63M | 1 | 121.4 | 73.6 | 63 | 130 | 50 | 40 | 2.3 | 126.3 | – |
| SF-JR | 71M | 1 | 128.5 | 83 | 71 | 147.6 | 56 | 45 | 3.2 | 144.8 | – |
| SF-JR | 80M | 1 | 122 | 98 | 80 | 161.6 | 62.5 | 50 | 3.2 | 165.4 | – |
| SF-JR | 90L | 1 | 143 | 117 | 90 | 183.6 | 70 | 62.5 | 4 | 186.3 | – |
| SF-JR | 100L | 2 | 173 | 131 | 100 | 207 | 80 | 70 | 6.5 | 203.5 | 230 |
| SF-JR | 112M | 2 | 181 | 138 | 112 | 228 | 95 | 70 | 6.5 | 226 | 253 |
| SF-JR | 132S | 2 | 211.5 | 155 | 132 | 266 | 108 | 70 | 6.5 | 265 | 288 |
| SF-JR | 132M | 2 | 230.5 | 174 | 132 | 266 | 108 | 89 | 6.5 | 265 | 288 |
| Model | Frame No. |
Fig. | Motor | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| J | K | L | M | ML | N | X | XB | Z | |||
| SF-JR | 63M | 1 | – | – | 224.4 | 135 | – | 100 | 12 | 40 | 7 |
| SF-JR | 71M | 1 | – | – | 248.5 | 148 | – | 110 | 18 | 45 | 7 |
| SF-JR | 80M | 1 | – | – | 262 | 160 | – | 125 | 15 | 50 | 9 |
| SF-JR | 90L | 1 | – | – | 311.5 | 175 | – | 150 | 15 | 56 | 9 |
| SF-JR | 100L | 2 | 40 | 45 | 366 | 200 | 212 | 180 | 4 | 63 | 12 |
| SF-JR | 112M | 2 | 40 | 45 | 381 | 230 | 242 | 180 | 4 | 70 | 12 |
| SF-JR | 132S | 2 | 40 | 45 | 450.5 | 256 | 268 | 180 | 4 | 89 | 12 |
| SF-JR | 132M | 2 | 40 | 45 | 488.5 | 256 | 268 | 218 | 4 | 89 | 12 |
| Model | Frame No. |
Fig. | Terminal Box | Shaft End | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KA | KG | KD | KL | KP** | Q | QK | R | S | T | U | W | |||
| SF-JR | 63M | 1 | 38.4 | 75 | PF1/2 | 130 | 162 | 23 | – | 103 | 11 h6 | – | 1 | – |
| SF-JR | 71M | 1 | 44.5 | 67 | PF1/2 | 140 | 161 | 30 | 25 | 120 | 14 j6 | 5 | 3 | 5 |
| SF-JR | 80M | 1 | 39.5 | 38 | PF3/4 | 145 | – | 40 | 32 | 140 | 19 j6 | 6 | 3.5 | 6 |
| SF-JR | 90L | 1 | 53 | 59 | PF3/4 | 158 | – | 50 | 40 | 168.5 | 24 j6 | 7 | 4 | 8 |
| SF-JR | 100L | 2 | 65 | 64 | PF3/4 | 170 | – | 60 | 45 | 193 | 28 j6 | 7 | 4 | 8 |
| SF-JR | 112M | 2 | 69 | 87 | PF3/4 | 182 | – | 60 | 45 | 200 | 28 j6 | 7 | 4 | 8 |
| SF-JR | 132S | 2 | 75 | 96 | PF1 | 210 | – | 80 | 63 | 239 | 38 k6 | 8 | 5 | 10 |
| SF-JR | 132M | 2 | 94 | 96 | PF1 | 210 | – | 80 | 63 | 258 | 38 k6 | 8 | 5 | 10 |
