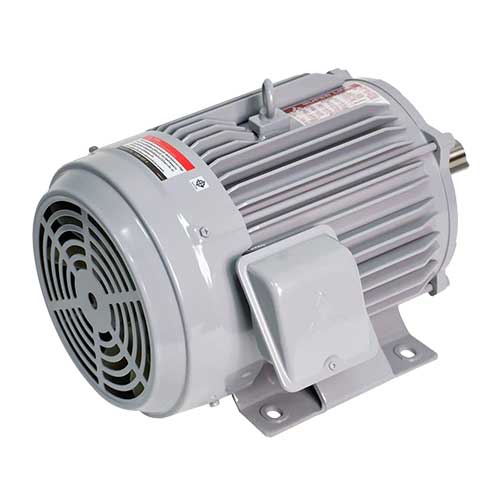

Electric Motor MITSUBISHI SF-JRB Series
MITSUBISHI Electric Motor SF-JRB, Horizontal Type, Bracket Equipped with 3PHASE brakes, voltage 380V, size from 1 / 4HP – 10HP, speed 1450RPM (4P), 2820RPM (2P) and 950RPM (6P) Totally Enclosed Fan Cooled Type, IP 55 Degrees of Protection (Class F). IP55 (Ingress Protection) type, can be used for both indoor and outdoor work.
Facebook
Twitter
Email
Print
Electric Motor MITSUBISHI SF-JRB Series
Electric Motor MITSUBISHI SF-JRB Series
- Works with low noise levels When the motor is working The noise level does not exceed 75 dB.
- Motor MITSUBISHI The brake torque has a torque of about 150% of the motor, increasing the efficiency of braking.
- Electric Motor Protection class IP 55.
SPECIFICATIONS DATA MITSUBISHI SF-JRB Series
| POLE | kW | แรงม้า | Frame No. | Volt | ขนาดเพลาออก | น้ำหนัก |
| HP | V | mm | kg | |||
| 4P | 0.2 | 1/4 | 63M | 380V | 11 | 8 |
| 4 | 1/2 | 71M | 14 | 11 | ||
| 0.75 | 1 | 80M | 19 | 15 | ||
| 1.5 | 2 | 90L | 24 | 25 | ||
| 2.2 | 3 | 100L | 28 | 31 | ||
| 3.7 | 5 | 112M | 28 | 43 | ||
| 5.5 | 7.5 | 132S | 38 | 58 | ||
| 7.5 | 10 | 132M | 38 | 69 | ||
| 6P | 0.2 | 1 | 90L | 380V | 24 | 24 |
| 1.5 | 2 | 100L | 28 | 33 | ||
| 2.2 | 3 | 112M | 28 | 45 | ||
| 3.7 | 5 | 132S | 38 | 60 | ||
| 5.5 | 7.5 | 132M | 38 | 72 |

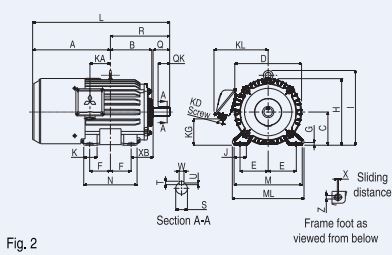

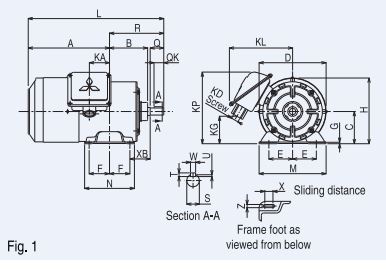

DIMENSIONS DATA MITSUBISHI SF-JRB Series
| Fig | Motor | |||||||||||||||||
| A | B | C | D | E | F | G | H | I | J | K | L | M | ML | N | X | XB | Z | |
| 1 | 173 | 73.6 | 63 | 128 | 50 | 40 | 2.3 | 126.9 | 276 | 135 | 100 | 12 | 40 | 7 | ||||
| 178.5 | 83 | 71 | 150 | 56 | 45 | 3.2 | 145.6 | 298.5 | 148 | 110 | 18 | 45 | 7 | |||||
| 191 | 98 | 80 | 168 | 62.5 | 50 | 3.2 | 161.5 | 331 | 160 | 125 | 15 | 50 | 9 | |||||
| 218.5 | 117 | 90 | 189 | 70 | 62.5 | 4 | 182.6 | 387 | 175 | 150 | 15 | 56 | 9 | |||||
| 2 | 250 | 131 | 100 | 213 | 80 | 70 | 6.5 | 203.5 | 230 | 40 | 45 | 443 | 200 | 212 | 180 | 4 | 63 | 12 |
| 262 | 138 | 112 | 232 | 95 | 70 | 6.5 | 226 | 253 | 40 | 45 | 462 | 230 | 242 | 180 | 4 | 70 | 12 | |
| 287.5 | 155 | 132 | 272 | 108 | 70 | 6.5 | 265 | 288 | 40 | 45 | 526.5 | 256 | 268 | 180 | 4 | 89 | 12 | |
| 306.5 | 174 | 132 | 272 | 108 | 89 | 6.5 | 265 | 288 | 40 | 45 | 564.5 | 256 | 268 | 218 | 4 | 89 | 12 | |
