Electric Motor MITSUBISHI SF-PR Series
Mitsubishi Motors SF-PR Series is an internal use motor. Save energy with advanced technology. Suitable for a variety of applications.
Facebook
Twitter
Email
Print
Electric Motor MITSUBISHI SF-PR Series
Mitsubishi Motor Model SF-PR Series Electric motor IE3, high energy-saving efficiency, high quality electric motor has the advantages of long-lasting performance, strong power saving.
SPECIFICATIONS DATA MITSUBISHI SF-PR Series
| MODEL | Frame number | Head Resistance | Output (KW) | ||
| Class | 2P | 4P | 6P | ||
| SF-PR | 80M | E | 0.75 | 0.75 | – |
| 90L | 1.5,2.2 | 1.5 | 0.75 | ||
| 100L | – | 2.2 | 1.5 | ||
| 112M | 3.7 | 3.7 | – | ||
| – | – | 2.2 | |||
| 132S | B | 5.5,7.5 | 5.5 | 3.7 | |
| 132M | 7.5 | 5.5 | |||
| 160M | 11,15 | 11 | 7.5 | ||
| 160L | 18.5 | 15 | 11 | ||
| 180M | 22 | 18.5,22 | 15 | ||
| 180LD | F | 30 | – | – | |
| – | 30 | 18.5,22 | |||
| 200LD | 37,45 | – | – | ||
| – | 37,45 | 30,37 | |||
| 225S | 55 | – | – | ||
| – | 55 | 45 | |||

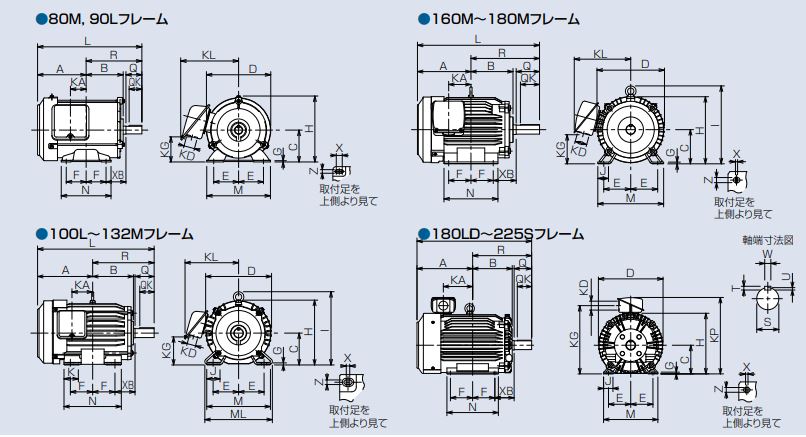

DIMENSIONS DATA MITSUBISHI SF-PR Series
| MOTOR | |||||||||||||||
| A | B | C* | D | E | F | G | H | I | J | K | KA | KD | KG | KL(KP) | L |
| 122 | 93 | 80 | 162 | 62.5 | 50 | 3.2 | 166 | 39.5 | 27 | 63 | 145 | 262 | |||
| 143 | 111.5 | 90 | 184 | 70 | 52.5 | 4 | 191 | 53 | 27 | 76 | 158 | 311.5 | |||
| 173 | 128 | 100 | 207 | 80 | 70 | 6.5 | 203.5 | 230 | 40 | 45 | 65 | 27 | 88 | 169 | 366 |
| 181 | 135 | 112 | 228 | 95 | 70 | 6.5 | 226 | 253 | 40 | 45 | 69 | 27 | 103 | 180 | 381 |
| 218 | 106 | 418 | |||||||||||||
| 211.5 | 152 | 132 | 266 | 108 | 70 | 6.5 | 265 | 288 | 40 | 45 | 75 | 27 | 120 | 197 | 450.5 |
| 230.5 | 171 | 132 | 266 | 108 | 89 | 6.5 | 265 | 288 | 40 | 45 | 94 | 27 | 120 | 197 | 488.5 |
| 252 | 198 | 160 | 318 | 127 | 105 | 8 | 316 | 367 | 50 | 105 | 56 | 142 | 266 | 575 | |
| 274 | 220 | 160 | 318 | 127 | 127 | 8 | 316 | 367 | 50 | 127 | 56 | 142 | 266 | 619 | |
| 292.5 | 225.5 | 180 | 363 | 139.5 | 120.5 | 8 | 359 | 410 | 50 | 127 | 56 | 168 | 289 | 644 | |
| 349.5 | 248.5 | 180 | 406 | 139.5 | 139.5 | 11 | 381 | 58 |
|
184 | 56 | 429 | 480 | 720 | |
| 355 | 268 | 200 | 446 | 159 | 152.5 | 11 | 421 | 64 | 145 | 90 | 498 | 568 | 750.5 | ||
| 271 | 750.5 | ||||||||||||||
| 425 | 268 | 225 | 446 | 178 | 143 | 11 | 446 | 70 | 205 | 90 | 523 | 593 | 827 | ||
| 271 | 827 | ||||||||||||||
