Electric Motor MITSUBISHI SF-PRB Series

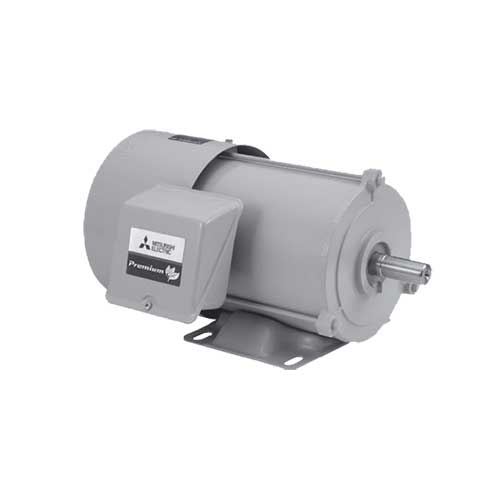

MITSUBISHI Electric Motor SF-PRB Series Horizontal Type Bracket Equipped with 3 PHASE brakes , voltage 380 V. Sizes from 1 / 4 HP – 10 HP, speed 1450 RPM (4P) , 2820 RPM (2P) and slow cycle type 950 RPM (6P) Motor type IP 55 (Ingress Protection) for both indoor and outdoor work.
SPECIFICATIONS DATA MITSUBISHI SF-PRB Series
| MODEL | Frame number | Head Resistance | Output (KW) | ||
| Class | 2P | 4P | 6P | ||
| SF-PRB | 80M | E | – | 0.75 | – |
| 90L | – | 1.5 | 0.75 | ||
| 100L | – | 2.2 | 1.5 | ||
| 112M | – | 3.7 | – | ||
| – | – | 2.2 | |||
| 132S | B | – | 5.5 | 3.7 | |
| 132M | – | 7.5 | 5.5 | ||
| 160M | – | 11 | 7.5 | ||
| 160L | – | 15 | 11 | ||

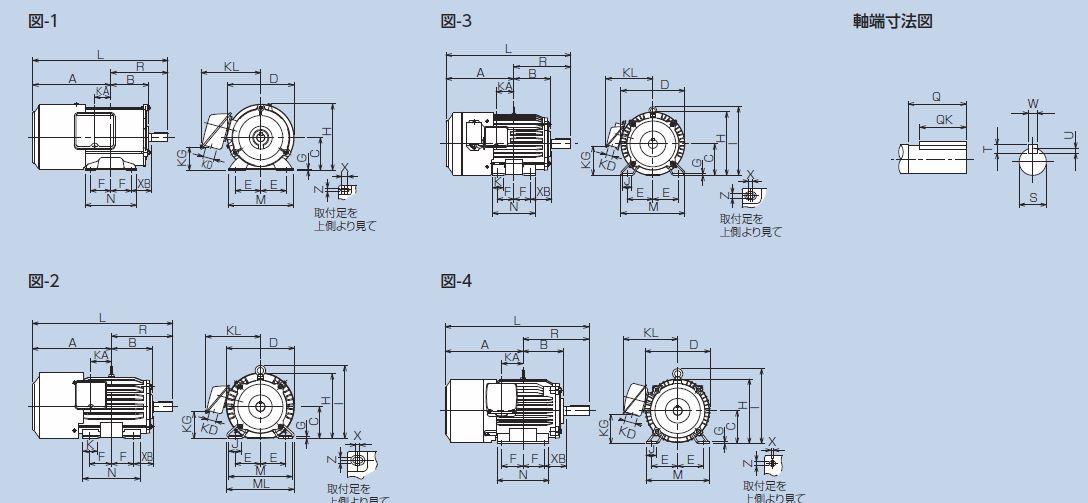

DIMENSIONS DATA
| Fig | Motor | ||||||||||||||
| A | B | C* | D | E | F | G | H | I | J | K | KA | KD | KG | KL (KP) | |
| 1 | 122 | 97 | 80 | 162 | 62.5 | 50 | 3.2 | 166 | – | – | – | 39.5 | PF 3/4 | 109 | 159 |
| 143 | 116.5 | 90 | 184 | 70 | 62.5 | 4 | 191 | – | – | – | 53 | PF 3/4 | 123 | 173 | |
| 2 | 173 | 132 | 100 | 207 | 80 | 70 | 6.5 | 203.5 | 230 | 40 | 45 | 65 | PF 3/4 | 136 | 185 |
| 181 | 139 | 112 | 228 | 95 | 70 | 6.5 | 226 | 253 | 40 | 45 | 69 | PF 3/4 | 151 | 196 | |
| 218 | |||||||||||||||
| 211.5 | 158 | 132 | 266 | 108 | 89 | 6.5 | 265 | 288 | 40 | 45 | 75 | PF 1 | 177 | 223 | |
| 230.5 | 177 | 132 | 266 | 108 | 105 | 6.5 | 265 | 288 | 40 | – | 94 | PF 1 | 177 | 223 | |
| 3 | 252 | 209 | 160 | 318 | 127 | 127 | 8 | 316 | 367 | 50 | – | 5 | PF 1 1/4 | 116 | 274 |
| 274 | 231 | 160 | 318 | 127 | 120.5 | 8 | 316 | 367 | 50 | – | 127 | PF 1 1/4 | 116 | 274 | |
| 292.5 | 237.5 | 180 | 363 | 139.5 | 139.5 | 8 | 359 | 410 | 50 | – | 127 | PF 1 1/2 | 140 | 296 | |
| 311.5 | 156.5 | 180 | 363 | 139.5 | 139.5 | 8 | 359 | 410 | 50 | – | 146 | PF 2 | 135 | 296 | |
| 4 | 349 | 258.5 | 180 | 406 | 139.5 | 139.5 | 11 | 381 | – | 58 | – | 184 | PF 2 | 432 | 487 |
| 355 | 282 | 200 | 446 | 159 | 152.5 | 11 | 421 | – | 64 | – | 145 | PF 2 | 487 | 567 | |
| 425 | 282 | 225 | 446 | 178 | 143 | 11 | 446 | – | 70 | – | 205 | PF 2 1/2 | 512 | 592 | |
