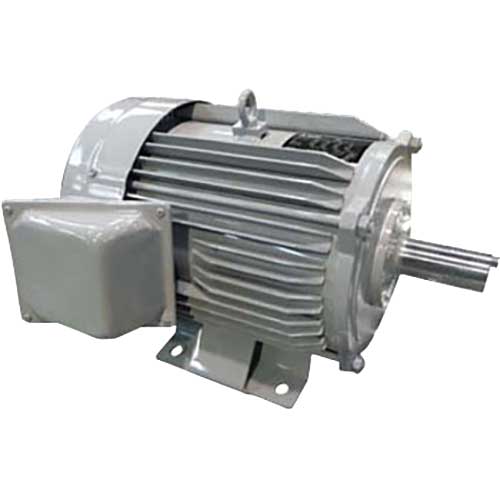

Electric Motor MITSUBISHI SF-PRO Series
Electric Motor MITSUBISHI SF-PRO Series electric motors are IE 3 standard motors that save energy. IP44 waterproof performance, tested for water resistance To comply with JIS C 4034-50, so it can be safely used outdoors.
SPECIFICATIONS DATA MITSUBISHI SF-PRO Series
| MODEL | Frame number | Head Resistance | Output (KW) | ||
| Class | 2P | 4P | 6P | ||
| SF-PRO | 80M | E | 0.75 | 0.75 | |
| 90L | 1.5,2.2 | 1.5 | 0.75 | ||
| 100L | 2.2 | 1.5 | |||
| 112M | 3.7 | 3.7 | |||
| 2.2 | |||||
| 132S | B | 5.5,7.5 | 5.5 | 3.7 | |
| 132M | 7.5 | 5.5 | |||
| 160M | 11,15 | 11 | 7.5 | ||
| 160L | 18.5 | 15 | 11 | ||
| 180M | 22 | 18.5,22 | 15 | ||
| 180L | 30 | ||||
| 180LD | F | 30 | |||
| 18.5,22 | |||||
| 200LD | 37,45 | ||||
| 37,45 | 30,37 | ||||
| 225S | 55 | ||||
| 55 | 45 | ||||

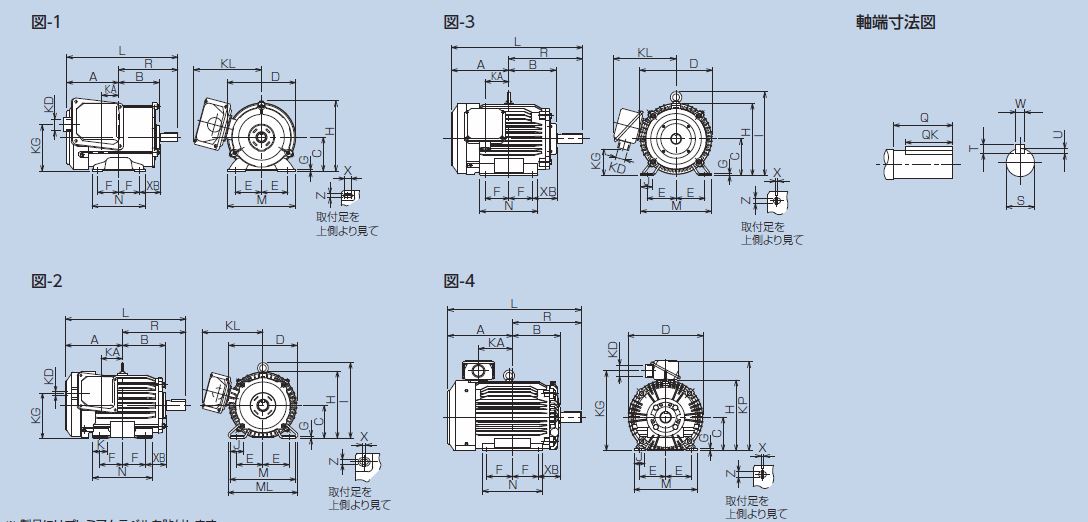

DIMENSIONS DATA MITSUBISHI SF-PRO Series
| MOTOR | ||||||||||||||
| A | B | C* | D | E | F | G | H | I | J | K | KA | KD | KG | KL(KP) |
| 122 | 96 | 80 | 162 | 62.5 | 50 | 3.2 | 166 | – | – | – | 39.5 | PF 3/4 | 109 | 159 |
| 143 | 114.5 | 90 | 184 | 70 | 62.5 | 4 | 191 | – | – | – | 53 | PF 3/4 | 123 | 173 |
| 173 | 131 | 100 | 207 | 80 | 70 | 6.5 | 203.5 | 230 | 40 | 45 | 65 | PF 3/4 | 136 | 185 |
| 181 | 138 | 112 | 228 | 95 | 70 | 6.5 | 226 | 253 | 40 | 45 | 69 | PF 3/4 | 151 | 196 |
| 218 | ||||||||||||||
| 211.5 | 155 | 132 | 266 | 108 | 70 | 6.5 | 265 | 288 | 40 | 45 | 75 | PF 1 | 177 | 223 |
| 230.5 | 174 | 132 | 266 | 108 | 89 | 6.5 | 265 | 288 | 40 | 45 | 94 | PF 1 | 177 | 223 |
| 252 | 207 | 160 | 318 | 127 | 105 | 8 | 316 | 367 | 50 | – | 105 | PF1 1/4 | 116 | 274 |
| 274 | 229 | 160 | 318 | 127 | 127 | 8 | 316 | 367 | 50 | – | 127 | PF1 1/4 | 116 | 274 |
| 292.5 | 235.5 | 180 | 363 | 139.5 | 120.5 | 8 | 359 | 410 | 50 | – | 127 | PF1 1/2 | 140 | 296 |
| 311.5 | 253 | 180 | 363 | 139.5 | 139.5 | 8 | 359 | 410 | 50 | – | 146 | PF2 | 135 | 296 |
| 349.5 | 258 | 180 | 406 | 139.5 | 139.5 | 11 | 381 | 184 | PF2 | 432 | 487 | |||
| 355 | 279.5 | 200 | 446 | 159 | 152.5 | 11 | 421 | 145 | PF2 | 487 | 567 | |||
| 282 | ||||||||||||||
| 425 | 279.5 | 225 | 446 | 178 | 143 | 11 | 446 | 205 | PF2 1/2 | 512 | 592 | |||
| 282 | ||||||||||||||
