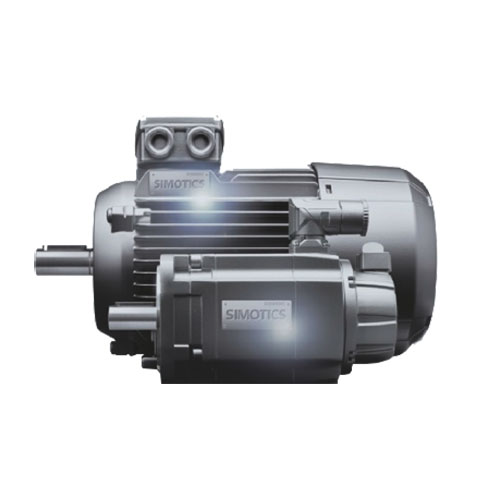

Electric Motor SIEMENS Simotics 1PC1

Electric Motor SIEMENS Simotics 1PC1

Electric Motor SIEMENS Simotics 1PC1 Siemens SIMOTIC motors have extremely durable components – for general use The frame, the end of the bearing and the shaft of the motor are strong, twisty and have high durability. The highest mechanical running properties to the degree of vibration.

Category Tags , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Electric Motor SIEMENS Simotics 1PC1

The low-voltage motor unique key features:

In order to maximize inventory turn rates, minimize complexity, decrease stock levels and minimize your investment required, we defined a specific distribution portfolio already including most common required features as standard. In addition we offer an additional selection of options with which you can modify the distribution offering even more.

  1. Low vibration The low vibration results from our precison manufacturing and the use of defined and controlled quality components. The quality bearings used augment this and result in longer life and lower noise. See chapter 1 – Applicable standards and specifications for details.

Besides we can always offer you the most comprehensive motor portfolio made to order for all applications and industries available from our standard catalog portfolio D 81.1 and SIMOTICS GP 1LEO Low-voltage Motors catalog offering D 81.5N 09-2011.

  1. Drain hole as standard (1LEO) Drain holes as standard make sure condensed water does not stay inside of the motor. This is especially important in humid environment and big temperature deltas.
  2. Bearing for high cantilever forces and longer lifetime Bearings in our motors are not only designed for high cantilever forces, but also to make sure the motors run smooth.
  3. True IP55 as standard Our IP55 design covers a vast majority of applications and is tested and proven for full lifetime, plus you have the full modification possibility within IP55 rating.
  4. F to B thermal class for bullt-In reserve The Siemens motors are rated at normal sinusoidal voltage with a class B (130 °C) temperature rise. The windings are rated to class F (155 °C) thus allowing for reserve for the additional losses associated with variable speed drive operation and / or higher ambient temperature and / or overload conditions when operating directly on-line. Fto F is possible for converter-fed operation.
  5. Converter-fed operation for variable speed as standard For all motors offered up to 460 V converter-fed operation is possible as standard configuration – no special option or series is needed.
  6. Embedded thermal protection 3x PTC (1LEO/1LA7 and 1LE 1 motors) Thermal protection with PTC thermistors with 3 embedded temperature sensors for tripping is provided in our E2 motors above frame size 112 as standard version.
  1. Global motor platform Our motor design is based on one global motor platform with the same look and feel on all low-voltage motor IEC products.
  2. Prepared for easy modification and mount auxiliaries Our distribution motors are equipped with metal fan cover and center hole on non-drive end shaft for easy modification and mount auxiliaries.



P rated,
50 Hz		 P rated,
60 Hz		 Frame
size		 Operating values at rated output Aluminum series
1PC1300 ‒
Premium Efficient
version
Article No.		 ᵐIM B3 J Torque
class
n  rated,
50 Hz		 T rated,
60 Hz		 IE Class
kW kW FS rpm Nm ∆ NEW kg kgm² CL
 • Cooling: self-ventilated (IC 411) or with order code F90 forced-air cooled without external fan and fan cover (IC 416)
• Efficiency: NEMA Premium Efficient, UL, CSA and service factor (SF) 1.15
• Insulation: thermal class 155 (temperature class F), IP55 degree of protection, utilization in accordance with thermal class 130 (temperature class B)
2-pole: 3000  at 50 Hz
0.75 ‒ 80 M 2805 2.6 IE2 ∆ 1PC1300-0DA2    ⃣  –    ⃣    ⃣    ⃣    ⃣ 9 0.00080 16
1.1 ‒ 80 M 2835 3.7 IE2 ∆ 1PC1300-0DA3    ⃣  –    ⃣    ⃣    ⃣    ⃣ 11 0.0011 16
1.5 ‒ 90 S 2885 5.0 IE2 ∆ 1PC1300-0EA0    ⃣  –    ⃣    ⃣    ⃣    ⃣ 13 0.0017 16
2.2 ‒ 90 L 2890 7.3 IE2 ∆ 1PC1300-0EA4    ⃣  –    ⃣    ⃣    ⃣    ⃣ 15 0.0021 16
3 ‒ 100 L 2905 9.9 IE2 ∆ 1PC1300-1BA4    ⃣  –    ⃣    ⃣    ⃣    ⃣ 21 0.0044 16
4 ‒ 112 M 2950 13 IE2 ∆ 1PC1300-1CA2    ⃣  –    ⃣    ⃣    ⃣    ⃣ 27 0.0092 16
5.5 ‒ 132 S 2950 18 IE2 ∆ 1PC1300-1CA0    ⃣  –    ⃣    ⃣    ⃣    ⃣ 39 0.020 16
7.5 ‒ 132 S 2950 24 IE2 ∆ 1PC1300-1DA1    ⃣  –    ⃣    ⃣    ⃣    ⃣ 43 0.024 16
11 ‒ 160 M 2955 36 IE2 ∆ 1PC1300-1DA2    ⃣  –    ⃣    ⃣    ⃣    ⃣ 67 0.045 16
15 ‒ 160 M 2955 48 IE2 ∆ 1PC1300-1DA3    ⃣  –    ⃣    ⃣    ⃣    ⃣ 75 0.053 16
18.5 ‒ 160 L 2955 60 IE2 ∆ 1PC1300-1DA4    ⃣  –    ⃣    ⃣    ⃣    ⃣ 84 0.061 16
4-pole:  1500 at 50 Hz
0.55 ‒ 80 M 1140 3.7 IE2 ∆ 1PC1300-0DB2    ⃣  –    ⃣    ⃣    ⃣    ⃣ 10 0.0017 16
0.75 ‒ 80 M 1140 5.0 IE2 ∆ 1PC1300-0DB3    ⃣  –    ⃣    ⃣    ⃣    ⃣ 11 0.0021 16
1.1 ‒ 90 S 1425 7.4 IE2 ∆ 1PC1300-0EB0    ⃣  –    ⃣    ⃣    ⃣    ⃣ 13 0.0028 16
1.5 ‒ 90 L 1435 10 IE2 ∆ 1PC1300-0EB4    ⃣  –    ⃣    ⃣    ⃣    ⃣ 16 0.0036 16
2.2 ‒ 100 L 1435 14 IE2 ∆ 1PC1300-1AB4    ⃣  –    ⃣    ⃣    ⃣    ⃣ 21 0.0086 16
3 ‒ 100 L 1455 20 IE2 ∆ 1PC1300-1AB5    ⃣  –    ⃣    ⃣    ⃣    ⃣ 25 0.011 16
4 ‒ 112 M 1455 26 IE2 ∆ 1PC1300-1BB2    ⃣  –    ⃣    ⃣    ⃣    ⃣ 29 0.014 16
5.5 ‒ 132 S 1465 36 IE2 ∆ 1PC1300-1CB0    ⃣  –    ⃣    ⃣    ⃣    ⃣ 42 0.027 16
7.5 ‒ 132 M 1465 49 IE2 ∆ 1PC1300-1CB2    ⃣  –    ⃣    ⃣    ⃣    ⃣ 49 0.34 16
11 ‒ 160 M 1470 71 IE2 ∆ 1PC1300-1DB2    ⃣  –    ⃣    ⃣    ⃣    ⃣ 71 0.065 16
15 ‒ 160 M 1475 97 IE2 ∆ 1PC1300-1DB4    ⃣  –    ⃣    ⃣    ⃣    ⃣ 83 0.083 16



P rated,
50 Hz		 P rated,
60 Hz		 Frame
size		 Operating values at rated output Aluminum series
1PC1300 ‒
Premium Efficient
version
Article No.		 ᵐIM B3 J Torque
class
n  rated,
50 Hz		 T rated,
60 Hz		 IE Class
kW kW FS rpm Nm ∆ NEW kg kgm² CL
 • Cooling: self-ventilated (IC 411) or with order code F90 forced-air cooled without external fan and fan cover (IC 416)
• Efficiency: NEMA Premium Efficient, UL, CSA and service factor (SF) 1.15
• Insulation: thermal class 155 (temperature class F), IP55 degree of protection, utilization in accordance with thermal class 130 (temperature class B)
6-pole: 1000  at 50 Hz
0.37 ‒ 80 M 925 3.85 IE2 ∆ 1PC1300-0DC2    ⃣  –    ⃣    ⃣    ⃣    ⃣ 9 0.0017 16
0.55 ‒ 80 M 935 5.6 IE2 ∆ 1PC1300-0DC3    ⃣  –    ⃣    ⃣    ⃣    ⃣ 12 0.0025 16
0.75 ‒ 90 S 925 7.7 IE2 ∆ 1PC1300-0EC0    ⃣  –    ⃣    ⃣    ⃣    ⃣ 13 0.0030 16
1.1 ‒ 90 L 935 11.2 IE2 ∆ 1PC1300-0EC4    ⃣  –    ⃣    ⃣    ⃣    ⃣ 16 0.0040 16
1.5 ‒ 100 L 970 15 IE2 ∆ 1PC1300-1AC4    ⃣  –    ⃣    ⃣    ⃣    ⃣ 15 0.011 16
2.2 ‒ 112 M 965 22 IE2 ∆ 1PC1300-1BC2    ⃣  –    ⃣    ⃣    ⃣    ⃣ 29 0.014 16
3 ‒ 132 S 970 30 IE2 ∆ 1PC1300-1CC0    ⃣  –    ⃣    ⃣    ⃣    ⃣ 38 0.024 16
4 ‒ 132 S 970 39 IE2 ∆ 1PC1300-1CC2    ⃣  –    ⃣    ⃣    ⃣    ⃣ 43 0.029 16
5.5 ‒ 160 M 970 54 IE2 ∆ 1PC1300-1CC3    ⃣  –    ⃣    ⃣    ⃣    ⃣ 52 0.037 16
7.5 ‒ 160 M 975 73 IE2 ∆ 1PC1300-1CC2    ⃣  –    ⃣    ⃣    ⃣    ⃣ 15 0.075 16
11 ‒ 160 L 975 108 IE2 ∆ 1PC1300-1DC4    ⃣  –    ⃣    ⃣    ⃣    ⃣ 93 0.098 16
