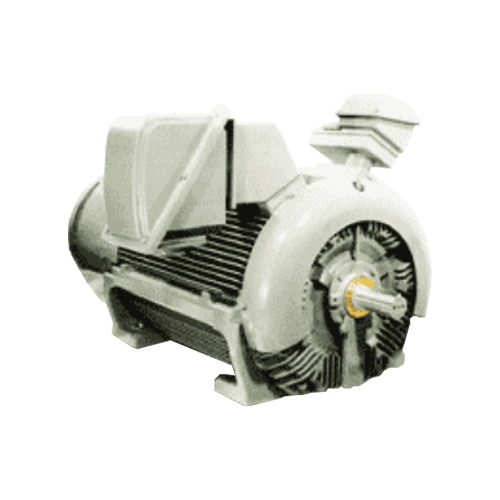

High Voltage 3 Phase Motors TECO
Features:
- Thermolastic insulation system. For unequalled dielectric strength and voltage endurance.
- Advanced Bearing system for reliable performance.
- Rugged box frame construction for strength and reliability.
- Heavy-duty Rotor construction for dependable service.
| Standard | Mounting | Voltage | Enclosure | Motor type | Description |
| NEMA | Vertical | HV | TEFC | AEHV | Cast iron frame |
| ODP | ASHV | ||||
| Horizontal | TEFC | AEHA | |||
| AEHGTK | |||||
| ODP | ASHA | ||||
| NEMA/IEC | ASJK | ||||
| ASCK | Steel Structure Frame | ||||
| WPI | AMCK | ||||
| WPII | ANCK | ||||
| TEAAC | AECK | ||||
| Vertical | AEVE | ||||
| IEC | Horizontal | TEFC | AEJK | Cast iron frame |
Type Code: AECK/AEVETOP
Standard 3-Phase Induction Motors
TEAAC High Voltage Crown Type Motors
Output 400~15,000HP (298 ~ 11,200 KW)
Pole (Speed) 2~ 12
Voltage 2200 ~ 6900V
Frequency (Hz) 50, 60
Frame Size 355 ~900
Protection Enclosure IP 55
Design Standards: IEC, BS, NEMA, CNS
Environment: non-hazardous
Type Code: AEHA / AEHVTOP
Standard 3-Phase Induction Motors
High Voltage, TEFC, NEMA Design B or C, Code G, Cast Iron Frame
Output 150 ~ 800 HP
Pole (Speed) 2 ~ 8
Voltage 2300/4000V, 3300V, 4160V
Frequency (Hz) 60
Frame Size 5007 ~ 6808
Protection Enclosure IP 55
Design Standards: NEMA MG-1, MG-13
Environment: non-hazardous
Stator Insulation: Class F insulation, SF 1.15
Type Code: AEHGTKTOP
Standard 3-Phase Global Premium Efficiency Motors
High Voltage, TEFC, NEMA Design B, Code G, Cast Iron Frame
Output 150 ~ 900 HP
Pole (Speed) 2 ~ 8
Voltage 2300/4000V, 3300V, 4160V
Frequency (Hz) 60
Frame Size 5007 ~ 6808
Protection Enclosure IP 55
Design Standards: NEMA MG-1, MG-13
Environment: non-hazardous
Stator Insulation: Class F insulation
Type Code: AEJKTOP
High Voltage Global Series Motors
REVVED Cast Iron Frame
Output 125 ~ 1000 HP (93 ~ 746KW)
Pole (Speed) 2 ~ 8
Voltage 3300V, 4160V, 6000V, 6600V
Frequency (Hz) 50, 60
Frame Size 315AA ~ 500C
Protection Enclosure IP55
Design Standards: IEC, BS
Environment: non-hazardous
Stator Insulation: Class F insulation
Type Code: ASCK / AMCK / ANCKTOP
Standard 3-phase induction motor
High Voltage Squirrel Cage
Output 300~20,000HP (224 ~ 15,000 KW)
Pole (Speed) 2~ 12
Voltage 2200 ~ 6900V
Frequency (Hz) 50, 60
Frame Size 355C ~ 900
Protection Enclosure IP 22(ODP), IP23(WPI), IPW24(WPII)
Design Standards: IEC, BS, NEMA, NEC
Environment: ODP, WPI, WPII, non-hazardous
Stator Insulation: Class F Insulation
Type Code: ASHA / ASHVTOP
Standard 3-phase induction motor
High Voltage Squirrel Cage
Output 100~1750HP
Pole (Speed) 2~ 12
Voltage 2300/4000V, 3300V, 4160V
Frequency (Hz) 60
Frame Size 444 ~ 449,
¡@¡@¡@¡@¡@¡@5007C ~ 6808B
Protection Enclosure Drip-proof (IP 22) & WPI (IP23)
Design Standards: NEMA MG-1, MG-13
Environment: non-hazardous
Stator Insulation: Class F Insulation, 80¢J at SF 1.0 & 90¢J at SF 1.15
Type Code: ASJKTOP
Standard 3-phase induction motor
High Voltage Squirrel Cage
Output 75~1250HP
Pole (Speed) 2~ 12
Voltage 2300/4000V, 3300V, 6000V
Frequency (Hz) 50, 60
Frame Size 315AA ~ 450AB
Protection Enclosure Drip-proof (IP 22)
Design Standards: IEC, BS, NEMA, JEC
Environment: non-hazardous
Stator Insulation: Class B Insulation and Class F Insulation,
complying with BS 2757 and IEC 85
