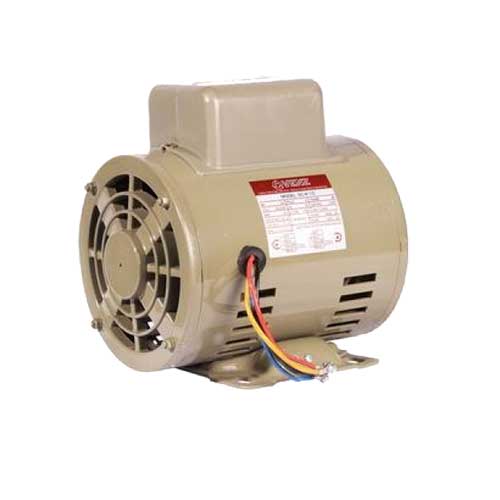

Motor VENZ SC-R SERIES Electric motor VENZ, model SC-R, 4-pole motor, INS CLASS F coil, can withstand heat up to 150 degrees. The motor can be used in environments with temperatures up to 40 degrees. High-torque motor, ultra-durable, with traction power. Good start-up, just like the SC Series. Can be used continuously, durable, low current, save a lot of electricity.
| Type | SC-R/SCRS* | |||||||
| Output | 1/2 | 1 | 1.5 | 2 | 3 | 5 | ||
| Pole | 4 | 4 | 4 | 4 | 4 | 4 | ||
| Frame No | 90 | 90 | 100 | 100 | 112 | 132M | ||
| DIMENSIONS (mm) | MOTOR | A | 120 | 130 | 160 | 160 | 190 | 216 |
| AB | 165 | 180 | 202 | 24 | 228 | 254 | ||
| AC | 166 | 166 | 190 | 193 | 227 | 258 | ||
| AD | 285 | 292 | 324 | |||||
| B | 103 | 100 | 125 | 140 | 140 | 178 | ||
| BB | 130 | 130 | 155 | 175 | 180 | 220 | ||
| C | 57 | 56 | 58 | 63 | 68 | 170 | ||
| H | 90 | 90 | 100 | 103 | 123 | 132 | ||
| HA | 3 | 3 | 130 | 15 | 18 | 20 | ||
| HC | 173 | 173 | 198 | 198 | 237 | 261 | ||
| HD | 225 | 225 | 240 | 242 | 279 | 310 | ||
| L | 274 | 301 | 385 | 420 | 435 | 512 | ||
| ØK | 10.5 | 10.5 | 12 | 11 | ||||
| X | 11.5 | 20 | 11.5 | 20 | ||||
| SHAFT END | ØD | 16 | 19 | 24 | 16 | 32 | 38 | |
| E | 40 | 40 | 50 | 40 | 60 | 80 | ||
| ED | 28 | 28 | 40 | 28 | 45 | 70 | ||
| F | 5 | 5 | 8 | 5 | 8 | 10 | ||
| G | 13 | 16 | 19 | 13 | 27 | 33.5 | ||
| GA | 18 | 21 | 27 | 31 | 35 | 41.5 | ||
| Weight | 13 | 17.8 | 28 | 38.5 | 52 | 80 | ||
| INS Class | F | F | F | F | F | F | ||
| Rating | Cont. | Cont. | Cont. | Cont. | Cont. | Cont. | ||
| Full load current (A) | 4.5 | 5.8 | 8.5 | 10.5 | 14.5 | 21.5 | ||
| Full load Speed (RPM) | 1425 | 1425 | 1425 | 1425 | 1425 | 1425 | ||
| Max amp | 40°C | 40°C | 40°C | 40°C | 40°C | 40°C | ||
| Cond (start) 250 V | 50MF | 108-130MF | 124-145MF | 124-145MF | 161-193MF | 161-193MF | ||
| Cond (run) 250 V | 10 MF | 20 MF | 20 MF | 20 MF | 25 MF | 40 MF | ||
