Motor VENZ SC SERIES
Electric motor VENZ, SC series, 4-pole motor, INS CLASS F coil, can withstand heat above 150 degrees. The motor can be used in environments with temperatures up to 40 degrees. Can be used continuously, durable, cost effective.
Facebook
Twitter
Email
Print

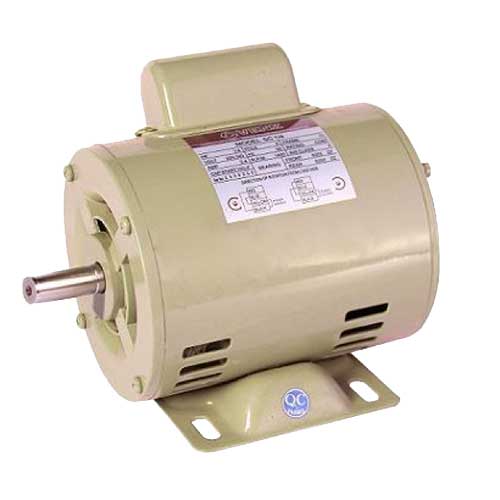

Motor VENZ SC SERIES
- Larger starting torque with relatively small starting curren
- Appropriate for machines requiring larger starting torque
- Heat capacity larger than that of split-phase motor
Specifications data VENZ SC Series
| Type | SC | |||||
| Output | 1/4 | 1/3 | 1/2 | 1 | ||
| Pole | 4 | 4 | 4 | 4 | ||
| Frame No | 71 | 71 | 90 | 90 | ||
| Dimensions (mm) | MOTOR | A | 112 | 112 | 120 | 130 |
| AB | 150 | 150 | 165 | 180 | ||
| AC | 132 | 132 | 166 | 166 | ||
| AD | ||||||
| B | 90 | 90 | 103 | 100 | ||
| BB | 116 | 116 | 130 | 130 | ||
| C | 43 | 43 | 57 | 56 | ||
| H | 70 | 70 | 90 | 90 | ||
| HA | 2 | 2 | 3 | 3 | ||
| HC | 136 | 136 | 173 | 173 | ||
| HD | 192 | 215 | ||||
| L | 205 | 215 | 274 | 301 | ||
| ØK | 9.5 | 9.5 | 10.5 | 10 | ||
| X | 15 | 15 | 11.5 | 20 | ||
| SHAFT END | ØD | 14 | 14 | 16 | 19 | |
| E | 30 | 30 | 40 | 40 | ||
| ED | 25 | 25 | 28 | 28 | ||
| F | 5 | 5 | ||||
| Q | 13 | 13 | 13 | 16 | ||
| QA | 18 | 21 | ||||
| Weight | 6.5 | 7.5 | 13 | 18 | ||
| INS Class | F | F | F | F | ||
| Rating | Cont | Cont. | Cont. | Cont. | ||
| Full load current (A) | 2.4 | 3.1 | 4.5 | 7.1 | ||
| Full load Speed (RPM) | 1425 | 1425 | 1425 | 1425 | ||
| Max amp | 40°C | 40°C | 40°C | 40°C | ||
| Cond (start) | 150 MF 125 V | 150 MF 125V | 50 MF 250 V | 400-480 MF 125 V | ||
