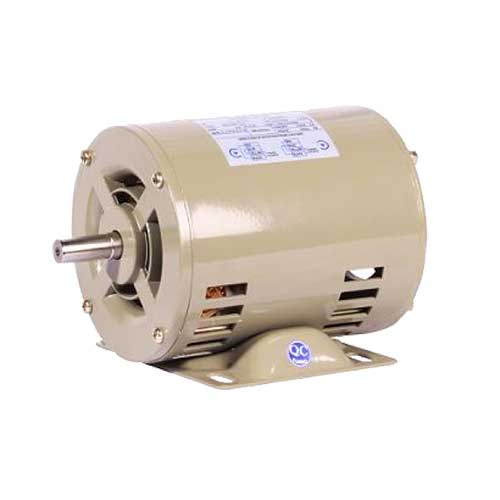

Motor VENZ SP SERIES
มอเตอร์ไฟฟ้า SP series suitable for machines that do not require a lot of starting torque. Can be used in homes and general factories. Use air pumps, suction pumps, food grinders, and general small machines.
Facebook
Twitter
Email
Print
Motor VENZ SP SERIES
- Simple structured and easy installation ฃ
- Appropriate for machines requiring less starting torque
- Not recommended for frequent operation owing to largest starting current and smallest heat capacity of auxiliary wiring
- Widely employed in homes and factories
Specifications data VENZ SP Seires
| Type | SP | ||||
| Output | 1/4 | 1/3 | 1/2 | ||
| Pole | 4 | 4 | 4 | ||
| Frame No | 71 | 71 | 71 | ||
| Dimensions (mm) | MOTOR | A | 112 | 112 | 120 |
| AB | 150 | 150 | 165 | ||
| AC | 132 | 132 | 166 | ||
| AD | |||||
| B | 90 | 90 | 103 | ||
| BB | 116 | 116 | 130 | ||
| C | 43 | 43 | 57 | ||
| H | 70 | 70 | 90 | ||
| HA | 2 | 2 | 3 | ||
| HC | 136 | 136 | 173 | ||
| HD | |||||
| L | 205 | 215 | 274 | ||
| ØK | 9.5 | 9.5 | 10.5 | ||
| X | 15 | 15 | 11.5 | ||
| SHAFT END | ØD | 14 | 14 | 16 | |
| E | 30 | 30 | 40 | ||
| ED | 25 | 25 | 28 | ||
| F | 5 | ||||
| Q | 13 | 13 | 13 | ||
| QA | 18 | ||||
| Weight | 3.5 | 7.5 | 12.8 | ||
| INS Class | F | F | F | ||
| Rating | Cont. | Cont. | Cont. | ||
| Full load current (A) | 2.4 | 3.1 | 4.5 | ||
| Full load Speed (RPM) | 1425 | 1425 | 1425 | ||
| Max amp | 40°C | 40°C | 40°C | ||
| Cond (start) | |||||
| Cond (run) | |||||
