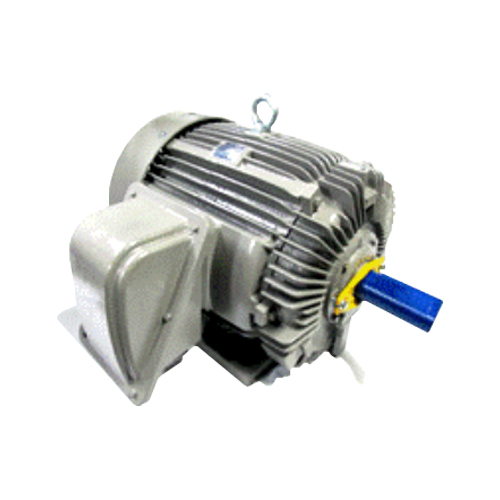

NEMA Super Premium Efficiency Motor TECO
| Standard | Voltage | Enclosure | Motor type | Efficiency |
| NEMA | LV | TEFC | AEHH4E | NEMA |
| Premium | ||||
| IEC | IE4 |
Features:
– Accord with NEMA Premium & IEC 60034-30 (IE4) standard.
– High Grade cast iron frames design.
– Lower iron loss material.
– Higher efficiency.
– Saving more energy.
– Less operation noise and vibration.
– Reducing industrial carbon (CO²) as 4,800 kg per year.
Type Code: AEHH4ETOP
High grade cast iron with two drain holes at bottom.
Low Voltage, TEFC, AS, BS Design B
Output: 1 ~ 100 HP
Pole: 2 ~ 6 Pole
Voltage 200V, 220V, 380V , 400V , 440V , 460V or Double Voltage Frequency: 50 / 60 (Hz)
Frame Size: 143T ~ 405T
Protection Enclosure IP 44
Design Standards: NEMA Premium, IEC 60034-30 (IE4)
Environment: Place: Non-Hazardous.
Ambient Temperature: -15℃ ~ 40℃.
Relative Humidity: Less than 90% RH (Non-Condensation).
Altitude: Less than 3,300 ft.
Stator Insulation: Class F Insulation.
Design Standards: BS, AS
Environment: non-hazardous
Stator Insulation: Class F Insulation, SF 1.0
