Ball Valve MUELLER BV-600-B
Ball Valve MUELLER BV-600-B

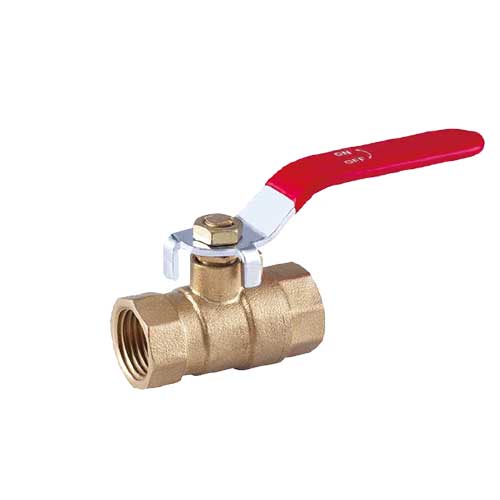

Ball Valve (Ball Valve) is a valve that acts on-off to control the flow rate of water or liquid. The valve is a sphere with a hole in the middle, with a lever handle attached to the valve to control the ball valve to be easily closed. The advantage of the ball valve is that it can close the flow of liquid completely and quickly. Convenient flow rate adjustment Easy to control, durable and available for many uses.
TECHNICAL DATA BV-600-B
| BV-600-B | WORKINK PRESSURES NON – SHOCK | ||
| Steam | Cold Water. Oil, Gas |
||
| Psing | 150 | 600 | |
| Bar | 10.3 | 41,4 | |
| BV-600-B | WORKINK PRESSURES NON – SHOCK | ||
| Shell (Water) |
Seat (Air) |
||
| Psing | 150 | 600 | |
| Bar | 10.3 | 41,4 | |
| NO. | PART NAME | MATERIAL |
| 1 | BODY | BRASS |
| 2 | BALL | BRASS |
| 3 | STEM | BRASS |
| 4 | BONNET | BRASS |
| 5 | SEAT | PTFE |
| 6 | PACKING | PTFE |
| 7 | CAP | BRASS |
| 8 | NUT | STELL |
| 9 | HANDLE | STELL |

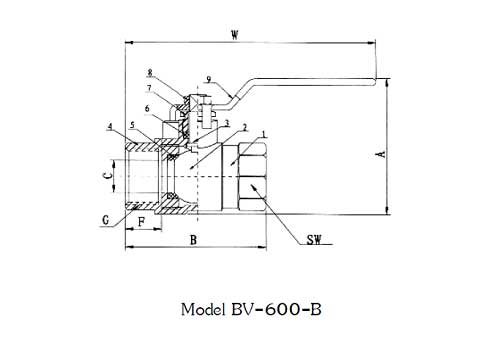

DIMENSIONS DATA BV-600-B
| Dimensions (mm) | ||||||||
| Mark/Size | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ |
| A | 35 | 50 | 56 | 64 | 74 | 85 | 95 | 108 |
| B | 41 | 45 | 50 | 54 | 62 | 75 | 81 | 91 |
| C | 7 | 11 | 12 | 17 | 21 | 25 | 29 | 38 |
| F | 10 | 10 | 13 | 14 | 14 | 14 | 16 | 17 |
| W | 70 | 100 | 110 | 119 | 139 | 170 | 180 | 190 |
| SW | 18 | 22 | 25 | 31 | 39 | 46 | 54 | 66 |
| Weight | ||||||||
| g | 80 | 130 | 160 | 230 | 335 | 570 | 815 | 1225 |
