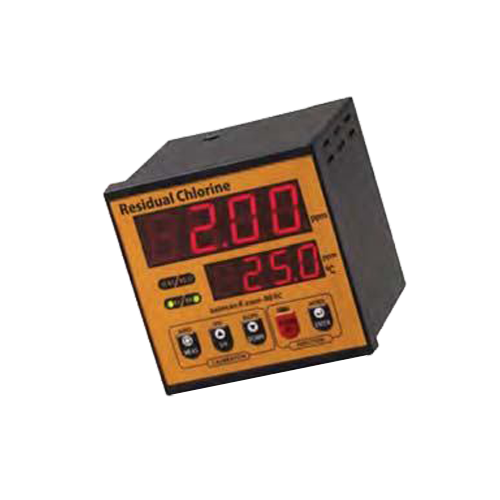

Controller SAMSAN Residual Chlorine Series
The Samsan Residual Chlorine model has a compact size 96 * 96 mm. Simple, versatile functions, increased performance, in addition to accurate inspection results with sensors and accessories, SAMSAN CONTROLLER can act as a monitoring system. To meet the use in water processes and control
Controller SAMSAN Residual Chlorine Series
1. With microprocessor control functions and design of one touch button, you can get more effective,
reliable data and very simple setting.
2. Designed for using out-put of signal and alarm (DC 4 -20㎃ or 1~5V and others).
3. With 3 or 4Digit Digital Display, Reading & Setting are very simple by appearance of each message.
4. Isolator is equipped for transmission of stable data with isolated DC4~20㎷, 1~5V output and you can connect
with personal computer and data logger directly.
5. Designed to set high and low alarm for controlling of water quality in process, waste water and your applications.
6. Equipped with Automatic Temperature Compensation for more accurate monitoring results and appearance.
7. DIN (96 x 96㎜)size for simple installation and maintenance.
8. Equipped with power switch for protection of controller by ON/OFF of power supply while setting or A/S.
9. Equipped with EEPROM, SAMSAN CONTROLLER can hold all set values of preset parameters while power is OFF
and when power become ON, they can continue to measure and monitor with all values set before.
SPECIFICATIONS DATA SAMSAN Residual Chlorine Series
SAMSAN CRN-96 RC
| Model | CRN-96 RC |
| Range | 0.0 ̴ 2.0 ppm(Option: 0.0 ̴ 5.0/10.0 ppm) |
| Sensitivity Adjustment | 0.1-0.6 ppm(±0.3 ppm) |
| Shift | ±0.5 ppm |
| Accuracy | ±3% Full Scale |
| Ambient Temperature | -5˚C ̴ 45˚C |
| Output | DC4-20nA (R.LO-500Ω), DC1-5V |
| Alarm | High, Low Relay(1a 1b) |
| Panel Cut | 92(W) x 92(H) |
| Power Source | AC100/220V ± 10%, 50/60 Hz |
Accessaries
HOLDER
SRH-10
1. Flow Rate: 0.5 ̴ 1.0L/min
2. Pressure: Inside (Less than 3Kgf/cm2) Outside (Atmosphere)
3. Materials: Acryl
4. Attachable with pH sensor (SPH-200V)and ORP sensor (SOR-400V)
SCR-600
1. No reagent type by galvanic method
2. Measuring of extricated residual chlorine
3. Conditions of mrasuring liquid
-Temperrature: 0 ̴ 40˚C
– Flow: 0.5 ̴ 1.0L/min
-pH: 6 ̴ 8pH
4. Liquid-end materials:PVC
5. Sensor’s materials
-Anode: Pt
-Cathode: Ag · Agcl
6. Lead cable: 5m (Possible to extend by 30m with our exclusive cable and connect box)
SPECIFICATIONS DATA SAMSAN Residual Chlorine Series
SAMSAN RC 2 Relay, RC 4 Relay
| Name | RC Indicating Controller (2Relays) | RC Indicating Controller (4Relays) | |
| Model | samsanK.com-96RC-F2 | samsanK.com-96RC-F4 | |
| Display (FND) | 0 ̴ 5.00 ppm | ||
| Measuring Type | Galvanic Type | ||
| Accuracy | Within ±1.5% F.S | ||
| Repeatabity | Within 0.5% F.S | ||
| Range | Residual Chlorine | 0 ̴ 5.00 ppm (Resolution:0.01 ppm) | |
| Temperature | 0 ̴ 100˚C | ||
| Using Temperature | -5˚C ̴ 45˚C | ||
| Using Humidity | Less than 90% RH | ||
| Temperature Conpensation | 0 ̴ 100˚C | ||
| Sensor Calibration | ZERO, SPAN Calibration | ||
| Power | AC85V ̴ AC250V/ 50/60Hz / Free Voltage / DC24V(Option) | ||
| Out-Put | Analog Output | DC4-20mA(Display)/ISOLATION/DC4-20mA(Option) | |
| Communication | AUTO HOLD—Sensor Cleaning Out-Put & Time Proportional Out-Put | ||
| Relay (Alam) | 2-RELAY SPDT-Relay AC250V3A MAX. | 2-RELAY SPDT-Relay AC250V3A MAX. | |
| Available with Cleaning Out-Put & Time Proportional Out-Put | |||
| Power consumption | Approx. 5VA | ||
| Case Mat’ls | Case | STEEL | |
| Front | ABS | ||
| Key Pad | Membrane | ||
| Size | 96x96x110mm | ||
| Weight | Approx. 0.5kg | ||
| Installation | PANEL MOUNT TYPE | ||
