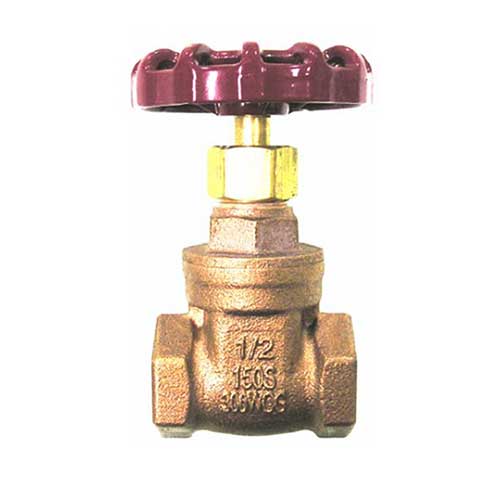

Gate Valve MUELLER 0150-SB
Gate Valve MUELLER 0150-SB
Gate Valve (Gate Valve) is a valve used for opening – closing flow in pipes. The work will move the brass plate up or down to open or close the flow. Similar to water barrier Some people call Gate Valve as Pratunam. The advantage of gate valve is Is a valve with very low friction flow when in the open position Can be used with many kinds of liquids
SPECIFICATION
- Non-rising stem
- Screwed Wedge in-bonnet
- Screwed Solid Disc
Technical Features
Nominal Pressure: 300 PSI WOG
Max.Working Temperature: 150 °C
Thread: NPT

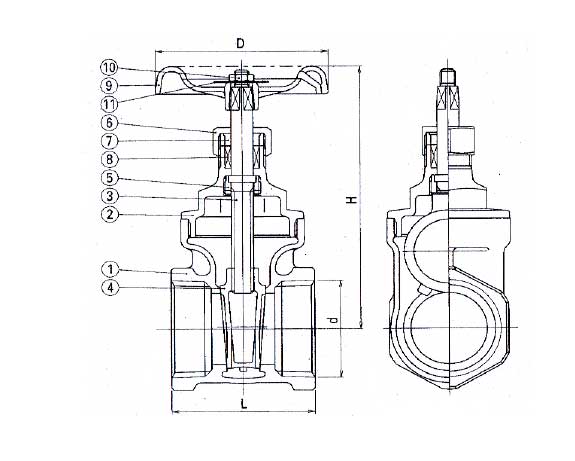

| NO. | Name of Parts | ASTM Specifications |
| 1 | Body | Bronze |
| 2 | Bonnet | Bronze |
| 3 | Stem | Brass |
| 4 | Disc | Bronze |
| 5 | Lock nut | Brass |
| 6 | Packing nut | Brass |
| 7 | Gland | Brass |
| 8 | Gland packing | PTFE |
| 9 | Hand wheel | Aluminum |
| 10 | Wheel nut | Brass |
| 11 | Name plate | Aluminum plate |
DIMENSIONS DATA MUELLER 0150-SB
| Size | L (mm) | H (mm) | D (mm) |
| 1/2″ | 43 | 78 | 55 |
| 3/4″ | 49 | 92 | 63 |
| 1″ | 54 | 103 | 63 |
| 1-1/4″ | 62 | 116 | 70 |
| 1-1/2″ | 65 | 133 | 80 |
| 2″ | 75 | 156 | 90 |
| 2-1/2″ | 87 | 190 | 110 |
