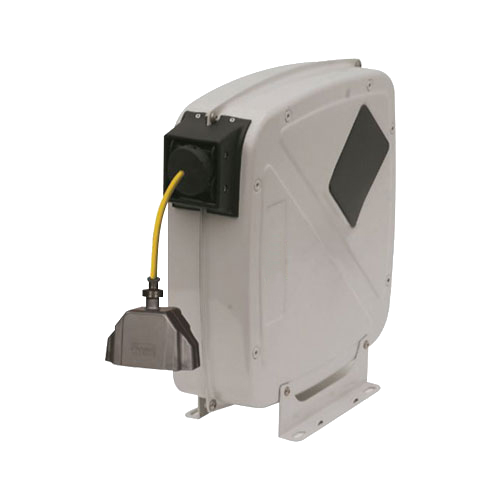

Cord Reel TWISTER PER/EER Series

Cord Reel TWISTER PER/EER Series automatic coil cable model can be conveniently used in industrial plants. Is designed to be flexible, special cables and springs and maintain rotation Easy to install and use It also increases work efficiency and makes the workplace look orderly.

Facebook
Twitter
Email
Print

Cord Reel TWISTER PER/EER Series

TWISTER PER-110,PER-115,PER-120,PER-130,PER-210,PER-215,PER-220,PER-230,EER-110,EER-115,EER-120,EER-210,EER-215,EER-110L,EER-115L,EER-120L

  • Use:All sorts of electrical work places(Service center,Factories,Laboratory)
  • Feature:Steel package type,Hanger bracket included
  • LED light for checking power supply
  • Installation:Wall,Ceiling(Within 3M height, If installed over 4M, it could not rewind.)



TWISTER PER Series Specifications

TWISTER PER-110,PER-115,PER-120,PER-130,PER-210,PER-215,PER-220,PER-230

MODEL Cable Maximum Capacity External Size (mm) Weight
MATERIAL I.D-O.D (Ø) L (M) Max (VxA) A B C
PER-110 VCTF 1.5SQx3C 10 220V-10A 440 177 360 9.8
PER-115 VCTF 1.5SQx3C 15 220V-10A 440 177 360 10.1
PER-120 VCTF 1.5SQx3C 20 220V-10A 505 177 421 11.2
PER-130 VCTF 1.5SQx3C 20 220V-10A 505 177 421 12.1
PER-210 VCTF 2.5SQx3C 10 220V-20A 440 177 360 10.3
PER-215 VCTF 2.5SQx3C 15 220V-20A 440 177 360 10.8
PER-220 VCTF 2.5SQx3C 20 220V-20A 505 177 421 12.2
PER-230 VCTF 2.5SQx3C 20 220V-20A 505 177 421 13.5



TWISTER EER Series Specifications

TWISTER EER-110,EER-115,EER-120,EER-210,EER-215,EER-110L,EER-115L,EER-120L

MODEL Cable Maximum Capacity Weight Remark
Cable Specifications L (M) Max (VxA) kg
EER-110 VCTF-1.5 SQx3C,Outlet 10 220Vx10A 12 For Indoor
EER-115 VCTF-1.5 SQx3C,Outlet 15 220Vx10A 12 For Indoor
EER-120 VCTF-1.5 SQx3C,Outlet 20 220Vx10A 14 For Indoor
EER-210 VCTF-2.5 SQx3C,Outlet 10 220Vx15A 12 For Indoor
EER-215 VCTF-2.5 SQx3C,Outlet 15 220Vx15A 14 For Indoor
EER-110L VCTF-1.5 SQx3C,Halogen Light 10 220Vx10A 12 For Indoor
EER-115L VCTF-1.5 SQx3C,Halogen Light 15 220Vx10A 12 For Indoor
EER-120L VCTF-1.5 SQx3C,Halogen Light 20 220Vx10A 14 For Indoor
