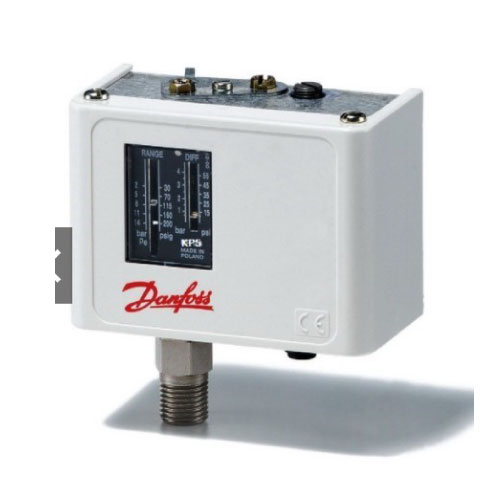

Pressure Switch DANFOSS KP 5, is designed as a single pole double throw (SPDT) system. It’s resistant to vibrations and can be used in water systems such as booster pump sets, controlling water pump pressures, as well as in air systems like air compressors.
Pressure Switch DANFOSS KP 5 or water pressure switch, is a device used to control pressure systems. It operates as a Normally Open (NO) or Normally Closed (NC) contact type without electricity. Designed as a single pole double throw (SPDT) system, it’s resistant to vibrations and can be employed in water systems such as booster pump sets for controlling water pump pressures, as well as in air systems like air compressors. It’s versatile and can function with both direct and alternating currents.
Feature Pressure Switch DANFOSS KP 5
Code : 060-117191
Regulating range
Differential : 1.8-6 bar
Reset : auto
Connection size : G ¼ A
| Pressure | Type | Low pressure (LP) | High pressure (HP) | Reset | Contact system | |||
|---|---|---|---|---|---|---|---|---|
| Regulating range (bar) | Differential Δp (bar) | Regulating range (bar) | Differential Δp (bar) | Low pressure LP | High pressure (HP) | |||
| High | KP 5 | – | – | 8 – 32 | 1.8 - 6.0 | – | Auto | SPDT |
