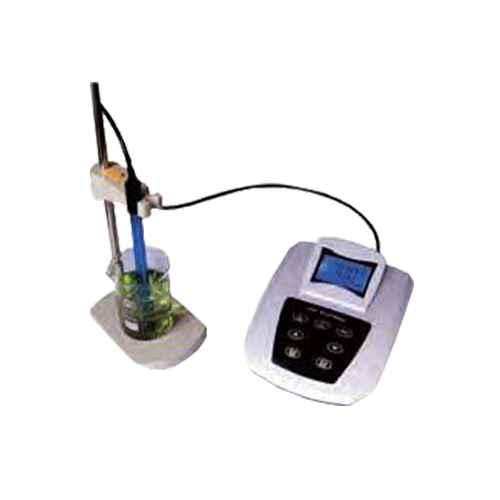

SAMSAN 3D Series
Lab. pH Meter and Conductivity Meter
Intelligent single chip design, automatic calibration, automatic or manual temperature compensation.
Backlight display, simultaneous display of pH and temperature measurement.
Electrode slope display after calibration
SAMSAN 3D Series Specifications
| Model | SAMSAN PHS-3D |
| Range | pH: 0.00 to 14.00 pH mV: ± 1999 mV Temp: 0 to 100 C |
| Resolution | pH: 0.1/0.01 pH mV: ± 1 mV Temp: 0.1°C |
| Accuracy | pH: ± 0.01 pH mV ± 0.1% full scale Temp: ± 1˚ c |
| Temperature Compensation | 0 to 100° C (manual or automatic) |
| Communication Connector | RS232 out-put |
| Storage & Record | 25 groups, records the max. and min. value |
| Power | DC 9V/300 mA |
| Buffer Solution | pH 4.00/7.00/10.01 |
| Dimension & Weight | 160 x 190 x 70mm/ 750g |

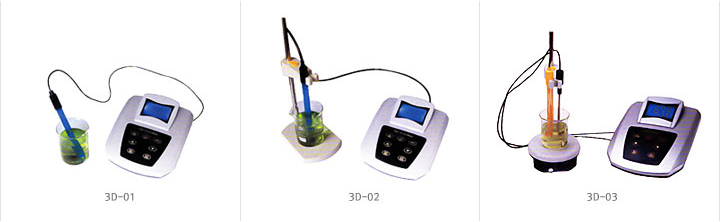

| Catalog Number | Model | Description |
| 3D-01 | SAMSAN PHS-3D | pH meter + 201-C combination electrode + buffer solution + adapter |
| 3D-02 | SAMSAN PHS-3D | “pH meter + 201B-F pH/ATC trinal combination electrode + model 600 electrode holder + buffer solution + adapter” |
| 3D-03 | SAMSAN PHS-3D | “pH meter + 201B-F pH/ATC trinal combination electrode + model 601 stirring type electrode holder + ATC electrode + buffer solution + adapter + pH-link communication software” |
DDS-11 C Lab. Conductivity Meter
Automatic calibration, ATC Employing only one conductivity electrode(K=1) to measure the full scale. Ability to select range and switch units automatically.
| Model | DDS-11C Lab. Conductivity Meter. |
| Range | 0 ̴2×105 μS/cm, divided into 4 ranges: 0 ̴199.94 μS, 2.00 ̴1999 μS, 20.0 ̴19.99mS, 20.0-199.9mS |
| Accuracy | ± 1.0%FS |
| Temperature Comoensation | (0-50° C (manual and automatic) |
| Data Storage | 50 Groups |
| Power | DC9V/300mA |
| Dimension & Weight | 160 x 190 x 70 mm / 750 g |
| Meter Kits | 2301-F Plastic Conductivity Electrode (K=1, ATC), 1408 μS/cm Conductivity Standard Solution (50ml). Model 600 Electrode Holder / 9V Power Adapter |
