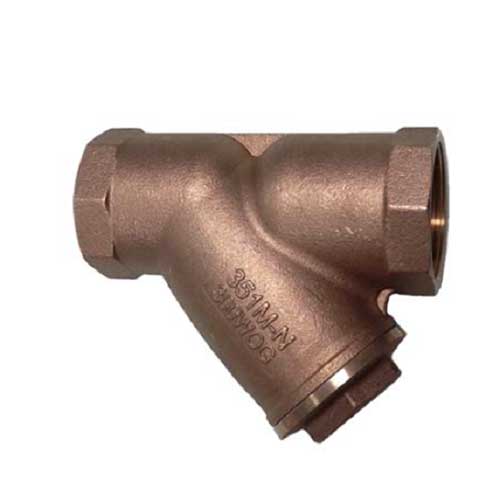

Strainer Valve MUELLER 351M-N

Strainer Valve MUELLER 351M-N

Strainer Valve MUELLER 351M-N Y Strainer, 3-way split, Y-shaped, very common in industrial wastewater systems Inside, there will be filters for impurities such as scrap metal, contaminants.

Category Tags , , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Strainer Valve MUELLER 351M-N

Strainer Valve MUELLER 351M-N

  • SERVICE RECOMMENDATIONS
    This model can be used extensively to strain foreign matter from pipelines and provide inexpensive protection for costly pumps, meters, vavles and similar equipment.
  • SCREENS
    Model 351M-N is furnished with 20 mesh [1/32″ (.80mm) openings] for water service.
  • CONSTRUCTION
    The model has machined screen seat in the body and cap to assure perfect screen alignment and easy reassembly when servicing is required. Commercial strainers in ASTM B62 Bronze. All sizes feature a straight threaded, gasketed cap.
  • SELF CLEANING
    Self cleaning is accomplished by opening the valve or cap connected to the blowoff outlet.
  • INDIVIDUALLY HYDROSTATICALLY TESTED.



MATERIALS

Body and :Cap Bronze ASTM B62
Screen : 304 Stainless Steel ASTM A240
Gasket : PTFE

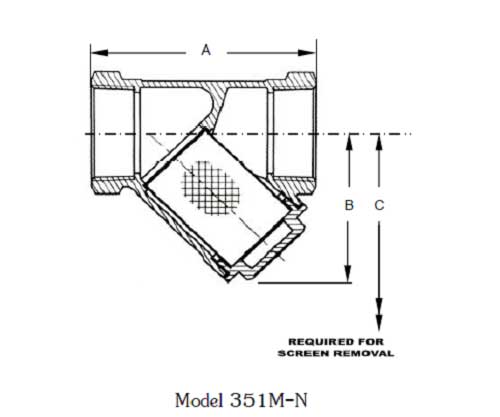

DIMENSIONS DATA MUELLER 351 M-N

mueller 351M N 1

Size in 1/2″  3/4″ 1″ 1-1/4″ 1-1/2″ 2″
mm 15 20 25 32 40 50
A in 2-15/16 3-3/8 4-1/4 4-13/16 5-5/16 6-8/16
B in 1-7/8 3-3/4 2-7/8 3-3/4 3-3/4 4-1/2
C in 3 4-1/2 5-1/2 5-1/2 6-5/16 7-7/8
Weight  Ibs. .51 .75 1.12 2.18 2.68 4.36
