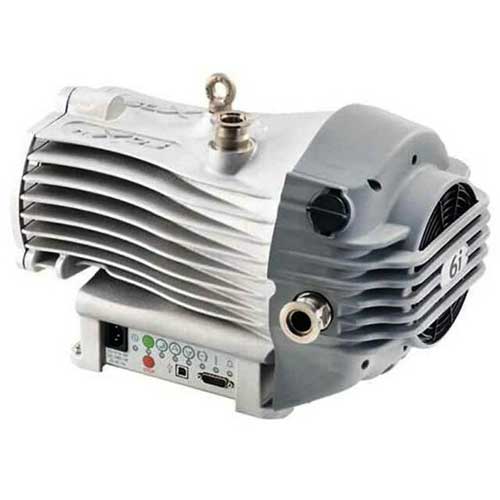

Edwards vacuum pump series nXDS is a Scroll Pump vacuum pump suitable for applications that require high cleanliness. Because without oil The vacuum can be adjusted in the range of 0.02 mbar without noise because it has a working noise level of only 52 dB (A) only. Suitable for use in research laboratories and scientific equipment.
EDWARDS nXDS Series nXDS6i, nXDS10i ,nXDS15i, nXDS20i
Using
Feature
EDWARDS nXDS Series nXDS6i, nXDS10i ,nXDS15i, nXDS20i
| Model | nXDS6i | nXDS10i | nXDS15i | nXDS20i | |
| Nominal rotational speed | 1800 rpm | ||||
| Displacement | m³h¯¹ (ft³min¯¹) | 6.8(4.0) | 12.7 (7.5) | 17.1 (10.1) | 28.0 (16.5) |
| Peak pumping speed | m³h¯¹ (ft³min¯¹) | 6.2 (3.6) | 11.4 (6.7) | 15.1 (8.9) | 22.0 (13.0) |
| Ultimate vacuum (total pressure) | mbar(Torr) | 0.020 (0.015) | 0.007 (0.005) | 0.007 (0.005) | 0.030 (0.022) |
| Minimum standby rotational speed | rpm | 1200 | |||
| Speed control resolution (percentage of full rotation speed) | % | 1 | |||
| Max inlet pressure for water vapour | mbar | 35 | 35 | 35 | 20 |
| Max water vapour pumping rate | gh¯¹ | 110 | 145 | 240 | 220 |
| Maximum continuous inlet pressure | mbar | 200 | 200 | 200 | 50 |
| Voltage input | V | 100-127, 200-240 (+/-10%) | |||
| Voltage frequency | Hz | 50/60 | |||
| Motor power 1-ph* | W | 260 | 280 | 300 | 260 |
| Power connector 1-ph | IEC EN60320 C13 | ||||
| Recommended fuse | 10A, 250V a.c. rms | ||||
| Weight | kg (lb) | 26.2 (58) | 25.8 (57) | 25.2 (56) | 25.6 (56) |
| Inlet flange | NW25 | ||||
| Exhaust flange | NW25 | ||||
| Noise level** | dB(A) | 52 | |||
| Vibration at inlet flange | mms¯¹ (rms) | < 4.5 | |||
| Leak tightness (static) | mbar ls¯¹ | < 1×10¯⁶ | |||
| Operating temperature range | °C (°F) | +5 to +40 (+41 to +104) | |||
* Typical. See graphs on page 6.
** For low fan speed, typical at ultimate end when load/ambient conditions allow.
