Vacuum Pump Edwards RV Series
Vacuum pump Edwards series RV is a rotary vane pump with a vacuum value of up to 0.002 mbar without noise during operation. It also has Anti-Suck Back Protection. Eliminate the problem of oil contamination in the system Easy maintenance Suitable for use in research laboratories and scientific equipment
Facebook
Twitter
Email
Print
Vacuum Pump EDWARDS RV Series
EDWARDS RV Series RV3 ,RV5, RV8 ,RV12
Usage condition EDWARDS RV Series RV3 ,RV5, RV8 ,RV12
- Examination and use in substances analysis
- Science laboratory
- There is a backup system for the pump.
- Drying work
- Product research and development
Feature EDWARDS RV Series RV3 ,RV5, RV8 ,RV12
- High working efficiency
- Save working time of use
- Vacuum can be configured as required
- Continuously working
- Easy maintenance
- Run smoothly without causing noise
- The motor works well in all frequencies.
- Can control the oil pressure to not exceed the set value.
- Stop working when overload within 0.4 seconds
EDWARDS RV Series Vacuum Pump Specifications
EDWARDS RV Series RV3 ,RV5, RV8 ,RV12
| Model | Hz | Units | RV3 | RV5 | RV8 | RV12 |
| Peak pumping speed | 60 | cfm | 2.3 | 3.6 | 5.9 | 8.4 |
| 50 | m³/h | 3.3 | 5.1 | 8.5 | 12 | |
| Ultimate pressure (Total) | 60 | Torr | 1.5 x 10¯³ (1.5 x 10¯² with Fomblin®) | |||
| 50 | mbar | 2.0 x 10¯³ (2.0 x 10¯² with Fomblin®) | ||||
| Ultimate pressure GB I (Total) | 50/60 | Torr | 2.3 x 10¯² | |||
| mbar | 3.0 x 10¯² | |||||
| Ultimate pressure GB II (Total) | 50/60 | Torr | 9.1 x 10¯² | 9.1 x 10¯² | 4.6 x 10¯132 | 9.1 x 10¯² |
| mbar | 1.2 x 10¯¹ | 1.2 x 10¯¹ | 6.0 x 10¯² | 1.2 x 10¯¹ | ||
| High throughput mode | 50/60 | Torr | 2.3 x 10¯² | |||
| mbar | 3.0 x 10¯² | |||||
| Water vapour tolerance | Torr | 60 | 38 | 38 | 24 | |
| mbar | 80 | 50 | 60 | 32 | ||
| Water vapour capacity – GBI | g/h | 60 | 60 | 60 | 60 | |
| Water vapour capacity – GB II | g/h | 220 | 220 | 220 | 290 | |
| Motor data | ||||||
| Motor rating 1 phase (nominal) | 60 | w | 550 | |||
| 50 | w | 450 | ||||
| Motor rating 3 phase | 60 | w | 300 | 300 | 550 | 550 |
| 50 | w | 250 | 250 | 450 | 450 | |
| Nominal rotation speed | 60 | rpm | 1800 | |||
| 50 | rpm | 1500 | ||||
| Physical data | ||||||
| Weight | lb | 55 | 55 | 61.6 | 63.8 | |
| kg | 25 | 25 | 28 | 29 | ||
| Oil capacity | liters | 0.7 | 0.7 | 0.75 | 1 | |
| Oil type (Ultragrade) | 19 | |||||
| Inlet flange | NW25 | |||||
| Exhaust flange | NW25 | |||||
| Noise level | 50 Hz | dB (A) | 48 | |||
| Noise level (with Acoustic Enclosure)* | 50 Hz | dB (A) | 41 | |||
| Operating temperature range | ˚C | 12 to 40 | ||||
* approximate noise reduction of 7 dB(A)

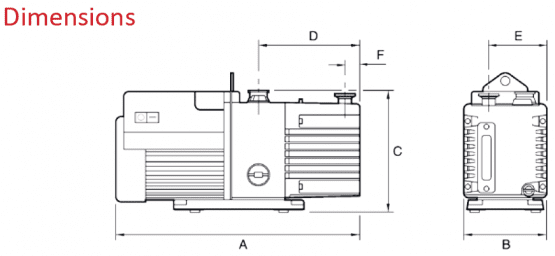

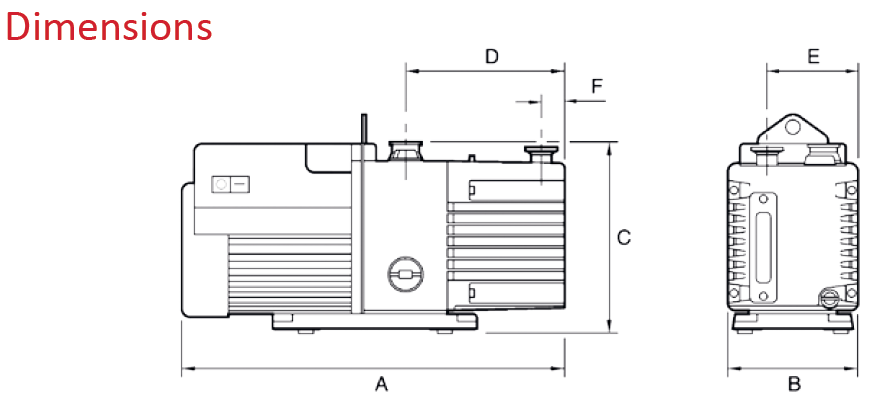

EDWARDS RV Series Vacuum Pump Dimensions
EDWARDS RV Series RV3 ,RV5, RV8 ,RV12
| Model | A | B | C | D | E | F |
| RV3 | 430(16.93) | 158(6.22) | 225(8.86) | 156(6.41) | 111(4.37) | 29(1.14) |
| RV5 | 430(16.93) | 158(6.22) | 225(8.86) | 156(6.41) | 111(4.37) | 29(1.14) |
| RV8 | 470(18.50) | 158(6.22) | 225(8.86) | 156(6.41) | 111(4.37) | 35(1.38) |
| RV12 | 490(19.29) | 158(6.22) | 225(8.86) | 156(6.41) | 111(4.37) | 35(1.38) |
