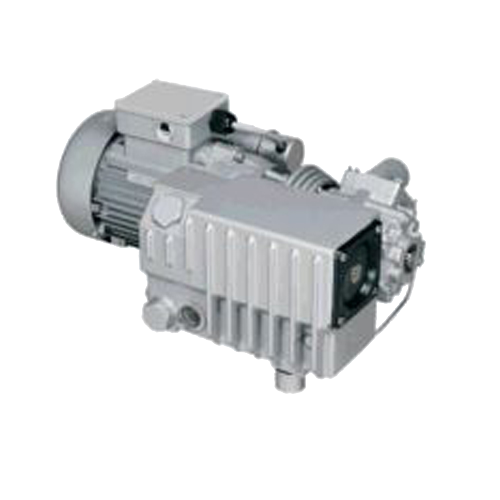

Vacuum Pump HO HSING CP Series
HO HSING CP Rotary Vane Vacuum Pump has both single phase and three phase systems suitable for the food industry, packaging applications. Drying products imported from Taiwan
Facebook
Twitter
Email
Print
Vacuum Pump HO HSING CP Series
Vacuum Pump HO HSING CP Series HO HSING CP10-410 ,CP10-510 ,CP10-450 ,CP10-550 ,CP10-420 ,CP10-520 ,CP20-420 ,CP20-620 ,CP30-620 ,CP40-420 ,CP40-620
- Structure designed to be easy to install and maintain
- Multi-layer filtering system ensuring lubricant leak prevention (less than 0.1%
- The pump is driven by a motor with high efficiency Cooled by natural wind Does not need water to help
- All parts are manufactured from strict quality control procedures Makes a quiet sound when turning And the high speed of the pump
- This pump is widely used in food processing, hospital packing, hot forming, printing, PCB testing, material handling using vacuum systems.
Ho Hsing CP10-40 Series 50 Hz Specifications
| Phase | Voltage | Model | Hz | Rated Output | Rate Current | Ultimate Pressure | Nominal Capacity | Noise Level |
| KW | Amps | mbar | m3/h | dB(A) | ||||
| Single | 100-120 /200-240 | HO HSING CP10-410 | 50 | 0.76 | 11.3 / 5.7 | 20 | 20 | 72 |
| HO HSING CP10-510 | 11.3 / 5.7 | 2 | ||||||
| 200-240 | HO HSING CP10-450 | 5.9 | 20 | |||||
| HO HSING CP10-550 | 2 | |||||||
| Three△-Y | 220-240 /380-440 | HO HSING CP10-420 | 2.4 / 1.4 | 20 | ||||
| HO HSING CP10-520 | 2 | |||||||
| HO HSING CP20-420 | 1.1 | 5.6 / 3.2 | 20 | 40 | 70 | |||
| HO HSING CP20-620 | 0.5 | |||||||
| HO HSING CP30-620 | 1.5 | 6.2 / 3.6 | 0.5 | 63 | 74 | |||
| HO HSING CP40-420 | 3 | 9.5-10 / 5.4-6.2 | 20 | 100 | 74 | |||
| HO HSING CP40-620 | 3 | 9.5-10 / 5.4-6.2 | 0.5 | 100 | 74 |
Ho Hsing CP10-40 Series 60 Hz Specifications
| Phase | Voltage | Model | Hz | Rated Output | Rate Current | Ultimate Pressure | Nominal Capacity | Noise Level |
| KW | Amps | mbar | m3/h | dB(A) | ||||
| Single | 100-120 /200-240 | HO HSING CP10-410 | 60 | 0.92 | 11 / 5.5 | 20 | 24 | 72 |
| HO HSING CP10-510 | 2.0 | |||||||
| 200-240 | HO HSING CP10-450 | 5.2 | 20 | |||||
| HO HSING CP10-550 | 2.0 | |||||||
| Three△-Y | 220-240 /380-440 | HO HSING CP10-420 | 2.4 / 1.4 | 20 | ||||
| HO HSING CP10-520 | 2.0 | |||||||
| HO HSING CP20-420 | 1.50 | 4.6 / 2.7 | 20 | 48 | 74 | |||
| HO HSING CP20-620 | 0.5 | |||||||
| HO HSING CP30-620 | 2.20 | 5 / 2.9 | 0.5 | 76 | 76 | |||
| HO HSING CP40-420 | 3.45 | 13.1-12.2 / 6.8-6.7 | 20 | 120 | 76 | |||
| HO HSING CP40-620 | 3.45 | 13.1-12.2 / 6.8-6.7 | 0.5 | 120 | 76 |
