Vacuum Pump OP CV/CVD Series
vacuum pump OP model CV/CVD is especially suitable for industrial applications. Medical work or laboratory research Because of its high suction efficiency, quiet running, low pressure and high durability
Facebook
Twitter
Email
Print

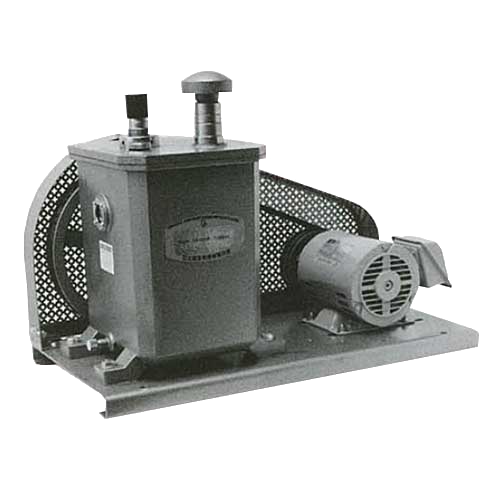

Vacuum Pump OP CV Series
OP CV-0N(E),CV-1N(E),CV-2(E),CV-3NII(E),CVD-1,CVD-2,CVD-3
qualification
- Easy maintenance
- durable
- Quiet operation Low vibration
- High working efficiency
OP CV/CVD Series Specifications
OP CV-0N(E),CV-1N(E),CV-2(E),CV-3NII(E),CVD-1,CVD-2,CVD-3
| Model | CV-0N(E) | CV-1N(E) | CV-2(E) | CV-3NII(E) | CVD-1 | CVD-2 | CVD-3 | |
| Free Air Displacement | l/min | 25 | 60 | 150 | 350 | 60 | 180 | 360 |
| Pump Speed | min-1 | 850 | 770 | 690 | 600 | 600 | 600 | 600 |
| Motor | kW | 0.1 | 0.2 | 0.4 | 0.75 | 0.2 | 0.4 | 0.75 |
| Ultimate Pressure | Pa | 1.1 | 1.1 | 1.1 | 1.1 | 0.067 | 0.067 | 0.067 |
| E Type | 670 | 670 | 670 | 13 | ||||
| Intake Connection | mm | 7 | 11 | 12 | 24.5 | 22 | 28 | 28 |
| Oil Capacity | l | 0.6 | 1.6 | 2.9 | 7 | 0.9 | 1.6 | 2.3 |
| Weight (Pump Only) | kg | 3.2 | 7.6 | 14 | 33.6 | 15 | 26 | 29 |
| E Type | 3.2 | 7.9 | 14.6 | 36.7 | ||||
| Weight With Motor | kg | 12 | 20 | 30 | 60 | 27 | 41 | 51 |
| E Type | 12 | 20 | 30 | 60 | ||||
| Motor Pulley | 50/60 Hz | 65/54 | 89/69 | 89/76 | 127/102 | 60.5/50.5 | 63.8/51 | 76.8/63 |
| V-Belt | M1 | A1 | A1 | A2 | M1 | A1 | A1 | |
OP CV Series Dimensions
OP CV-0N(E),CV-1N(E),CV-2(E),CV-3NII(E),CVD-1,CVD-2,CVD-3
Pump Only Dimensions (Unit mm)
| Model | A | B | C | D | E | F | G | H |
| CV-0N (E) | 140 | 164 | 119 | 106 | 105Ø | 56 | 190 (215) | 8Ø |
| CV-1N (1E) | 180 | 224 | 152 | 138 | 156Ø | 95 | 273 (295) | 9Ø |
| CV-2 (E) | 240 | 257 | 210 | 114 | 190Ø | 106 | 340 (375) | 9Ø |
| CV-3NII (E) | 306 | 335 | 266 | 160 | 284Ø | 152 | 435 (470) | 10Ø |
| CVD-1 | 160 | 235 | 135 | 95 | 149Ø | 85 | 225 | 10Ø |
| CVD-2 | 220 | 270 | 190 | 100 | 152Ø | 95 | 278 | 10Ø |
| CVD-3 | 220 | 346 | 190 | 135 | 172Ø | 111 | 294 | 10Ø |
With Common Bed Dimensions (Unit mm)
| Model | A | B | C | D | E | F |
| CV-0NB (E) | 310 | 215 | 230(255) | 200 | 190 | 9Ø |
| CV-1NB (1E) | 450 | 275 | 308(330) | 250 | 240 | 9Ø |
| CV-2B (E) | 500 | 315 | 375(410) | 300 | 270 | 9Ø |
| CV-3NIIB (E) | 665 | 340 | 470(505) | 535 | 308 | 11Ø |
| CVD-1B | 453 | 245 | 250 | 370 | 160 | 10Ø |
| CVD-2B | 538 | 284 | 313 | 445 | 190 | 12Ø |
| CVD-3B | 548 | 361 | 329 | 455 | 230 | 12Ø |
