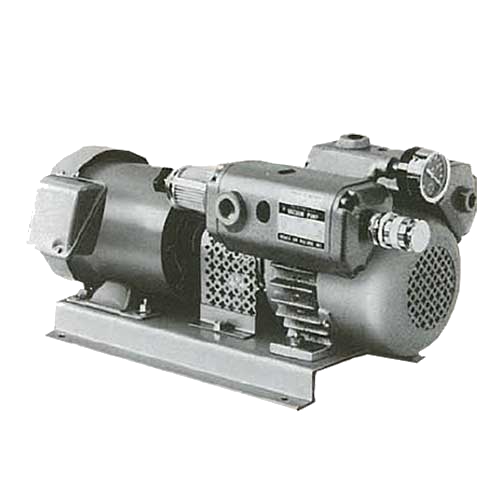

Vacuum Pump OP DV/DVB Series
OP DV-00,DV-0,DV-1,DV-2,DVB-0,DVB-1
Features: This type (DV)
- Is oilless and can be maintained easily, for it has self-lubricating and -wear resistance special-carbon-vanes.
- Has the pressure regulating valve.
- Can keep clean anvironment for oilless type.
- Is of easy use for direct coupling type with electric motor.
- Is equipped with the suction filter and the exhaust silencer.
This type (DVB)
- has 2-way functions-a vacuum pupm and a blower, and is compact.
- Is of easy use for direct coupling type with electric motor.

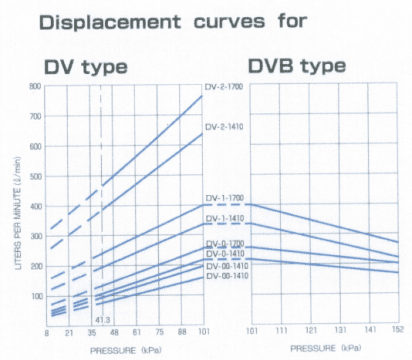

OP DV/DVB Series Performance Curve
OP DV-00,DV-0,DV-1,DV-2,DVB-0,DVB-1
OP DV/DVB Series Specifications
OP DV-00,DV-0,DV-1,DV-2,DVB-0,DVB-1
Specifications Table A1
| Model | Free Air Displacement l/min | Common use Pressure | Free Air Pressur | Motor | |
| 50Hz | 60Hz | kPa | kPa | kW | |
| DV-00 | 135 | 155 | ˜41.3 | – | 0.2 |
| DV-0 | 200 | 250 | ˜41.3 | – | 0.4 |
| DV-1 | 300 | 370 | ˜41.3 | – | 0.75 |
| DV-2 | 580 | 700 | ˜41.3 | – | 1.5 |
| DVB-0 | 200 | 250 | ˜41.3 | 147 | 0.4 |
| DVB-1 | 300 | 370 | ˜41.3 | 147 | 0.75 |
Specifications Table A2
| Model | Motor Speed min-1 | Intake Connection | Exhaust Connection | Weight | |
| 50Hz | 60Hz | kg | |||
| DV-00 | 1410 | 1700 | 8-Mar | – | 10.5 |
| DV-0 | 1410 | 1700 | 8-Mar | – | 22 |
| DV-1 | 1410 | 1700 | 4-Mar | – | 33 |
| DV-2 | 1410 | 1700 | 4-Mar | – | 49 |
| DVB-0 | 1410 | 1700 | 8-Mar | 8-Mar | 22.5 |
| DVB-1 | 1410 | 1700 | 4-Mar | 8-Mar | 33.5 |

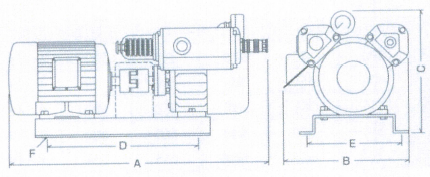

OP DV/DVB Series Dimensions
OP DV-00,DV-0,DV-1,DV-2,DVB-0,DVB-1
*** Unit mm
| MODEL | A | B | C | D | E | F |
| DV-00 | 277 | 150 | 210 | 80 | 100 | 7Ø |
| DV-0 | 445 | 240 | 265 | 300 | 206 | 9Ø |
| DV-1 | 563 | 269 | 260 | 330 | 206 | 9Ø |
| DV-2 | 655 | 280 | 290 | 410 | 221 | 9Ø |
