Vacuum Pump OP KV Series
vacuum pump OP KV model, designed to be durable And easy to maintain Able to suck air from 550 – 3700 liters / minute, motor power from 0.75 – 5.5 kW
Facebook
Twitter
Email
Print

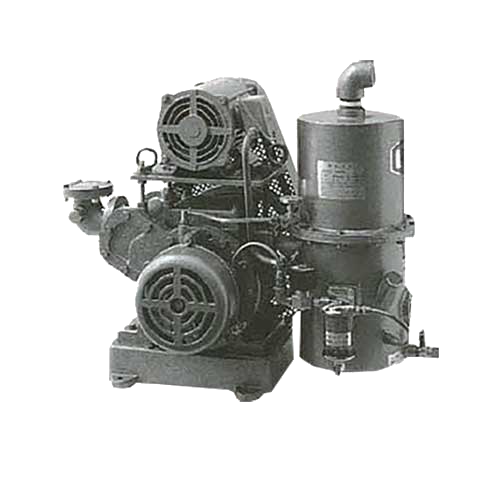

Vacuum Pump OP KV Series
OP KV-1A(S),KV-2(S),KV-3(S),KV-5WII(S),KV-7(S)
- Easy to maintain
- durable use
- High air suction efficiency
- Oil lubrication system

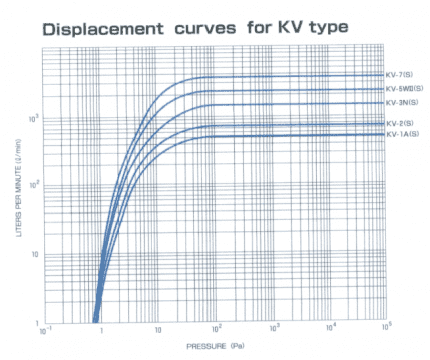

OP KV Series Performance Curve
OP KV-1A(S),KV-2(S),KV-3(S),KV-5WII(S),KV-7(S)
OP KV Series Specifications
OP KV-1A(S),KV-2(S),KV-3(S),KV-5WII(S),KV-7(S)
| Model | KV-1A(S) | KV-2(S) | KV-3(S) | KV-5WII(S) | KV-7(S) | |
| Free Air Displacement | l/min | 550 | 800 | 1500 | 2500 | 3700 |
| Motor | kW | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 |
| Ultimate Pressure | /min | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Pump Speed | Pa | 410 | 450 | 500 | 410 | 410 |
| Intake Connection (Vacuum Flang) | 40 | 50 | 50 | 80 (V●G) | 80 (V●G) | |
| Exhaust Connrction | PT1 | PT1¼ | PT1¼ | PT2 | 80 (V●G) | |
| Oil Capacity | l | 2.6 | 4.4 | 5 | 13 | 16 |
| Cooling Water | l/min | – | – | – | 5 | 8 |
| Weight (w/out motor) | kg | 72 | 93 | 129 | 326 | 387 |
| Motor Pulley | 50/60 Hz | 76/63 | 76/63 | 114/94 | 114/98 | 136/114 |
| V-Belt | 50/60 Hz | A2-43 | A2-45 | A3-53/52 | B2-72/71 | B3-80/79 |
| Noize (at 1.3kPa) | dB (A) | 59 | 62 | 64 | 64 | 67 |

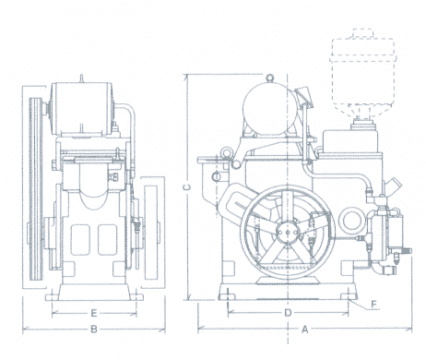

OP KV Series Dimensions
| MODEL | A | B | C | D | E | F |
| KV-1AS | 620 | 340 | 570 | 230 | 220 | 4-12 Ø |
| KV-2S | 700 | 455 | 585 | 250 | 270 | 4-12 Ø |
| KV-3NS | 811 | 495 | 690 | 270 | 280 | 4-12 Ø |
| KV-5WII | 885 | 590 | 940 | 500 | 350 | 4-12 Ø |
| KV-7 | 853 | 640 | 1036 | 515 | 216 | 4-12 Ø |
