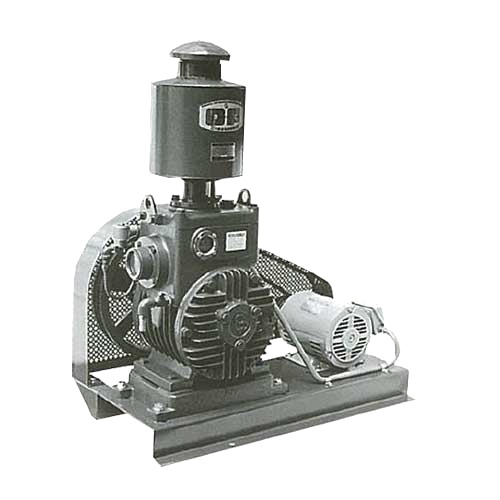

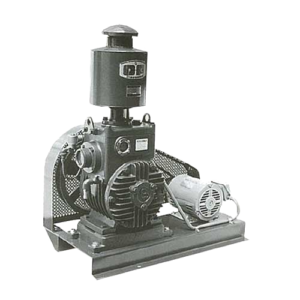

Vacuum Pump OP Series RV, Rotary Vane, oil-based, suitable for large factories In the heavy industry such as the dry food industry that requires constant moisture absorption Able to absorb air for a long time, durable, not weary
OP RV-1N,RV-2A,RV-2W,RV-3,RV-10,RV-15
OP RV-1N,RV-2A,RV-2W,RV-3,RV-10,RV-15
| Model | RV-1N | RV-2A | RV-2W | RV-3 | RV-10 | RV-15 | |
| Free Air Displacement | l/min | 360 | 800 | 800 | 1200 | 4500 | 7000 |
| Motor | kW | 0.75 | 1.5 | 1.5 | 2.2 | (6P) 7.5 | (6P) 11 |
| Ultimate Pressure | /min | 13 | 13 | 13 | 13 | 13 | 13 |
| Pump Speed | Pa | 350 | 450 | 450 | 600 | 300 | 460 |
| Intake Connection | min-1 | PT1½ | PT2 | PT2 | PT2 | 100 (V●F) | 100 (V●F) |
| Exhaust Connrction | PF1½ | PF3 | PF3 | PF3 | 100 (V●F) | 100 (V●F) | |
| Oil Capacity | l | 2 | 3.2 | 3.2 | 3.2 | 33 | 33 |
| Cooling Water | l/min | – | – | 5 | 5 | 10 | 15 |
| Water Intake Connection | – | – | 8-Mar | 8-Mar | 2-Jan | 2-Jan | |
| Weight (Pump Only) | kg | 57 | 104 | 122 | 122 | 308 | 308 |
| Weight (W/Base) | kg | 70 | 132 | 150 | 150 | 461 | 464 |
| Motor Pulley | 50/60 Hz | 89/76 | 114/102 | 114/102 | 140/127 | 140/114 | 203/178 |
| V-Belt | A2-60 | A2-64 | A2-64 | A2-66/65 | B4-106 | C3-109 | |
| Noize (at 1.3kPa) | dB (A) | 75 | 80 | 76 | 84 | 68 | 70 |
OP RV-1N,RV-2A,RV-2W,RV-3,RV-10,RV-15
Pump Only
| Model | A | B | C | D | E | F | G | H | I |
| RV-1N | 270 | 232 | 200 | 200 | 340 | 190 | 355Ø | 695 | 11Ø |
| RV-2A | 380 | 216 | 340 | 170 | 426 | 205 | 355Ø | 880 | 14Ø |
| RV-2W, 3 | 380 | 216 | 340 | 170 | 443 | 215 | 360Ø | 810 | 14Ø |

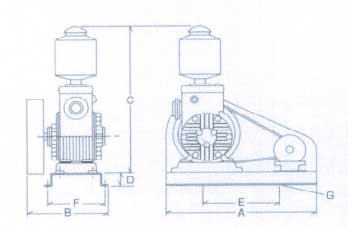

With Common Bed
| Model | A | B | C | D | E | F | G |
| RV-1NB | 710 | 350 | 730 | 35 | 630 | 322 | 11Ø |
| RV-2AB | 800 | 450 | 955 | 75 | 400 | 304 | 15Ø |
| RV-2WB, 3B | 800 | 465 | 885 | 75 | 400 | 304 | 15Ø |
| RV-10,15 | 1350 | 648 | 860 | 80 | 1100 | 530 | 19Ø |
