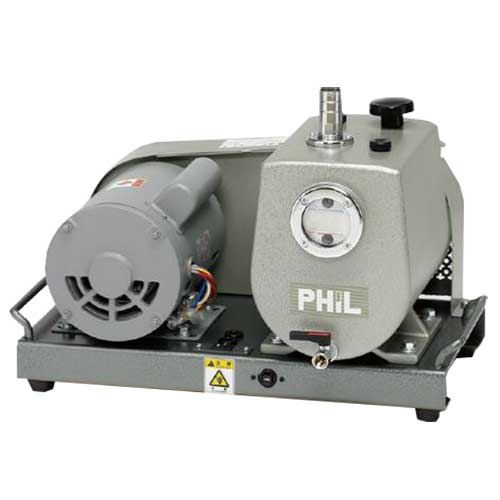

Vacuum Pump PHIL USW Series
Vacuum pump Phil series USW rotary driven belt drive (Direct Drive Rotary Vane Vacuum Pump) working with TWO Stage. The pump is attached to the motor, durable, can remove moisture from the wrong process until the air is negative. Suitable for the chemical industry, electrical and electronic industry, food industry, chemicals and pharmaceuticals
Facebook
Twitter
Email
Print
Vacuum Pump PHIL USW Series
PHIL USW-20,USW-50,USW-100,USW-150,USW-300,USW-500,USW-650,USW-960,USW-1500
- Strong and safe
- High efficiency at work The electrical connection system is a direct connection type. The rotation of the rotor has a speed of 600 revolutions per minute.
- This model has 2 magic tricks of different sizes to be used to drive and lubricate with oil as well.
PHIL USW Series Specifications
PHIL USW-20,USW-50,USW-100,USW-150,USW-300
| MODEL | PHIL USW-20 | PHIL USW-50 | PHIL USW-100 | PHIL USW-150 | PHIL USW-300 | |
| Motor | Kw | 0.2 | 0.2 | 0.3 | 0.4 | 0.75 |
| Volt | 220 V | |||||
| Max Vacuum | Pa | 1×10-1 | 6.7×10-2 | 6.7×10-2 | 6.7×10-2 | 6.7×10-2 |
| Max Flow | Litre/min | 20 | 50 | 100 | 150 | 300 |
| Pump Speed | PPM | 600 | 600 | 600 | 600 | 600 |
| Inlet Port | In | 16 | 16 | 23 | 23 | 30 |
| Oil Filling | Litre | 1.2 | 1.2 | 2.1 | 2.4 | 2.8 |
| กxยxส | mm | 230x365x295 | 272x365x295 | 293x450x323 | 450x328x323 | 327x482x410 |
PHIL USW Series Specifications
PHIL USW-500,USW-650,USW-960,USW-1500
| MODEL | PHIL USW-500 | PHIL USW-650 | PHIL USW-960 | PHIL USW-1500 | |
| Motor | Kw | 0.75 | 1.5 | 1.5 | 2.2 |
| Volt | 220 V | ||||
| Max Vacuum | Pa | 6.7×10-2 | 6.7×10-2 | 6.7×10-2 | 6.7×10-2 |
| Max Flow | Litre/min | 500 | 650 | 800 | 1300 |
| Pump Speed | PPM | 600 | 720 | 900 | 1440 |
| Inlet Port | In | 30 | 30 | VG-50A | VG-50A |
| Oil Filling | Litre | 4 | 4 | 7.3 | 7.3 |
| กxยxส | mm | 396x482x410 | 396x509x410 | 473x610x513 | 473x610x563 |
