Submersible Pump Tsurumi 40PU Series
submersible sewage pump in the septic tank, safe tank is a pump designed to run and stop automatically. Without having an electrical control cabinet to control the operation of the pump The inside of the pump has Low-voltage electrical circuits control the operation of the pump.
Submersible Pump Tsurumi PU SERIES
TSURUMI PU Series TSURUMI 40PU2.15S,TSURUMI 40PU2.15,TSURUMI 40PU2.25S,TSURUMI 40PU2.25
Submersible Pump from Tsurumi (Japan) Recognized in the industry Sewage treatment system And various pumping tasks Certified by the Thai Industrial Standards Institute Of Japan which is equivalent to international standards Tsurumi water pump Available and widely used around the world, which Yong Hong (Thailand) Company Limited is an importer And distributors in Thailand By having a complete after-sales service, both technicians and spare parts that are ready to service
PU-series submersible sewage pump in the septic tank, safe tank is a pump designed to run and stop automatically. Without having an electrical control cabinet to control the operation of the pump The inside of the pump has Low-voltage electrical circuits control the operation of the pump. In relation to The work of the external float ball, pump and water level in the pump are highly secure with low-voltage electronic control circuits and durable to use. The shirt is made of stainless steel, lightweight, easy to move, with both light
This pump is not only lightweight but also highly resistant to corrosion, using a Vortex Impeller.
And the large passage makes it easy to drain liquids that are contaminated with foreign matter as well. Suitable for pumping waste water in a septic tank, safe tank and general drainage work. That needs convenience In use and save installation time Available from 0.25 – 3.7 kilowatts (0.3 – 5 horsepower), pipe sizes from 40-80 millimeters.
Single Phase (220V) : 40PU2.15S,40PUA2.15S,40PUW2.15S, 40PU2.25S,40PUA2.25S,40PUW2.25S
Three Phase (380V) : 40PU2.15,40PUA2.15,40PUW2.15 ,40PU2.25,40PUA2.25,40PUW2.25
TSURUMI 40PU Series Submersible Pump Specifications
TSURUMI PU Series TSURUMI 40PU2.15S,TSURUMI 40PU2.15,TSURUMI 40PU2.25S,TSURUMI 40PU2.25
| MODEL | Standart Model | Automatic | Auto-alternation | Motor Output | Phase | Stating Method | Solids Passage |
| (kW.) | (mm.) | ||||||
| TSURUMI 40PU | 40PU2.15S | 40PUA2.15S | 40PUW2.15S | 0.15 | Single | Capacitor Run | 3 |
| 40PU2.15 | 40PUA2.15 | 40PUW2.15 | 0.15 | Three | D.O.L. | 3 | |
| 40PU2.25S | 40PUA2.25S | 40PUW2.25S | 0.25 | Single | Capacitor Run | 3 | |
| 40PU2.25 | 40PUA2.25 | 40PUW2.25 | 0.25 | Three | D.O.L. | 3 |

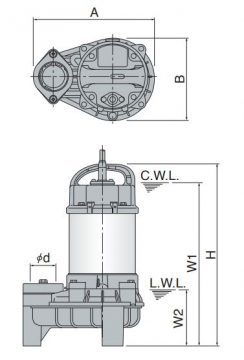

TSURUMI 40PU Series Submersible Pump Dimensions
TSURUMI PU Series TSURUMI 40PU2.15S,TSURUMI 40PU2.15,TSURUMI 40PU2.25S,TSURUMI 40PU2.25
| MODEL | d | A | B | H | W1 | W2 |
| 40PU2.15S | 40 | 225 | 154 | 377 | 340 | 105 |
| 40PU2.15 | 40 | 225 | 154 | 377 | 340 | 105 |
| 40PU2.25S | 40 | 236 | 162 | 360 | 325 | 110 |
| 40PU2.25 | 40 | 236 | 162 | 349 | 310 | 110 |
