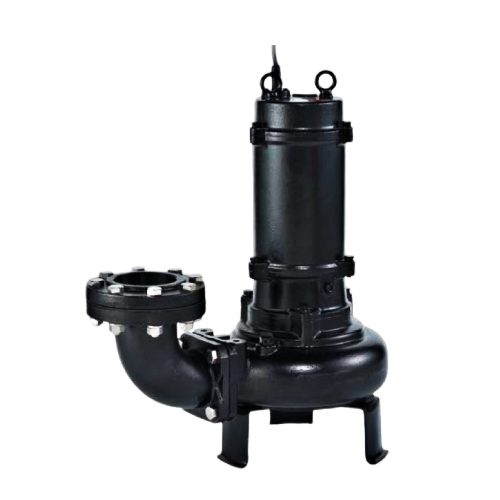

Submersible Pump Tsurumi 80C Series
Tsurumi pump 80C Series The C-series in corporates a cutter mechanism consisting of a tungsten carbide tipped channel impeller and a saw-tooth suction cover surface hardened.The cutter mechanism cuts fibrous materials to small pieces permitting clog-free pumping.
Submersible Pump Tsurumi 80C Series
Submersible Pump TSURUMI 80C Series
TSURUMI : Submersible Pumps
Sewage & Wastewater
Led by aruguably the best cutter pump on the market today, our powerful and versatile sewage pumps confirm Tsurumi’s commitment to this growing market segment. Through the use of an adapter, our pumps are compatible with guide rail systems making pump replacement quick and easy while saving you time and money on entire rail systems.
Durable and compact. From our powerful sand and trash handling pumps to our efficient dewatering and residue/utility pumps, Tsurumi can meet your applications.
Let us assist you in choosing the correct model that will handle your needs and save you time and money.
A serrated suction cover is used in combination with a tungsten carbide tip impeller ensuring that fibrous foreign matter is cut up, and sewage is transferred without clogging.
80C Series Features
Single and multi-vane cast iron impellers with tungsten carbide tips
- Serrated suction cover is field replaceable/adjustable
- Built-in thermal protector prevents motor failure due to overloading or accidental run-dry conditions.
- Handles residential, commercial, and indiustrial sewage
- Ideal for poultry, dairy. hog, and fish waste processing
- Suitable for problem sump applications with unpredictable solids incursion found in schools, hospitals, industrial laundries
- High head capabilities available on certain models
TSURUMI 80C Series Submersible Pump Specifications
TSURUMI 80C21.5,TSURUMI 80C22.2-CR,TSURUMI 80C23.7-CR,TSURUMI 80C25.5-CR,TSURUMI 80C27.5-CR,TSURUMI 80C211-CR,TSURUMI 80C215-CR
| Model | Standard Model | Automatic Model | Auto-Alternation | Motor output | Phase | Starting Method | |||
| Free Standing | Guide Rail Fitting | Free Standing | Guide Rail Fitting | Free Standing | Guide Rail Fitting | kW. | |||
| TSURUMI 80C | 80C21.5 | TOS80C21.5 | 80CA21.5 | TOS80CA21.5 | 80CW21.5 | TOS80CW21.5 | 1.5 | Three | D.O.L. |
| 80C22.2-CR | TOS80C22.2-CR | 2.2 | Three | D.O.L. | |||||
| 80C23.7-CR | TOS80C23.7-CR | 3.7 | Three | D.O.L. | |||||
| 80C25.5-CR | TOS80C25.5-CR | 5.5 | Three | D.O.L. | |||||
| 80C27.5-CR | TOS80C27.5-CR | 7.5 | Three | D.O.L. | |||||
| 80C211-CR | TOS80C211-CR | 11 | Three | D.O.L. | |||||
| 80C215-CR | TOS80C215-CR | 15 | Three | D.O.L. | |||||

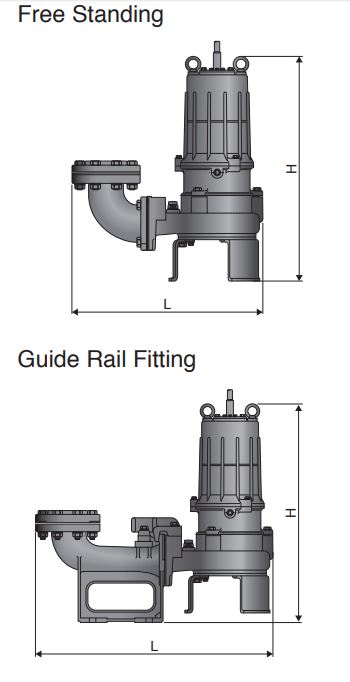

TSURUMI 80C Series Submersible Pump Dimensions
TSURUMI 80C21.5,TSURUMI 80C22.2-CR,TSURUMI 80C23.7-CR,TSURUMI 80C25.5-CR,TSURUMI 80C27.5-CR,TSURUMI 80C211-CR,TSURUMI 80C215-CR
| Model | Dimensions LxH mm. | Dry Weight (kg.) | สายไฟ | ||||||
| Standard Model | Auto&Auto-alternation Model | Standard Model | Auto&Auto -Alternation Model | ||||||
| Free Standing | Guide Rail Fitting | Free Standing | Guide Rail Fitting | Free standing | Guide Rail Fitting | Free standing | Guide Rail Fitting | m. | |
| TSURUMI 80C21.5 | 446×536 | 668×586 | 485×630 | 707×680 | 36 | 34 | 40 | 38 | 6 |
| TSURUMI 80C22.2-CR | 519×611 | 693×640 | 70 | 64 | 10 | ||||
| TSURUMI 80C23.7-CR | 519×613 | 693×640 | 70 | 64 | 10 | ||||
| TSURUMI 80C25.5-CR | 615×879 | 788×877 | 120 | 106 | 10 | ||||
| TSURUMI 80C27.5-CR | 615×879 | 788×877 | 125 | 111 | 10 | ||||
| TSURUMI 80C211-CR | 615×927 | 788×925 | 147 | 133 | 10 | ||||
| TSURUMI 80C215-CR | 730×1086 | 937×1086 | 260 | 235 | 10 | ||||
