Sewage Pump VARISCO J Series

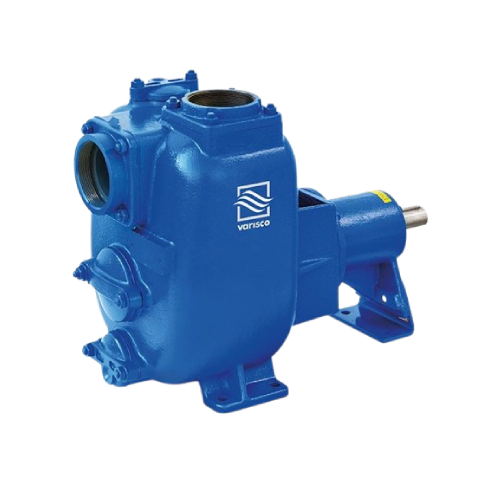

VARISCO J Series Centrifugal Pump

The VARISCO J Series is a self-priming centrifugal pump designed for easy inspection and maintenance. Its pump casing serves as both the reservoir and the pumping chamber, enabling fast initial priming without the need for additional priming systems. This simplifies installation and maintenance, making it ideal for applications where suction lift is limited—offering a clear advantage over submersible or vertical pumps that require impellers to be submerged.

Key Features

• Self-priming pump capable of rapid suction without auxiliary equipment
• Handles liquids with contaminants or suspended solids
• Easy-to-open pump casing for convenient inspection and maintenance
• Minimizes downtime and maintenance time
• Ideal for locations with limited suction lift capability

Applications

• General industrial use
• Paint spraying industry
• Food, wine, and processing industries
• Chemical and petrochemical industries
• Plastic recycling, chemical, paint, adhesive, and additive plants
• Steel, tanning, and paper industries
• Edible oil production and mechanical processing plants

  SPECIFICATIONS

  J Scries	Ports		Power	Rpm	Flow rate	Head	Power	Rpm	Flow rate	Head	ATEX”
  Model	ISO 228 (BSP)	ON	Kw-50Hz	rpm	Q max – mX’h	H max – m	Kw-60Hz	rpm	Q max • m3ih	Hmax-m	Zones 1 • 2
  J 1-110	1 1/2′	40	1.1	2900	22	16.5	1.6	3450	22	23	•
  J 1-160	1 1/2′	40	22	2900	20	30	4	3450	21	44	N/A
  J 1-180	1 1/2*	40	4	2903	25	35	6.5	3450	25	50	•
  J 2-100	2′	50	1.1	2900	30	14	1.5	3450	32	20	N/A
  J 2-120	r	50	22	2900	40	20	4	3450	44	30	•
  J 2-170	T	50	4	2903	44	36	7.5	3450	50	52	•
  J 2-180	r	50	5.5	2900	50	38	11	3450	50	50	•
  J 2-218	r	50	11	2900	46	60	18.5	3450	46	85
  J 3-100	3*	80	22	2900	60	14	3	3450	70	20	N/A
  J 3-140	r	80	4	2900	80	21	7.5	3450	83	30	•
  J 3-180	3*	80	7.5	2900	84	35	15	3450	85	50	•
  J 3-210	r	80	4	1450	95	16	5.5	1750	105	23	•
  J 3-225	3*	80	15	2900	96	56	N/A	N’A	N’A	N’A	•
  J 3-240	r	80	18.5	29C0	80	70	30	3450	80	100	•
  J 3-262	3′	80	22	29C0	96	80	45	3450	95	108	•
  J 3-305	3*	80	75	2900	105	110	N/A	N’A	N’A	N’A	•
  J 4-100	4″	100	4	29C0	100	15		3450	110	21	N/A
  J 4-160	4′	100	11	29CO	150	24	N/A	N/A	N’A	N/A	•
  J 4-220	4″	100	5.6	1450	130	16	11	1750	160	21	•
  J 4-225	4′	100	22	29C0	150	46	N/A	N’A	N’A	N/A	•
  J 4-250	4′	100	7.6	1450	160	20	15	1750	160	30	•
  J 4-316	4′	100	18.5	1450	170	30	30	1750	170	46	•
  J 6-250	/	150	11	1450	320	18	18.5	1750	340	26	•
  J 6-350	/	150	30	1450	310	35	N/A	N’A	N’A	NA	•
  J 6-400	/	150	45	1450	380	37	75	1750	420	54	•
  J 8-300	I	2 CO	22	1450	480	22	45	1750	510	32	•
  J 8-305	I	200	18.5	1450	380	20	30	1750	480	32	•
  J 10-305	1	250	30	1450	6C0	21	45	1750	600	34	•
  J 12-400	!	3CO	55	975	1200	17	90	1150	1290	27	NA
