Submersible Pump MITSUBISHI PSP-105S
Submersible Pump MITSUBISHI PSP-105S It is a high quality and efficient submersible pump. Then easy to use comes with a device to protect the coil from overheating. This effectively prevents the danger of overheating in the event that the impeller is locked. The pump is made of special ABS plastic material that is durable and highly impact resistant. Especially for use in conditions with high humidity or in a chemical environment, Its shape and lightweight make this pump easy to install and use.
Features
- Build-in automatic thermal protector to protect motor from burning even when impeller is being locked.
- High-grade ABS plastic structure for high impact resistance and lighter weight.
- Removable strainer for bath drainage dirty water and dry up water application.
Structure

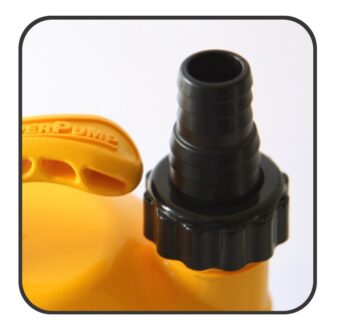

New design Hose Coupling 3/4″ and 1″ capable

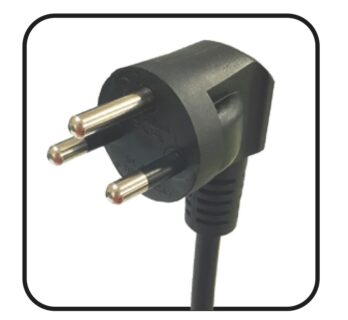

New design Cable plug with safety ground pin

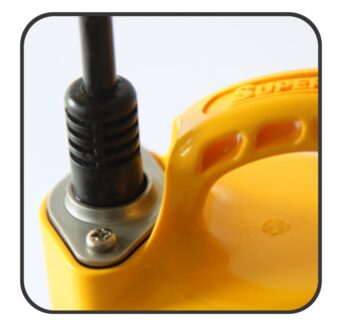

New design Cable Connection for more durability
Specifications
| Pumping Fluid |
Type of Fluid | Drainage waste water and Effluent | |
|---|---|---|---|
| pH 5-9 | |||
| Temperature | 0 ~ 40°C | ||
| Pump Sect. |
Structure | Impeller | Semi-open Type |
| Shaft Seal | Double Mechanical Seal with Oil Chamber | ||
| Lubricant | Shell Ondina Oil 32 (Medicinal white Oils) | ||
| Material | Frame Cover | ABS | |
| Casing | ABS | ||
| Impeller | Fiber-reinforced Plastic | ||
| M.Seal | Ceramic/ Carbon | ||
| Motor Sect. |
Motor | Dry Type Submersible Induction Motor (IP68) 2P. Insulation Class E |
|
| Supply | 10. 220V, 50Hz | ||
| Protector | Miniature Thermal Protector | ||
| Bearing | Double Shielded Ball Type | ||
| Material | Frame | Aluminum with special painting | |
| Bracket | Fiber-reinforced Plastic | ||
| Shaft | SUS303 | ||
| Cable | H05-WF-3C x 0.75mm2 x 3.5m | ||
| Discharge Bore | External Thread + Hose Coupling | ||
Construction Characteristics

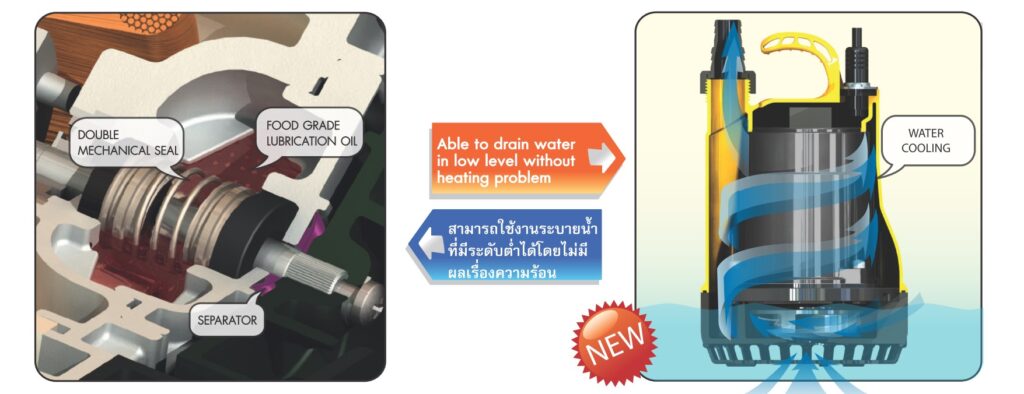

Equipped with separator and double mechanical seal in food grade lubricat oil for KOI friendly.
With special Paint on inside frame, to ensure corosion resistance even apply with salted water in fish pound.
Performance Specifications
| Model | Motor Output | Phase | Supply | Maximum | Weight (kg) |
Solid Passage (mm) |
|||
|---|---|---|---|---|---|---|---|---|---|
| Head (m) |
Flow Rate (l/min) |
Current (A) |
|||||||
| kW | Hp | ||||||||
| PSP-1O5S | 0.10 | 1/8 | Single | 220V, 50Hz | 7.8 | 80 | 1.1 | 3.2 | 3 |
Characteristic Curve

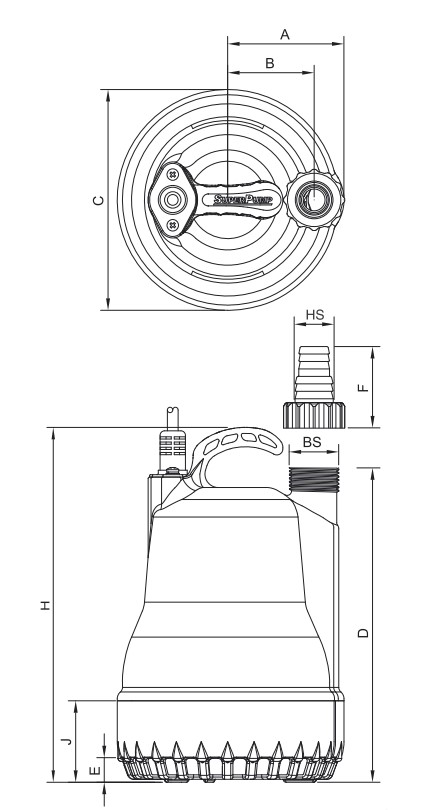

Dimensions
| HS | BS | A | B | C | D | E | F | J | H | |
|---|---|---|---|---|---|---|---|---|---|---|
| with strainer | 1" | 25 mm | 78 | 58 | 148 | 201 | 16.5 | 54.5 | 54.6 | 245.6 |
| without strainer | 1" | 25 mm | 78 | 58 | 148 | 187 | 2.5 | 54.5 | 40.6 | 231.6 |
