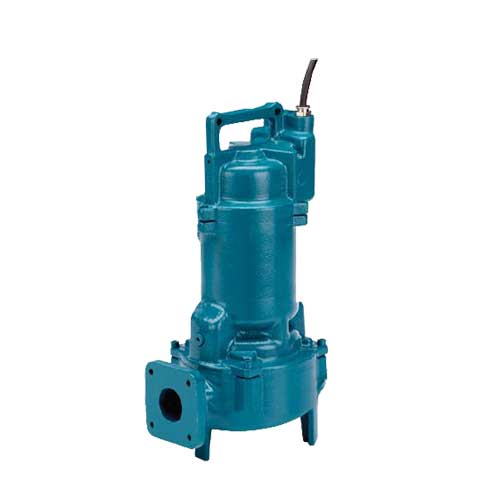

Submersible Pump CALPEDA GMG Series
Calpeda GMG Serie Submersible pump with built-in motor With coil insulation Resistant to high heat (Class H), suitable for pumping sewerage or industrial waste water drainage systems That has contaminated waste The pump is made of cast iron EN-GJL-250 grade.
Facebook
Twitter
Email
Print
Submersible Pump CALPEDA GMG Series
- materials Pump casing: cast iron EN-GJL-250 Motor casing: cast iron EN-GJL-250 Motor cover: cast iron EN-GJL-250
- Impeller: cast iron GS 400
- Shaft: stainless steel AISI 420B Lip seal made of nitrile
- Mechanical seal motor side: graphite/ceramic
- Mechanical seal pump side: silicon carbide/silicon carbide

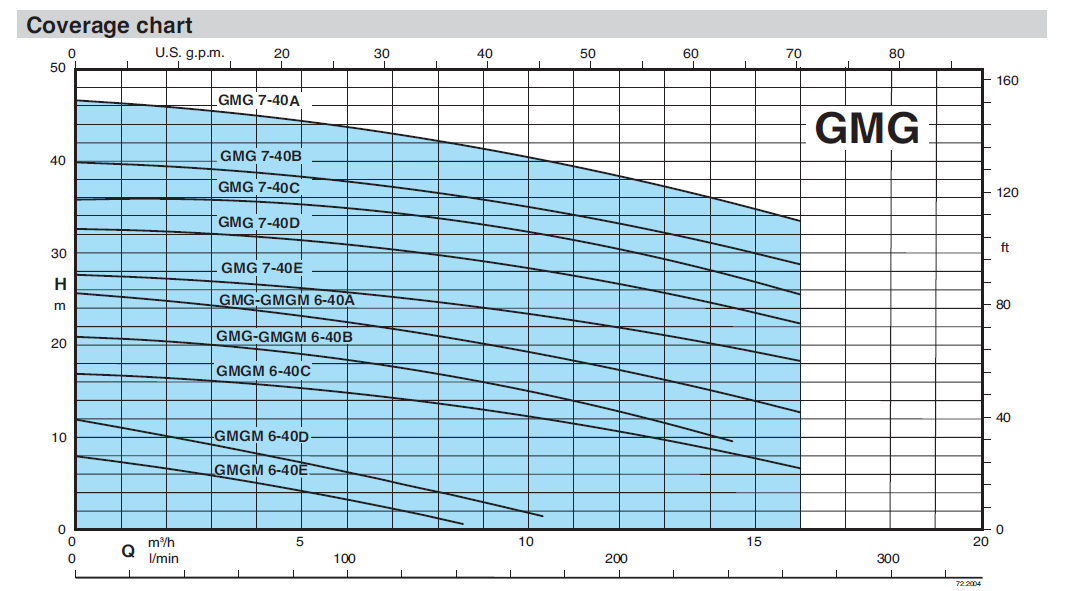

CALPEDA GMG Series Performance Curve
CALPEDA GMG Series Technical data
| Type | P2 | In | Power Supply | r.p.m | Starting | DN | Free passage | Thermal protector | Humidity probe | ATEX Eex |
| kW | A | mm | Ømm | |||||||
| GMGM 6-40 E/A | 1.1 | 7.5 | 1~ 230V | 2850 | D.O.L. | 40 | 6 | – | NO | |
| GMGM 6-40 D/A | 1.1 | 7.5 | 1~ 230V | 2850 | D.O.L. | 40 | 6 | – | NO | |
| GMGM 6-40 C | 1.1 | 7.5 | 1~ 230V | 2850 | D.O.L. | 40 | 6 | – | NO | |
| GMGM 6-40 B | 1.1 | 7.5 | 1~ 230V | 2850 | D.O.L. | 40 | 6 | – | NO | |
| GMG 6-40 B | 1.4 | 3.5 | 3~ 400V | 2850 | D.O.L. | 40 | 6 | NO | NO | ⁄ |
| GMGM 6-40 A | 1.8 | 10 | 1~ 230V | 2850 | D.O.L. | 40 | 6 | – | NO | |
| GMG 6-40 A | 2.4 | 5 | 3~ 400V | 2850 | D.O.L. | 40 | 7 | NO | NO | ⁄ |
| GMG 7-40E | 3.2 | 6.5 | 3~ 400V | 2850 | D.O.L. | 40 | 7 | NO | NO | ⁄ |
| GMG 7-40D | 3.2 | 6.5 |
3~ 400V |
2850 | D.O.L. | 40 | 7 | NO | NO | ⁄ |
| GMG 7-40C | 4.1 | 8.5 | 3~ 400/690V | 2850 | Y/Δ | 40 | 7 | – | – | ⁄ |
| GMG 7-40B | 5 | 11 | 3~ 400/690V | 2850 | Y/Δ | 40 | 7 | – | – | ⁄ |
| GMG 7-40A | 5 | 11 | 3~ 400/690V | 2850 | Y/Δ | 40 | 7 | – | – | ⁄ |

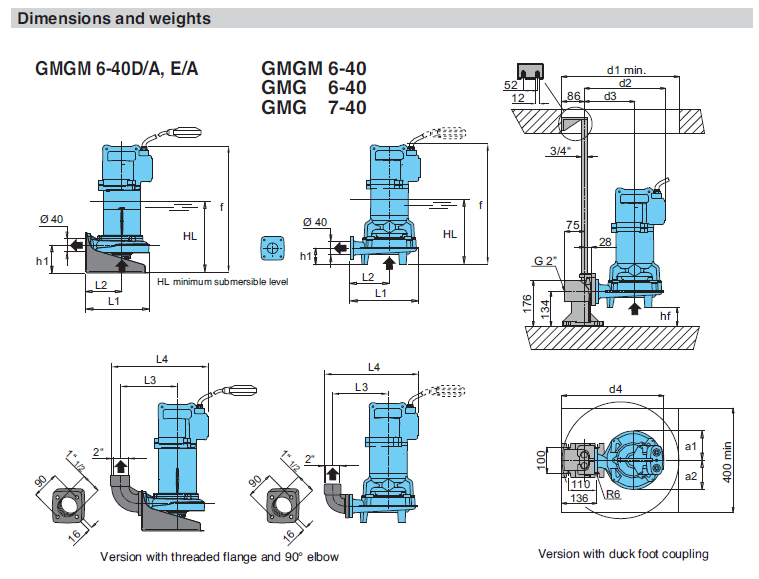

CALPEDA GMG Series Dimensions
[vc_row_inner][vc_column_inner][vc_single_image image=”747140″ img_size=”full”][/vc_column_inner][/vc_row_inner]| Type | Dimensions (mm) | Weight kg | ||||||||||||||
| Ø1 | f | HL | hf | h1 | a1 | a2 | d1 | d2 | d3 | d4 | L1 | L2 | L3 | L4 | ||
| GMGM 6-40 E/A | 40 | 441 | 283 | 77 | 106 | 104 | 104 | 450 | 297 | 178 | 392 | 256 | 138 | 154 | 272 | 30 |
| GMGM 6-40 D/A | ||||||||||||||||
| GMGM 6-40 C | 40 | 460 | 240 | 71 | 63 | 112 | 112 | 450 | 312 | 194 | 392 | 268 | 150 | 212 | 262 | 40 |
| GMGM 6-40 B | ||||||||||||||||
| GMG 6-40 B | ||||||||||||||||
| GMGM 6-40 A | ||||||||||||||||
| GMG 6-40 A | ||||||||||||||||
| GMG 7-40E | 40 | 458 | 315 | 10 | 124 | 121 | 121 | 450 | 327 | 189 | 413 | 288 | 150 | 230 | 405 | 45 |
| GMG 7-40D | ||||||||||||||||
| GMG 7-40C | 40 | 517 | 336 | 10 | 124 | 121 | 121 | 450 | 334 | 189 | 420 | 295 | 150 | 230 | 412 | 60 |
| GMG 7-40B | ||||||||||||||||
| GMG 7-40A | ||||||||||||||||
