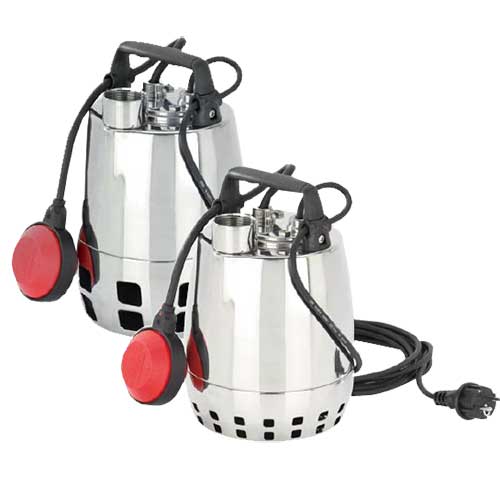

Submersible Pump CALPEDA GXR-GXV Series
Calpeda GXR, GXV single impeller submersible pumps are made of chrome-nickel stainless steel with vertical delivery ports. Water-cooled motor pumped through the motor jacket and external jacket, double shaft seal, high efficiency for a variety of applications, can support a maximum of 12,7 meters and a maximum flow rate of 220 liters / minute.
Submersible Pump CALPEDA GXR-GXV Series
Applications
Series GXR:
- For clean water containing solids up to 10 mm grain size.
- For draining rooms or or emptying tanks. – Extraction of water from ponds, streams or pits and for rainwater collection.
- For irrigation purposes.
Series GXV:
- For clean or slightly dirty water, containing solids up to 25 mm grain size.
- Particularly suitable for liquids with a high solid content For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60335-2-41.

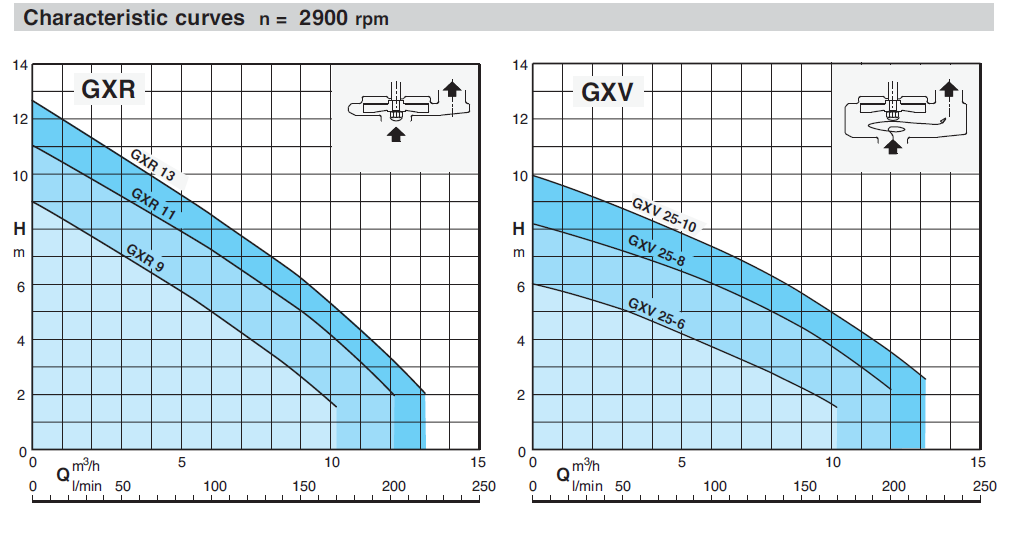

CALPEDA GXR-GXV Series Performance Curve
[vc_row_inner][vc_column_inner][vc_single_image image=”747143″ img_size=”full”][/vc_column_inner][/vc_row_inner]
Performance n=2900
| 3~ | 230V | 400V | 1~ | 230V | Capacitor | P1 | P2 | m3/h | 0 | 1.2 | 3 | 4.5 | 6 | 7.5 | 9 | 10.2 | 12 | 13.2 | ||
| A | A | A | uf | Vc | kW | kW | HP | l/min | 0 | 20 | 50 | 75 | 100 | 125 | 150 | 170 | 200 | 220 | ||
| GXR 9 | 1.6 | 0.9 | GXRM 9 | 2.3 | 8 | 450 | 0.5 | 0.25 | 0.33 | H m | 9 | 8.3 | 7 | 6 | 4.8 | 3.6 | 2.5 | 1.7 | ||
| GXR 11 | 2.3 | 1.3 | GXRM 11 | 3.2 | 12.5 | 450 | 0.7 | 0.37 | 0.5 | 11 | 10.4 | 9.5 | 8.5 | 7.5 | 6.5 | 5.3 | 4.2 | 2.2 | ||
| GXR 13 | 2.8 | 1.6 | GXRM 13 | 4.5 | 16 | 450 | 0.95 | 0.45 | 0.6 | 12.7 | 11.7 | 10.7 | 9.7 | 8.5 | 7.3 | 6.3 | 5.2 | 3.2 | 2 | |
| 3~ | 230V | 400V | 1~ | 230V | Capacitor | P1 | P2 | m3/h | 0 | 1.2 | 3 | 4.5 | 6 | 7.5 | 9 | 10.2 | 12 | 13.2 | ||
| A | A | A | uf | Vc | kW | kW | HP | l/min | 0 | 20 | 50 | 75 | 100 | 125 | 150 | 170 | 200 | 220 | ||
| GXV 25-6 | 1.6 | 0.9 | GXVM 25-6 | 2.3 | 8 | 450 | 0.5 | 0.25 | 0.33 | H m | 6 | 5.7 | 5.2 | 4.5 | 3.8 | 3 | 2.2 | 1.5 | ||
| GXV 25-8 | 2.3 | 1.3 | GXVM 25-8 | 3.2 | 12.5 | 450 | 0.7 | 0.37 | 0.5 | 8.2 | 7.8 | 7.2 | 6.7 | 6.1 | 5.4 | 4.5 | 3.6 | 2.2 | ||
| GXV 25-10 | 2.8 | 1.6 | GXVM 25-10 | 4.5 | 16 | 450 | 0.95 | 0.45 | 0.6 | 10 | 9.5 | 8.7 | 8 | 7.3 | 6.5 | 5.7 | 4.9 | 3.7 | 2.6 | |
CALPEDA GXR-GXV Series Technical data
| Pump type | Power supply cable | Float switch | ||||
| Cable material | Section | Length | Plug CEE 7 (VII) | Cable material | Section | |
| GXRM 9 | H05RN-F | 3G0.75 mm2 | 5 m | YES | H07RN-F | 3G1 mm2 |
| GXVM 25-6 | ||||||
| GXRM 11, 13 | H07RN-F | 3G1 mm2 | 5 m | YES | H07RN-F | 3G1 mm2 |
| GXVM 25-8, 25-10 | ||||||
| GXR 9 | H05RN-F | 4G0.75 mm2 | 5 m | NO | NO | – |
| GXV 25-6 | ||||||
| GXR 11, 13 | H07RN-F | 4G1 mm2 | 5 m | NO | NO | – |
| GXV 25-8, 25-10 | ||||||

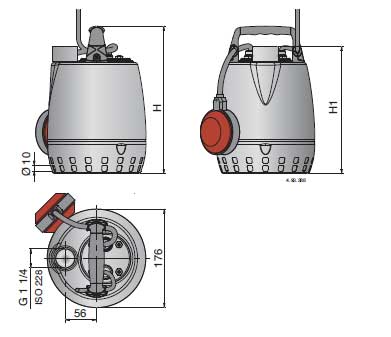

CALPEDA GXR-GXV Series Dimensions
[vc_row_inner][vc_column_inner][vc_single_image image=”747144″ img_size=”full”][/vc_column_inner][/vc_row_inner]
| Type | Dimensions (mm) | (1) kg | ||
| H | H1 | GXR | GXRM | |
| GXR9 – GXRM 9 | 265 | 230 | 5 | 5.2 |
| GXR 11- GXRM 11 | 300 | 265 | 6.2 | 6.5 |
| GXR 13- GXRM 13 | 300 | 265 | 6.7 | 7.2 |

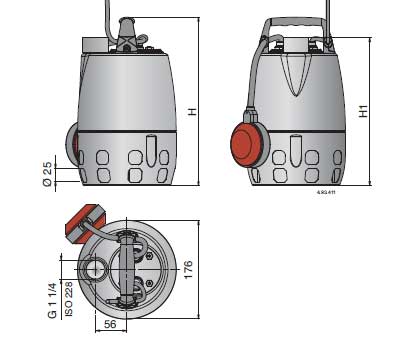

[vc_row_inner][vc_column_inner][vc_single_image image=”747145″ img_size=”full”][/vc_column_inner][/vc_row_inner]
| Type | Dimensions (mm) | (1) kg | ||
| H | H1 | GXV | GXVM | |
| GXV 25-6-GXVM 25-6 | 265 | 230 | 5 | 5.2 |
| GXV 25-8 -GXVM 25-8 | 300 | 265 | 6.2 | 6.5 |
| GXV 25-10 -GXVM 25-10 | 300 | 265 | 6.7 | 7.2 |
