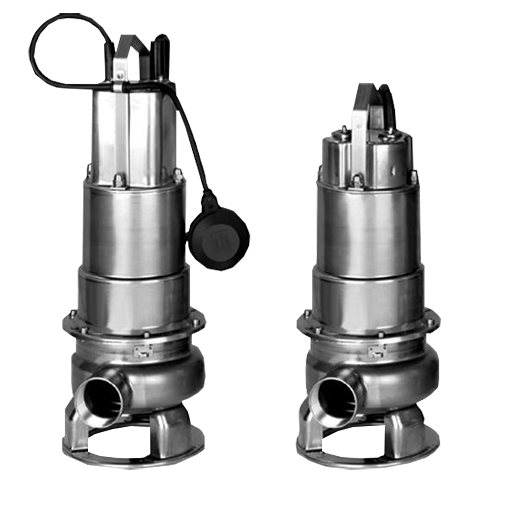

Submersible Pump CAT 2K Series
Submersible Pump CAT 2K Series are made from high-quality materials for durability and long-lasting performance. They come with powerful electric motors that operate quietly with low noise levels. They have overheat protection that automatically turns off the pump when the motor overheats.
Facebook
Twitter
Email
Print
Submersible Pump CAT 2K Series
FEATURES
- 304SSL construction offers corrosion resistance and increases
operating life over typical cast iron models. - Unique bulge formed components eliminates harsh radius and
welds and provides greater efficiency and durability. - Lubricated double mechanical seal offers dependable
performance with a variety of liquids. - Air filled, continuous-duty motors for reliable, long term
operation. - Single phase motor features permanent split capacitor
and thermal protection with automatic reset for added
protection and extend motor life. - Versatile, reliable operation whether fully or partially
submerged. - Multiple sizes from 1/2 to 2 hp offers application
flexibility. - Sealed float switch for automatic operation.
Quality Materials
- Casing is 304SSL for durability over traditional cast iron.\
- Semi-open impeller is 304SSL on all models for long life,
durability and economy. - Shaft is 304SSL for dependable, long life.
- Motor frame is 304SSL for dependability.
- Fasteners are all 304SS for durability.
- Shaft Seals are special blend NBR and FPM for
compatibility and long life. - Sealed Bearings for longer life.

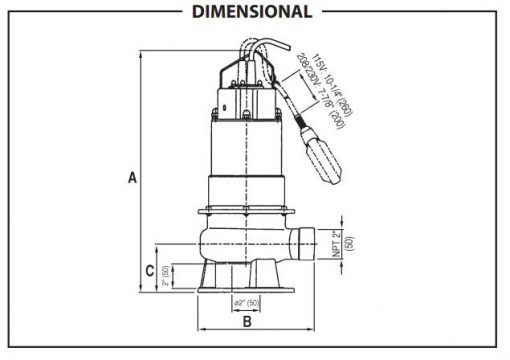

DIMENSIONS DATA

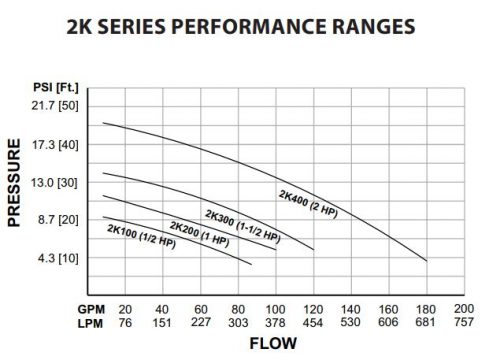

PERFORMANCE DATA
| MODEL | 2K Series |
| Flow Range | Up to 180 gpm |
| Pressure Range (up to 19.5 PSI) | 46 ft.Head |
| RPM | 3450 rpm |
| Discharge Fitting | 2″ NPT (F) |
| Horsepower | 1/2,1,1-1/2 HP |
| operation | Manual or Autometic |
| Maximum Temperature | Continuous 104°F |
| Intermittent 140°F | |
| Maximum Solids Diameter | 2″ |
AUTOMATIC MODELS
| MODEL | HP | PHASE | VOLTS | AMPS | PUMP-MOTOR DIMENSION (in) | |||
| A | B | C | Wt.(lbs) | |||||
| 2K100 | 1/2 | 1 | 115 | 8.3 | 21.63 | 9 | 3.88 | 36 |
| 2K102 | 1/2 | 1 | 230 | 4.4 | 19.13 | 9 | 3.88 | 36 |
| 2K200 | 1 | 1 | 115 | 11.8 | 22.81 | 9 | 3.88 | 41 |
| 2K202 | 1 | 1 | 230 | 6.4 | 22.81 | 9 | 3.88 | 44 |
| 2K302 | 1-1/2 | 1 | 230 | 7 | 20.25 | 9 | 3.88 | 45 |
MANUAL MODELS
| MODEL | HP | PHASE | VOLTS | AMPS | PUMP-MOTOR DIMENSION (in) | |||
| A | B | C | Wt.(lbs) | |||||
| 2K101 | 1/2 | 1 | 115 | 8.3 | 21.63 | 9 | 3.88 | 36 |
| 2K103 | 1/2 | 1 | 230 | 4.4 | 21.63 | 9 | 3.88 | 36 |
| 2K104 | 1/2 | 3 | 230 | 3 | 19.13 | 9 | 3.88 | 32 |
| 2K105 | 1/2 | 3 | 460 | 1.28 | 19.13 | 9 | 3.88 | 32 |
| 2K201 | 1 | 1 | 115 | 11.8 | 22.81 | 9 | 3.88 | 41 |
| 2K203 | 1 | 1 | 230 | 6.4 | 20.25 | 9 | 3.88 | 41 |
| 2K204 | 1 | 3 | 230 | 4.2 | 19.13 | 9 | 3.88 | 36 |
| 2K205 | 1 | 3 | 460 | 1.99 | 19.13 | 9 | 3.88 | 36 |
| 2K303 | 1-1/2 | 1 | 230 | 7 | 20.25 | 9 | 3.88 | 47 |
| 2K304 | 1-1/2 | 3 | 230 | 4.8 | 20.25 | 9 | 3.88 | 42 |
| 2K305 | 1-1/2 | 3 | 460 | 2.34 | 20.25 | 9 | 3.88 | 42 |
| 2K403 | 2 | 1 | 230 | 9.1 | 24 | 9 | 3.88 | 52 |
| 2K404 | 2 | 3 | 230 | 7.4 | 20.25 | 9 | 3.88 | 47 |
| 2K405 | 2 | 3 | 460 | 3.5 | 20.25 | 9 | 3.88 | 47 |
