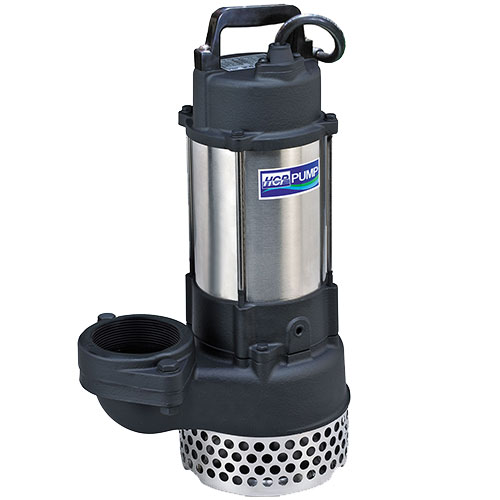

Submersible Pump HCP A Series
FEATURE
- A precision manufactured motor is achieved by utilizing the highest standard of quality control. All rotors adopt heat treatment methods for drive shaft assembling, and stator winding impregnated with varnish that is heat dried in an industrial oven.
- HCP’s professional assembly line, complimented with a synthesized production test, ensures the highest level of final pump quality.

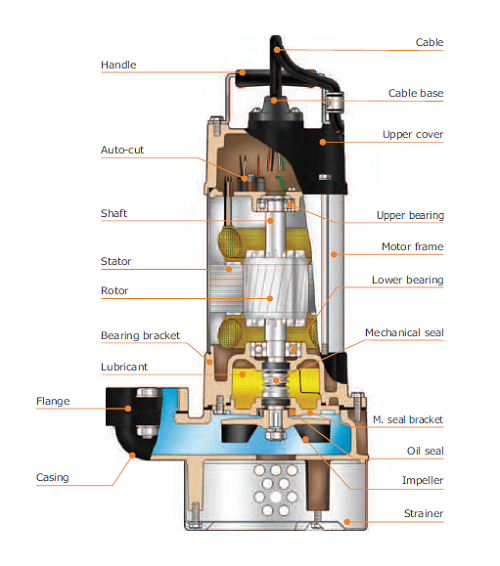

- Standard accessories include : cable with an epoxy resin sealed water resistant cable base, Auto-cut thermal motor protector, dual mechanical seals and lip seal design.
- The A-05A is an extremely practical pump, with a low temperature, oil filled motor and single seal design (CA/CE).
HCP A Series SPECIFICATIONS DATA
| Limits Of Use | Discharge (mm) | 50 – 80 – 100 |
| Liquid Temp. | 0-40°C (32-104°F) | |
| Applications | Wastewater Sewage and Drainage water |
|
| Submersion Depth | 30m (100 feet) | |
| Type | Frequency | 50Hz |
| Insulation | Class B | |
| Protection | IP68 | |
| Protector | Auto-cut (A-05A 30 none, A-05A/B/L 10 Overheat) |
|
| Bearing | Ball Type | |
| M.seal | Double M.seals (A-05A: Single M.seal) | |

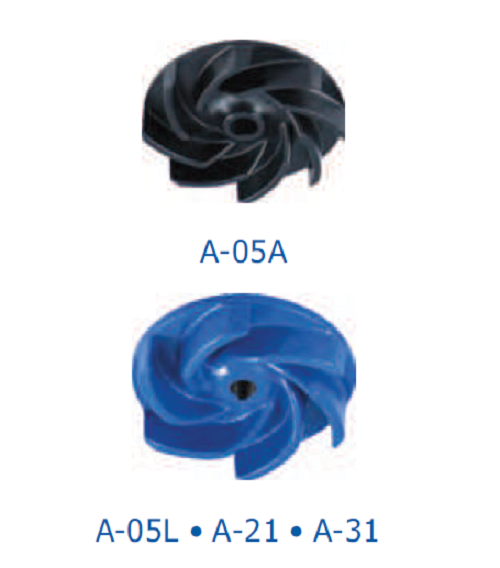

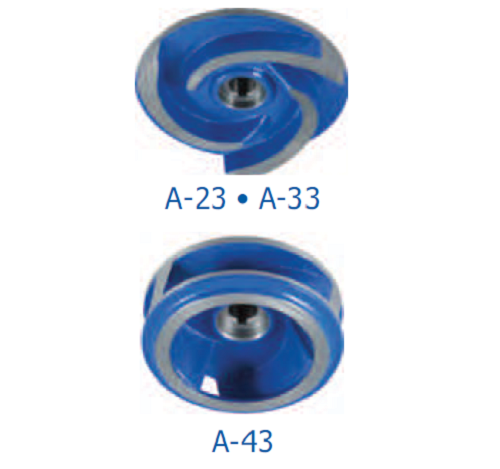

| Impeller | Semi-open (A-43: Enclosed-Channel) | |
| Material | Upper Cover | FC-200 |
| Motor Frame | SUS304 | |
| Main Shaft | SUS410 (2-3HP : SUS403) | |
| M.seal | Upper: Carbon/Ceramic Lower: Silicon/Silicon (A-05A: carbon/ceramic) |
|
| Casing | FC-200 | |
| Impeller | FC-200 (A-05A/B: PA) | |
| Cable | VCT or H07RN-F or SJOWISOW | |
| Optional | Pumps can be customized to fit specifications | |

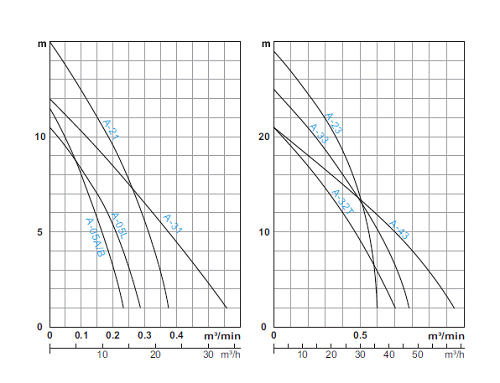

PERFORMANCE SPECIFICATIONS DATA HCP A Series
| Model | HP(kW) | Discharge Inch(mm) |
Phase Ø |
Start Method |
Head (m) |
Capacity | Solid Passage (mm) |
Weight (kg) | Dimension (mm) | ||||||
| A | B | C | D | ||||||||||||
| m³/min | m³/h | 10Ø | 30Ø | 10Ø | 30Ø | ||||||||||
| HCP A-05B | ½ (0.4) | 2″ (50) | 1 | Capacitor | 8 | 0.1 | 6 | 7.5 | 14 | 13 | 227 | 161 | 372 | 372 | |
| 3 | Direct | ||||||||||||||
| HCP A-05L | ½ (0.4) | 2″ (50) | 1 | Capacitor | 7 | 0.15 | 9 | 8 | 16 | 14 | 245 | 173 | 430 | 430 | |
| 3 | Direct | ||||||||||||||
| HCP A-21 | 1 (0.75) | 2″ (50) | 1 | Capacitor | 10 | 0.18 | 10.8 | 10 | 17 | 15 | 245 | 173 | 430 | 430 | |
| 3 | Direct | ||||||||||||||
| HCP A-31 | 1 (0.75) | 3″ (80) | 1 | Capacitor | 6.5 | 0.3 | 18 | 10 | 18 | 17 | 278 | 173 | 457 | 457 | |
| 3 | Direct | ||||||||||||||
| HCP A-32T | 2 (1.5) | 3″ (80) | 1 | Capacitor | 12 | 0.4 | 24 | 10.5 | 37 | 32 | 385 | 216 | 247 | 573 | 485 |
| 3 | Direct | ||||||||||||||
| HCP A-23 | 3 (2.2) | 2″ (50) | 1 | Capacitor | 24.5 | 0.2 | 12 | 10.5 | 38 | 32 | 280 | 216 | 216 | 572 | 493 |
| 3 | Direct | ||||||||||||||
| HCP A-33 | 3 (2.2) | 3″ (80) | 1 | Capacitor | 16 | 0.4 | 24 | 10.5 | 39 | 33 | 385 | 216 | 247 | 575 | 495 |
| 3 | Direct | ||||||||||||||
| HCP A-43 | 3 (2.2) | 4″ (100) | 1 | Capacitor | 10 | 0.7 | 42 | 10.5 | 44 | 39 | 385
|
246 | 216 | 575 | 495 |
| 3 | Direct | ||||||||||||||
| HCP A-50A | ½ (0.4) | 2″ (50) | 1 | Capacitor | 8 | 0.1 | 6 | 7.5 | 12 | 11 | 227 | 161 | 349 | 349 | |
| 3 | Direct | ||||||||||||||
