Submersible Pump HCP AG Series

Submersible Pump HCP AG Series

Civil engineering, dewatering for tunnel en gineering also for manhole sewer.
Dewatering fluid contain solid sediment.
Mobile use for contractors, installers and industry.

Category Wastewater Pump Tags hcp submersible pump, Submersible pump, ปั๊มจุ่ม, ปั๊มจุ่ม hcp, ปั๊มน้ำ, ปั๊มระบายน้ำเสีย, ปั๊มแช่, ปั๊มแช่ hcp

Submersible Pump HCP AG Series

FEATURES

Design for civil engineering, light weight for easy portability, double outer casing water cooling motor make it possible to run the pump to low water level.
Best waterproof structure, automatic rest motor pro tector and double mechanical seal made of silicon carbide. Durable and leakproof.
Compact, strong design and easy operation in any place.
Impeller made of high chrome alloy (HCR) steel with a hardness of 55-60 Rc. Harden and abrasion resis tant.

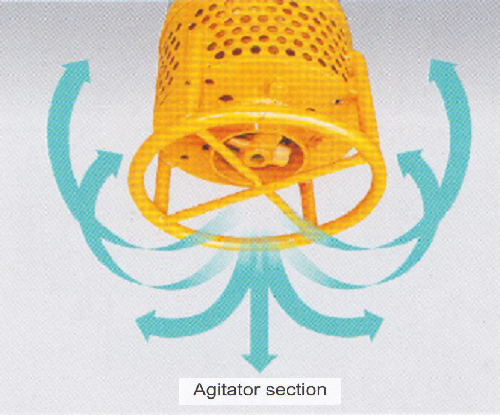

Equipped with a cast iron (FCD) agitator to create powerful stirring and pumping action for slurry.

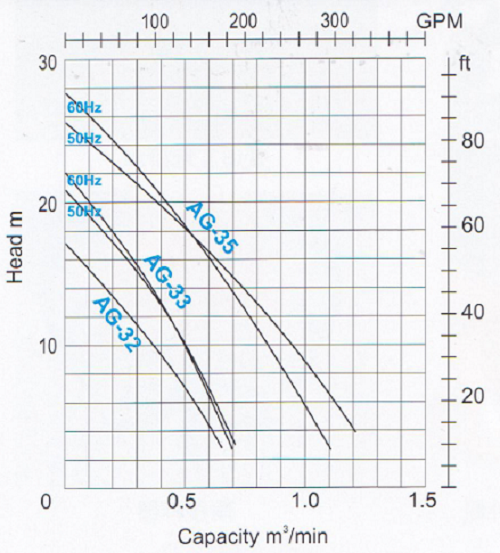

PERFORMANCE DATA

HCP AG Series Specifications

Model	Power HP(kW)	Disc. Inch(mm)	Phase Ø	Start Method	Head m	Capacity m³/min	Head feed	Capacity GMP	Weight kg (lb)	Solid Passage mm	Dimension (mm)
Model	Power HP(kW)	Disc. Inch(mm)	Phase Ø	Start Method	Head m	Capacity m³/min	Head feed	Capacity GMP	Weight kg (lb)	Solid Passage mm	Length	Width	Height
HCP AG-32	2(1.5)	3(80)	3Ø	D.O.L	9	0.4	30	100	42(92)	11	–	255	602
HCP AG-33	3(2.2)	3(80)	3Ø	D.O.L	13	0.4	45	100	44(97)	11	–	255	620
HCP AG-35	5(3.7)	3(80)	3Ø	D.O.L	18	0.5	60	120	48(108)	11	–	255	627
