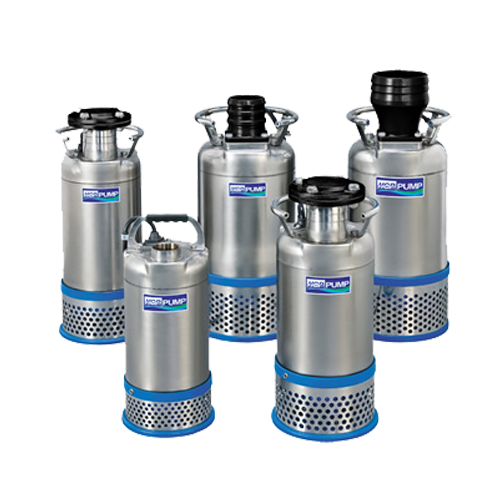

Submersible Pump HCP AS Series
Submersible Pump HCP AS Series
- Civil engineering, dewatering of tunneling and ground works, and for use in storm water sewers.
- Dewatering of fluids containing solid sediments.
- Ease of mobility for use by contractors, installers and service industries.
Facebook
Twitter
Email
Print
Submersible Pump HCP AS Series
FEATURE
- Designed for divil engineering applications, its easy portability, double outer casing and water cooling motor make it possible to run the pump to low water level.
- Epoxy Resin Cable with IP68 standard for waterproof structure, automatic rest motor protector, and double mechanical seal made of silicon carbide. Equipped with an AC motor protector, to further obtain the best insulated status. It is a very durable and abrasion resistant pump.
- Multi-impeller design with High Chrome Alloy steel (HiCr) impeller, wear plate and wear rings with a hardness 55-60 Rockwell. Its hardest and toughest impeller, among the construction pump, against abrasion, and meets the requirements from low to high head and small to big capacity.
- AS 1.5-7.5kW, equipped with Flange discharge connection. The outer cover is built with high strength stainless steel.

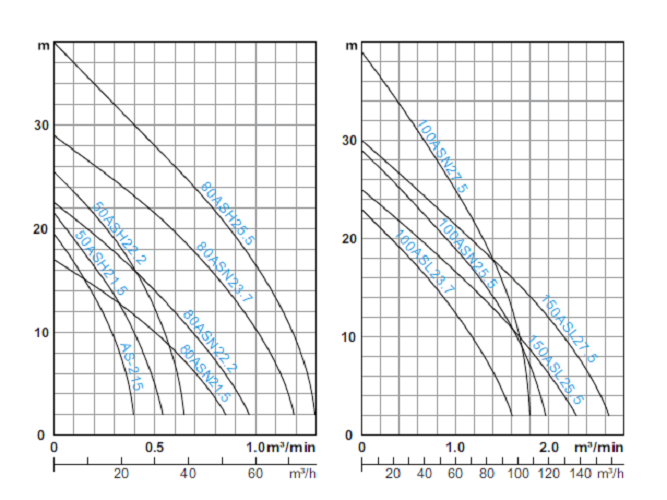

PERFORMANCE DATA HCP AS Series
SPECIFICATIONS DATA HCP AS Series
| Discharge (mm) | 50 • 80 • 100 • 150 | |
| Limits Of Use | Liquid Temp. | 0-40°C (32-104°F) |
| Applications | Construction sites • Basins dewatering | |
| Submersion Depth | 30m (100 feet) | |
| Type | Frequency | 50Hz |
| Motor | 2P (3000RPM) • Dry Motor | |
| Insulation | Class B | |
| Protection | IP68 | |
| Protector | Auto-cut | |
| Bearing | Ball Type | |
| M.seal | Double M.seals | |

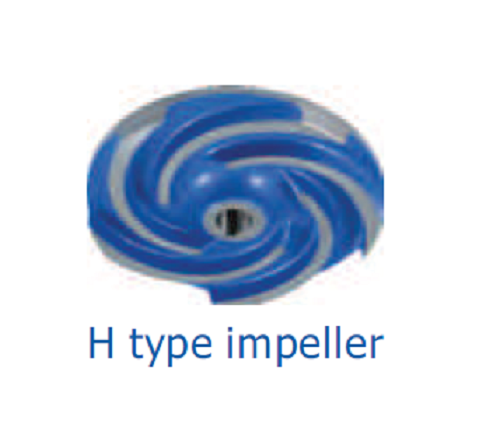

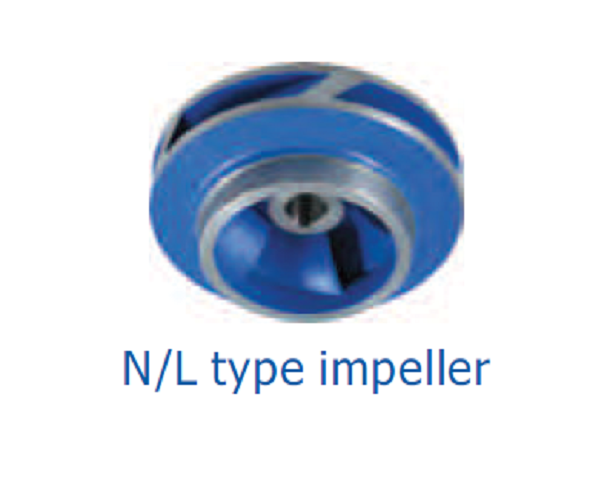

| Impeller | Semi-open (H) • Enclosed-channel(N/L) | |
| Material | Ouster Cover | SUS304 |
| Upper Cover | FC-200 | |
| Motor Frame | FC-200 (17-5HP: SUS304) | |
| Main Shaft | SUS410 (2-3HP : SUS403) | |
| M.seal | Upper: Carbon/Ceramic • Lower: Silicon Silicon | |
| Casing | FC-200 | |
| Impeller | HiCr | |
| Wear Ring/plate | HiCr | |
| Cable | VCT or H07RN-F or SJOWISOW | |
| Optional | Pumps can be customized to fit specifications | |
PERFORMANCE SPECIFICATIONS DATA HCP AS Series
| Model | HP(kW) | Discharge Inch(mm) |
Phase Ø |
Start Method |
Head (m) |
Capacity | Solid Passage (mm) |
Weight (kg) | Dimension (mm) | ||||||
| A | B | v | D | ||||||||||||
| m³/min | m³/h | 10Ø | 30Ø | 10Ø | 30Ø | ||||||||||

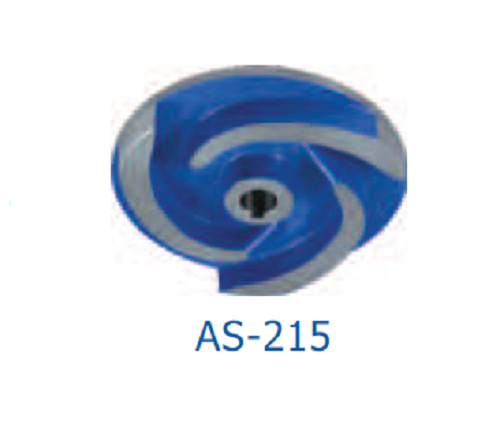

| AS-215 | ½ (1.1) | 2″ (50) | 1 | Capacitor | 13.5 | 0.2 | 12 | 7.5 | 28 | 24 | 210 | 482 | 423 | 370 | 429 |
| 3 | Direct | ||||||||||||||
| 50ASH21.5 | 2(1.5) | 2″ (50) | 1 | Capacitor | 15 | 0.25 | 15 | 10 | 40 | 36 | 235 | 511 | 466 | 448 | 403 |
| 3 | Direct | ||||||||||||||
| 50ASH22.2 | 3(2.2) | 2″ (50) | 1 | Capacitor | 19 | 0.3 | 18 | 10 | 44 | 39 | 235 | 541 | 466 | 478 | 403 |
| 3 | Direct | ||||||||||||||
| 80ASH21.5 | 2(1.5) | 3″ (80) | 1 | Capacitor | 10 | 0.5 | 30 | 10 | 40 | 36 | 235 | 511 | 466 | 448 | 403 |
| 3 | Direct | ||||||||||||||
| 80ASH22.2 | 3(2.2) | 3″ (80) | 3 | Direct | 14 | 0.5 | 30 | 10 | 45 | 39 | 235 | 541 | 466 | 478 | 403 |
| 80ASH23.7 | 5(3.7) | 3″ (80) | 3 | Direct | 21.5 | 0.5 | 30 | 10 | 44 | 235 | 496 | 433 | |||
| 80ASH25.5 | 7½(5.5) | 3″ (80) | 3 | Direct | 28 | 0.5 | 30 | 10 | 72 | 286 | 610 | 550 | |||
| 100ASH23.7 | 5(3.7) | 4″ (100) | 3 | Direct | 12.5 | 1.0 | 60 | 10 | 44 | 235 | 511 | 448 | |||
| 100ASH25.5 | 7½(5.5) | 4″ (100) | 3 | Direct | 19 | 1.0 | 60 | 10 | 75 | 286 | 610 | 550 | |||
| 100ASH27.5 | 10(7.5) | 4″ (100) | 3 | Direct | 25 | 1.0 | 60 | 10 | 80 | 286 | 610 | 550 | |||
| 150ASH25.5 | 7½(5.5) | 6″ (150) | 3 | Direct | 12 | 1.5 | 90 | 10 | 78 | 286 | 610 | 550 | |||
| 150ASH27.5 | 10(7.5) | 6″ (150) | 3 | Direct | 17 | 1.5 | 90 | 10 | 81 | 286 | 610 | 550 | |||
