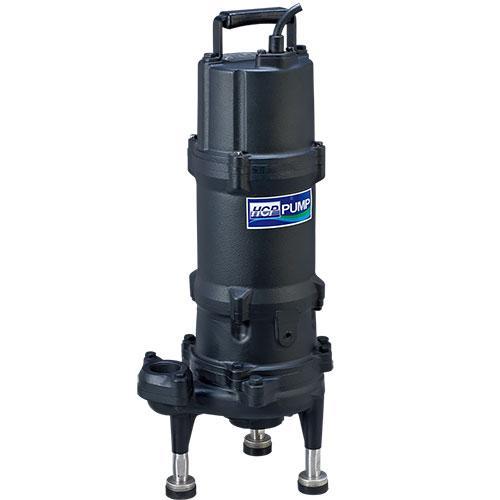

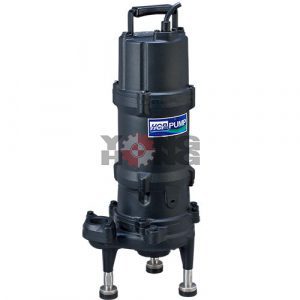

Submersible Pump HCP GF Series
Submersible Pump HCP GF Series
- Used in pressure sewage system.
- Drainage of wastewater from individual residences, apartment buildings, recreational developments, motels.
- Transferring wastewater of commercial buildings, industrial plants, wastewater sampling, small hospitals.
- Schools, federal, state and local parks, wastewater drainage.
- To transfer various wastewater and sewage.
Facebook
Twitter
Email
Print
Submersible Pump HCP GF Series

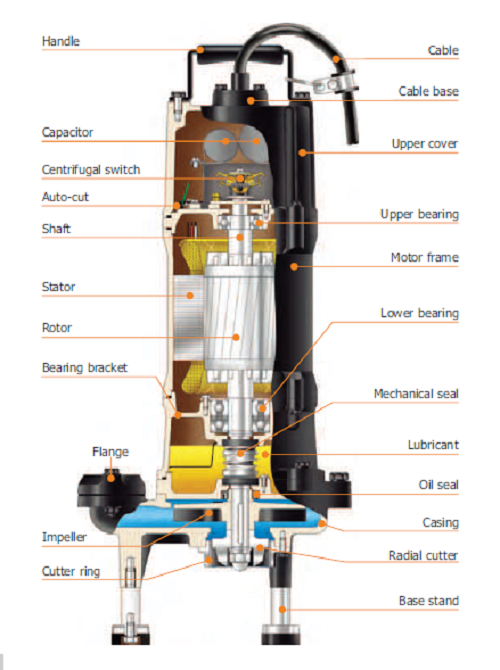

- Standard accessories include: epoxy resin cable base, dry motor, double mechanical seals, auto-cut protection, double ball bearing support shaft and rotor.
- Vortex impeller design prevents dogging by cutting up articles.
- Radial cutter and cutter ring : corrosion resistant material, hardened to 55-60 Rockwell C.
- Specific single phase design for starting torque, and its torque is five times stronger than General capacitor pump. The impeller can prevent from clogging when grinding the objectives.

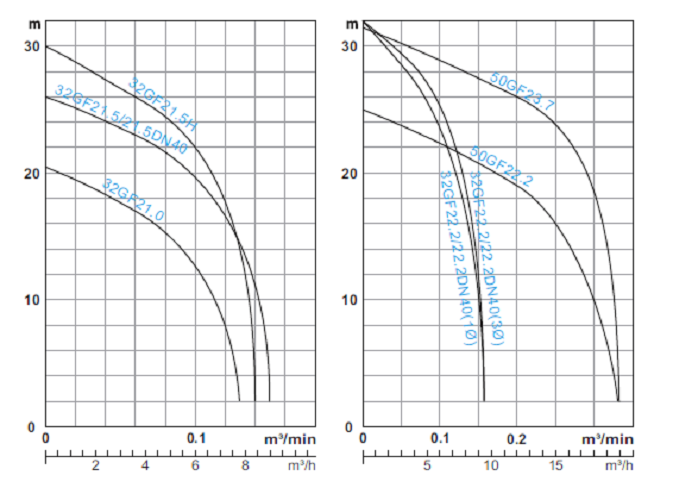

PERFORMANCE DATA HCP GF Series
PERFORMANCE SPECIFICATIONS DATA HCP GF Series
| Model | HP(kW) | Discharge Inch(mm) |
Phase Ø |
Start Method |
Head (m) |
Capacity | Solid Passage (mm) |
Weight (kg) | Dimension (mm) | ||||||
| A | B | C | D | ||||||||||||
| m³/min | m³/h | 10Ø | 30Ø | 1Ø | 3Ø | ||||||||||
| 32GF21.0 | ½ (1.0) | 1¼” (32) | 1 | Capacitor | 17 | 0.06 | 3.6 | 27 | 25 | 249 | 177 | 555 | 530 | ||
| 3 | Direct | ||||||||||||||
| 32GF21.5 | 2(1.5) | 1¼” (32) | 1 | Capacitor | 23 | 0.06 | 3.6 | 36 | 32 | 285 | 203 | 597 | 546 | ||
| 3 | Direct | ||||||||||||||
| 32GF21.5H | 2(1.5) | 1¼” (32) | 1 | Capacitor | 26 | 0.06 | 3.6 | 36 | 32 | 285 | 203 | 597 | 546 | ||
| 3 | Direct | ||||||||||||||
| 32GF21.5DN40 | 2(1.5) | 1¼” (32) | 1 | Capacitor | 23 | 0.06 | 3.6 | 36 | 32 | 255 | 203 | 596 | 546 | ||
| 3 | Direct | ||||||||||||||
| 32GF22.2 | 3(2.2) | 1¼” (32) | 1 | Capacitor | 28 | 0.06 | 3.6 | 38 | 35 | 285 | 203 | 630 | 546 | ||
| 3 | Direct | 29 | |||||||||||||
| 32GF22.2DN40 | 3 (2.2) | 1¼” (32) | 1 | Capacitor | 28 | 0.06 | 3.6 | 38 | 35 | 216 | 203 | 630 | 546 | ||
| 3 | Direct | 29 | |||||||||||||
| 50GF22.2 | 3 (2.2) | 2″ (50) | 3 | Direct | 19 | 0.2 | 12 | 51 | 393 | 216 | 226 | 616 | |||
| 50GF23.7 | 5(3.7) | 2″ (50) | 3 | Direct | 26 | 0.2 | 12 | 53 | 393 | 246 | 226 | 616 | |||
