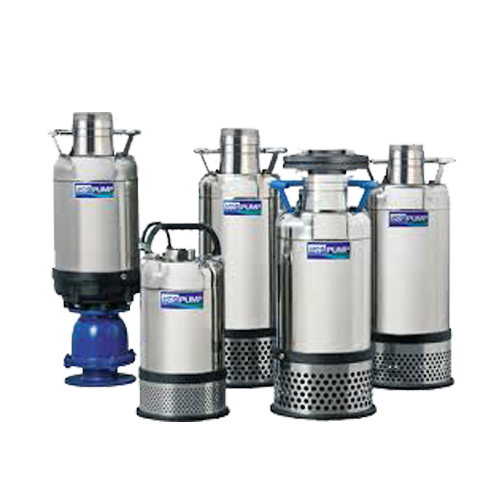

Submersible Pump HCP IC Series

Submersible Pump HCP IC Series

FEATURES

• The internal casting is treated with High solids Epoxy coating, which can improve the anti-corrosion and
  extend the product lifetime.
• Standard design, incorporating a dry motor with thermal Auto-cut Protector that prevents the motor from over heating.
  Equipped with a cast iron motor frame for a faster heat dissipation. As well as an abrasion resistant mechanical seal and an additional oil seal.
• Water cooled motor to ensure a long life in continuous and intermittent operation, with high efficiency and
  energy savings.
• An exceptional High-lift and suction impeller design, which allows for dewatering of underground
  or circulating water applications.
• For above or below surface water applications; the IC pump strainer can be easily removed and replaced with a check valve, which allows for dewatering up to max. 8m deep of underground water and water circulation applications. (W–Well Type)
• New casing cover, with metric thread bolt hole that is easier for valve and adapter connection.
• The chrome steel impeller has been adopted for IC-32B~610, with hardness of HRC 25~30; better
  anti-corrosion, and extended product lifetime.
• High solids Epoxy coating prolong metals from corrosion and oxidization

APPLICATIONS

• Aquiculture water supply and drainage.
• Water supply for agricultural irrigation systems and underground water pumping.
• Landscape, water feature and horticulture irrigation.
• Extraction of water from rivers, lakes and reservoirs.

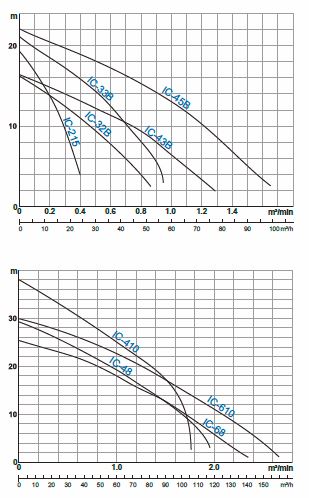

HCP IC Series SPECIFICATIONS

Note: Weight Without cable & Outlet, “3½” (90 mm.) optional by request.
